Digitus Network cabinet Unique series - 800x800 mm (WxD)
GTIN: 4016032377986

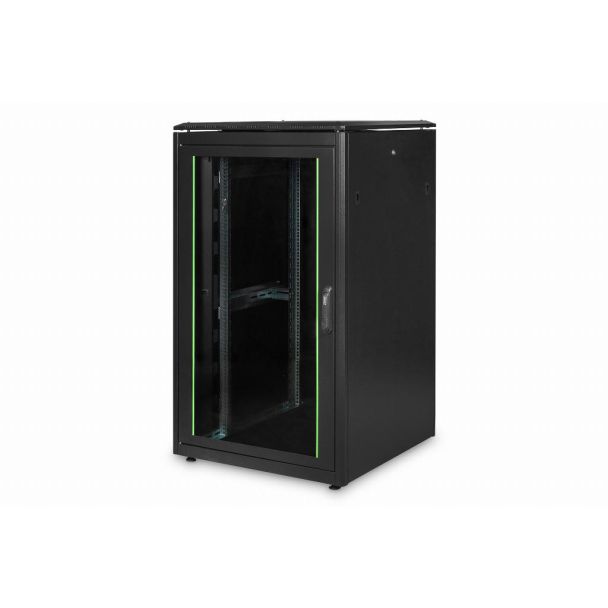

26U network rack, Unique 1342x800x800 mm, color black (RAL 9005)
The DIGITUS® Unique series has been manufactured, designed and developed for the high demands of IT infrastructure.
- Roof is prepared to accommodate a fan unit and an attached, removable cover
- Locking system with swivel lever handle on front door (prepared to accept profile half cylinder; adapter included)
- Slide-on cable inlet with foam rubber seal in the base
The network cabinets in the Unique series have been developed for particularly convenient and flexible network cabling. Brush-equipped inlets in the top and base (from 26U and 800 mm cabinet width), a slide-on inlet in the base chassis with foam rubber seal and rear brush strips above and below the rear door (from 26U) enable versatile use in a wide range of application scenarios. Vertical cable ducts with cover, installed next to the profile rails (from 800 mm enclosure width), round off the design. An offset, removable cover with ventilation slots ensures improved air circulation. This sits over a special construction for easy mounting of a fan module. Two pairs of galvanized 483 mm (19") profile rails, labelled with height units that can be read in both directions, are installed inside. They can be adjusted in depth and are connected to additional depth braces in the enclosure. Each enclosure is a robust steel construction made from sheet steel up to 1.5 mm thick. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Modular lockable and removable side panels and doors improve accessibility. Door hinges can be changed. Furthermore, the cabinets can be completely dismantled if required thanks to the demountable design.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-19 26U-8/8-B-1 |
| Ean | 4016032377986 |
| Modified on | 30-06-2018 |
| Product title | Digitus Network Rack Unique Series - 800x800 mm (WxD) |
| Long Product Name | 26U network rack, Unique 1342x800x800 mm, color black (RAL 9005) |
| Product specifications | FeaturesRack capacity* 26U Type* Freestanding rack Maximum weight capacity* 800 kg Product colour Black Back door construction Steel Front door construction Glass Side panel construction Steel Removable back door Yes Removable front door Yes Removable side panels Yes Side panels included Yes Front door key lock Yes Side panel key lock Yes Adjustable feet Yes International Protection (IP) code IP20 Weight & dimensionsSize (imperial) 48.3 cm (19") Weight & dimensionsWidth 800 mm Depth 800 mm Height 1342 mm Weight 81 kg Packaging dataNuts included Yes Screws included Yes Package width 850 mm Package depth 850 mm Package height 1392 mm Package volume 1005720 cm³ Package weight 82 kg Logistics dataUK Trade Tariff code 94032080 Country of origin Turkey Harmonized System (HS) code 85381000 |
| Essential qualities |
|
| Rack capacity | 26U |
| Type | Freestanding rack |
| Maximum weight capacity | 800 kg |
