Digitus Network cabinet Unique series - 800x800 mm (WxD)
GTIN: 4016032476467

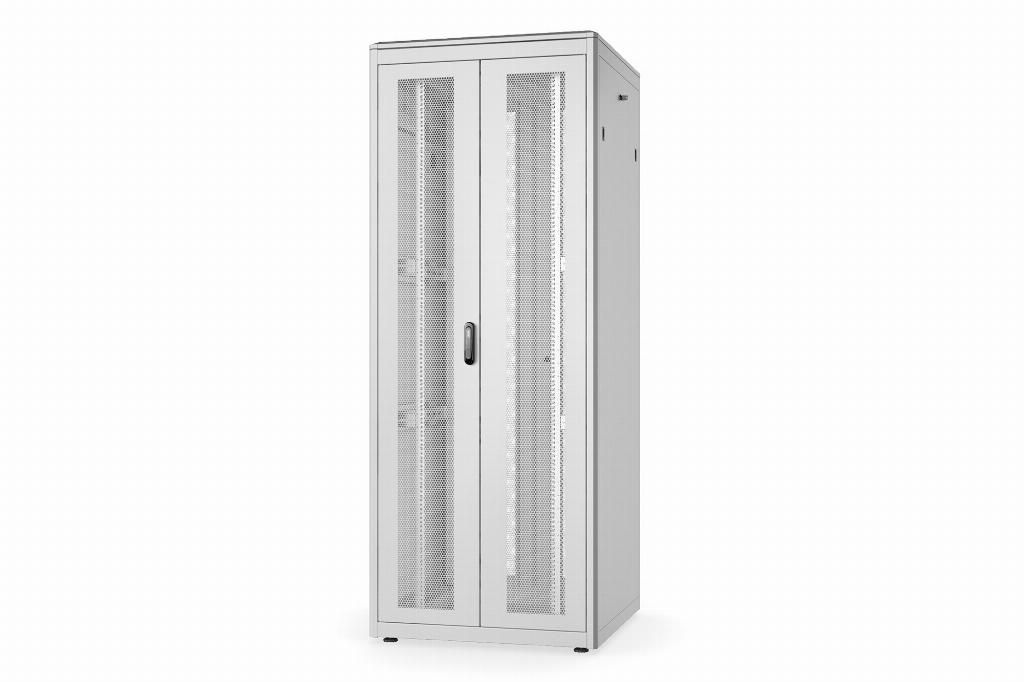

42U network cabinet, Unique, 2053x800x800 mm double perforated doors, grey
The DIGITUS® network cabinets of the Unique series combine maximum stability with optimum flexibility in cable management, for the high demands of modern IT infrastructure with a wide variety of application scenarios.
- Two-part steel front and rear door with 70% perforation for improved air circulation & waste heat
- Swivel handle with profile half-cylinder lock incl. type 333 key on the front and rear door
- High load capacity of the 483 mm (19") profile rails of up to 1200 kg
- Vertical cable ducts with cable routing aids and cover installed in the front panel
- Modular, openable base chassis with removable 19" blind panels
- Flexible cable routing options thanks to generous cable inlets with brushes in the roof and floor
- Roof is prepared to accommodate a fan unit and an attached, removable cover
- Ready for immediate use: Delivery is assembled (cabinet can be completely dismantled if required)
The network cabinets in the Unique series have been designed and produced for particularly convenient and flexible network cabling. Sophisticated optimizations offer market-compliant stability with maximum flexibility. A modular base chassis, which can be opened using screwed 483 mm (19") blind panels, offers sufficient space for cables of all kinds. In addition, there are side cable inlets with brushes at the top and bottom of the cabinet, as well as another at the rear of the base chassis. Generous vertical cable ducts with cable routing aids and cover, installed in the front (from 800 mm cabinet width), perfectly round off the versatile features of the network cabinet. Two pairs of cranked and galvanized 483 mm (19") profile rails, labelled with height units that can be read in opposite directions, are installed inside. They are infinitely adjustable and are connected to additional depth struts in the cabinet. Each enclosure is a robust steel construction made from sheet steel up to 1.5 mm thick. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Modular lockable and removable side panels and doors improve accessibility. Door hinges can be changed. Furthermore, the cabinets can be completely dismantled if required thanks to the demountable design.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-31118 |
| Ean | 4016032476467 |
| Modified on | 26-06-2021 |
| Product title | Digitus Network Rack Unique Series - 800x800 mm (WxD) |
| Long Product Name | 42U network cabinet, Unique, 2053x800x800 mm double perforated doors, grey |
| Product specifications | FeaturesRack capacity* 42U Type* Freestanding rack Maximum weight capacity* 800 kg Product colour Grey Material Steel Back door construction Steel/Perforated Front door construction Steel Side panel construction Steel Side panels included Yes Key lock Yes Back door key lock Yes Front door key lock Yes Side panel key lock Yes Rack rails Yes Adjustable mounting rails Yes Adjustable depth Yes Adjustable feet Yes Cable management Yes International Protection (IP) code IP20 Weight & dimensionsWidth 800 mm Weight & dimensionsDepth 800 mm Height 2053 mm Weight 154 kg Mounting depth (min) 56.3 cm Mounting depth (max) 74.3 cm Packaging dataNuts included Yes Number of nuts 36 Screws included Yes Number of screws 36 Package width 850 mm Package depth 850 mm Package height 2103 mm Package volume 1519420 cm³ Package weight 157 kg Logistics dataUK Trade Tariff code 94032080 Country of origin Turkey Harmonized System (HS) code 85381000 |
| Essential qualities |
|
| Rack capacity | 42U |
| Type | Freestanding rack |
| Maximum weight capacity | 800 kg |
