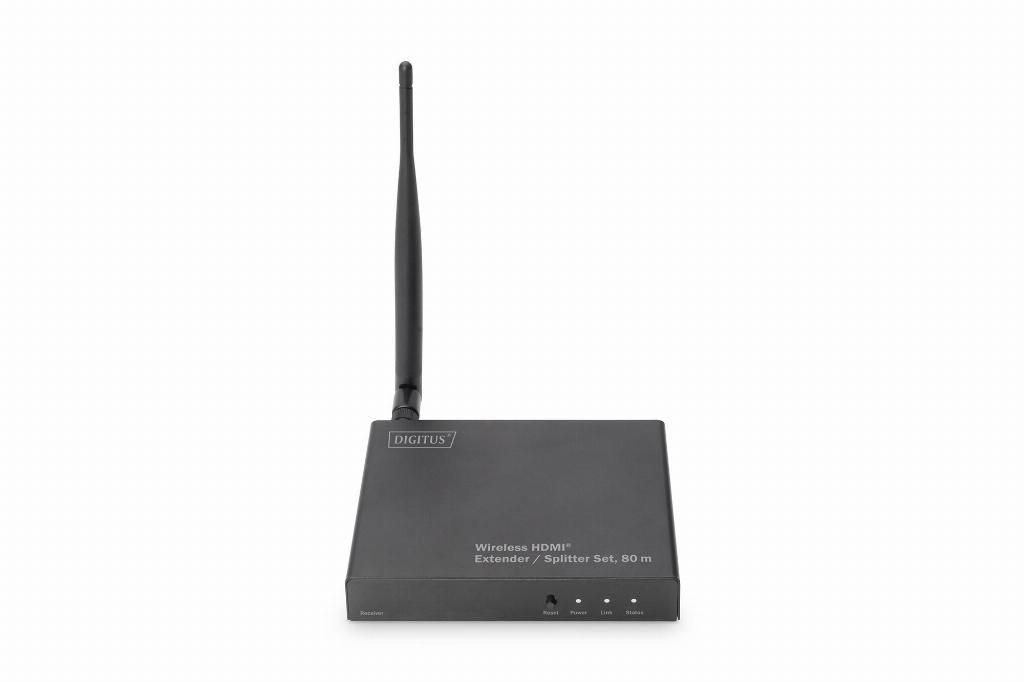

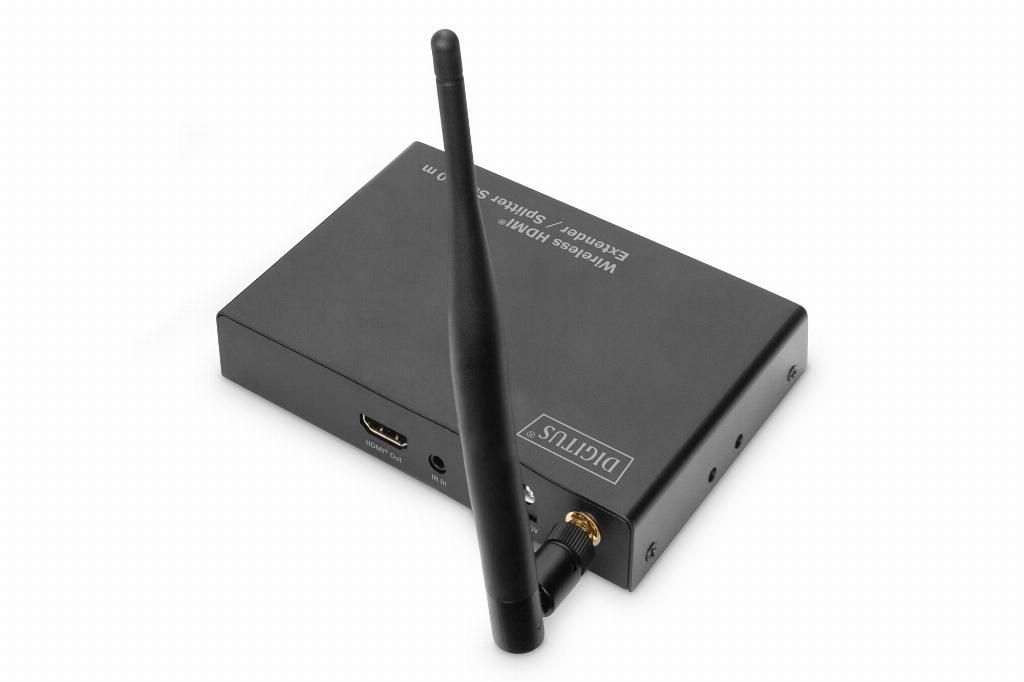

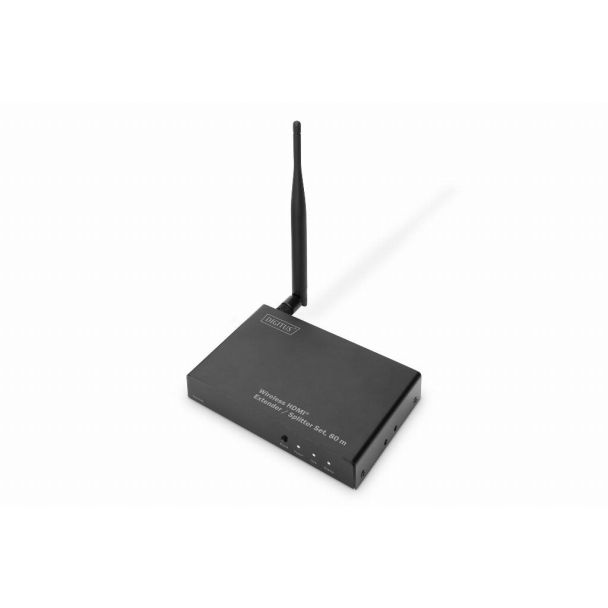

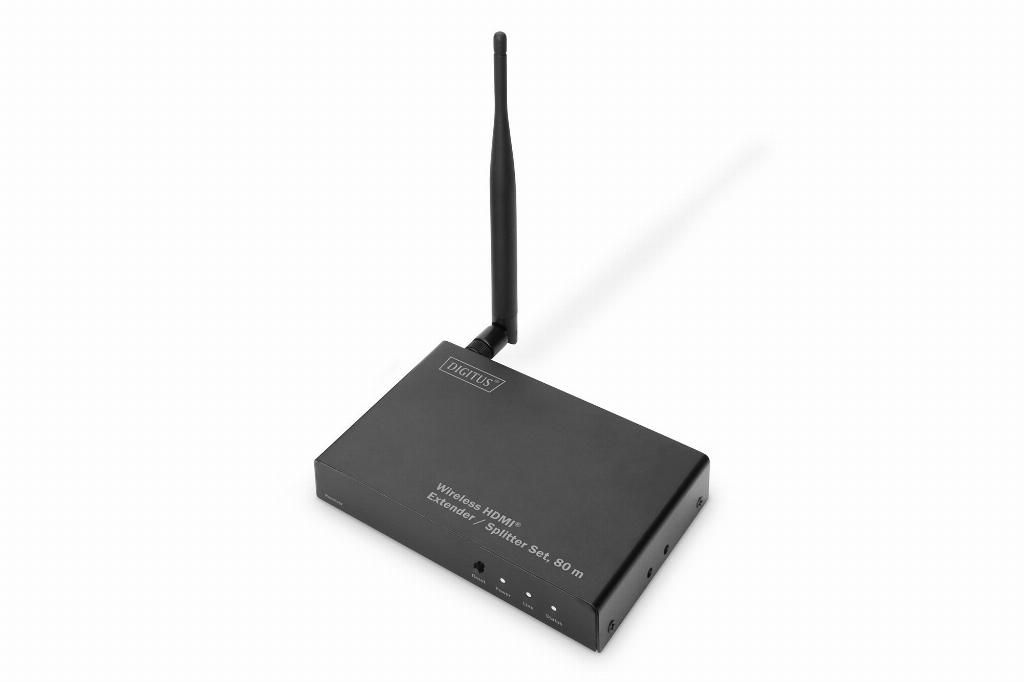

Digitus Receiver unit for Wireless HDMI® / Splitter Extender Set, 80 m
GTIN: 4016032460664
Digitus Receiver unit for Wireless HDMI® / Splitter Extender Set, 80 m, 1920 x 1080 pixels, AV receiver, 80 m, Wireless, Black
Extend your Wireless HDMI® Extender Set (DS-55314) by up to 4 receivers (multicast system)
- Set extension for the Wireless HDMI® Extender Set (DS-55314) to up to 4 receivers
- Supports multicast (point-to-multipoint) transmission for up to 4 receiver units
- IR input for forwarding the remote control signal to the source device
- Distribute your HDMI® signal on up to 4 TVs/monitors
- Plug and Play - no software or drivers needed
- Transmission of HDMI® signals with max. resolution of 1080p / 60 Hz
The additional receiver unit for the Wireless HDMI® Extender / Splitter Set supplements this multicast system with up to 4 receiver modules and receives your high-resolution HDMI® video and audio signals wirelessly at a distance of up to 80 m (1:1 connection, unobstructed view). With true plug-and-play, the extension operation is very simple. Just connect the additional receiver to the power supply and you can start immediately. In addition, you can also use the additional receiver module to control the devices at the location of the signal source with your existing infrared remote control. The extension module comes with an infrared connection cable. With this extension you can, for example, output the signal of a satellite receiver to another HDMI playback device. Furthermore, you can build a multicast system of up to 4 participants and thus simultaneously output high-resolution Full HD content to up to 4 other HDMI output devices, such as TV sets or projectors. Save the hassle of installing HDMI cables and use this easy-to-use Wireless HDMI Extender System.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DS-55315 |
| Ean | 4016032460664 |
| Modified on | 21-11-2019 |
| Product title | Digitus Receiver unit for Wireless HDMI® / Splitter Extender Set, 80 m |
| Long Product Name | Receiver Unit for DS-55314 Full HD, 1080p |

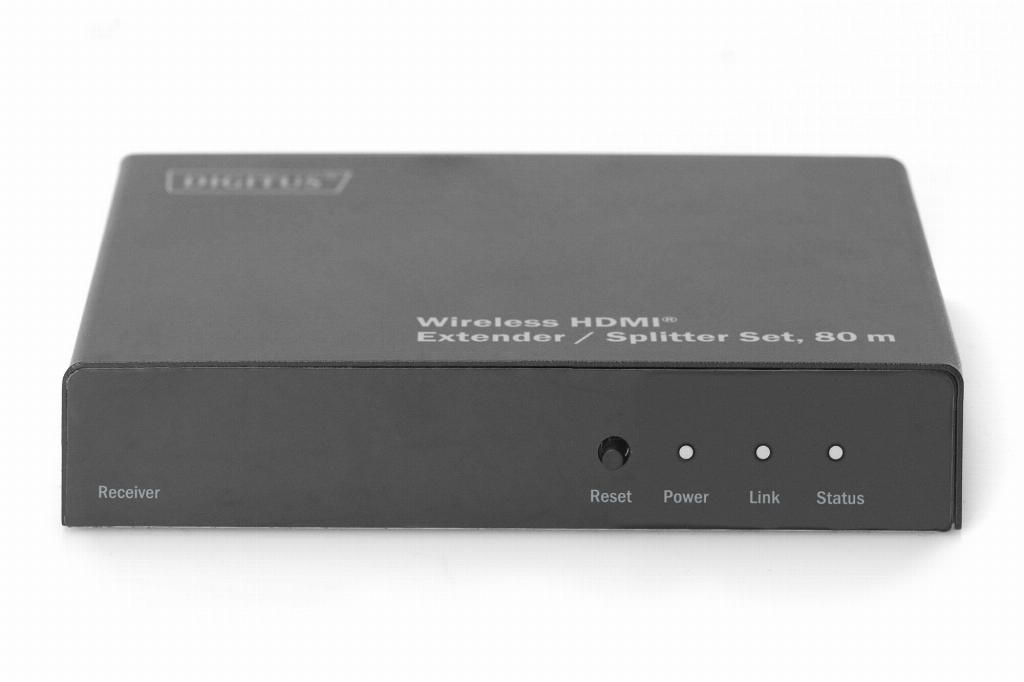

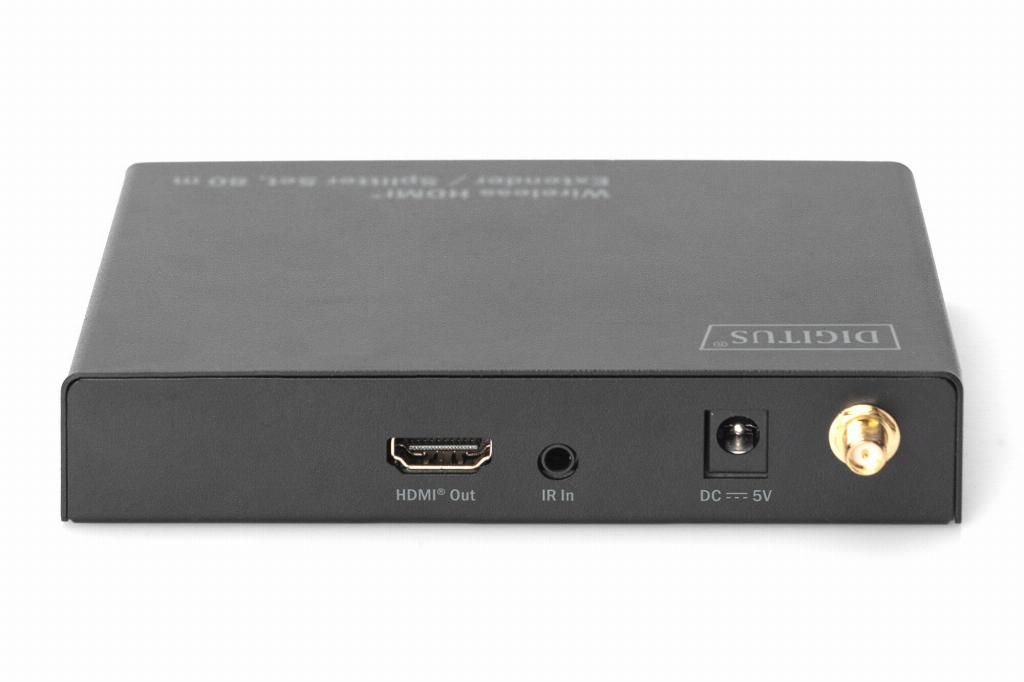

| Product specifications | FeaturesType* AV receiver Maximum resolution* 1920 x 1080 pixels Maximum transfer distance 80 m LED indicators Link, Power, Status Supported video modes 480i, 480p, 576i, 576p, 720p, 1080i, 1080p Bandwidth 6.75 Gbit/s Video compression formats H.264 Antenna type External Material Metal Colour depth 12 bit Plug and Play Yes HDCP version 1.3 Product colour Black Antennas quantity 1 Ports & interfacesConnectivity technology* Wireless Number of HDMI outputs 1 HDMI version 1.3 Remote (IR) output 1 PowerOperating voltage 5 V Output current 2 A Power consumption (receiver) (max) 3 W External power adapter Yes PowerPower over Ethernet (PoE) No Operational conditionsOperating temperature (T-T) 0 - 50 °C Operating relative humidity (H-H) 5 - 90% Weight & dimensionsWidth 100 mm Depth 130 mm Height 26 mm Weight 145 g Packaging dataPackage width 196 mm Package depth 243 mm Package height 60 mm Package weight 630 g Packaging contentAC adapter included Yes Cables included IR Mounting kit Yes Technical detailsCountry of origin China Package volume 2857.68 cm³ Logistics dataUK Trade Tariff code 85176200 |
