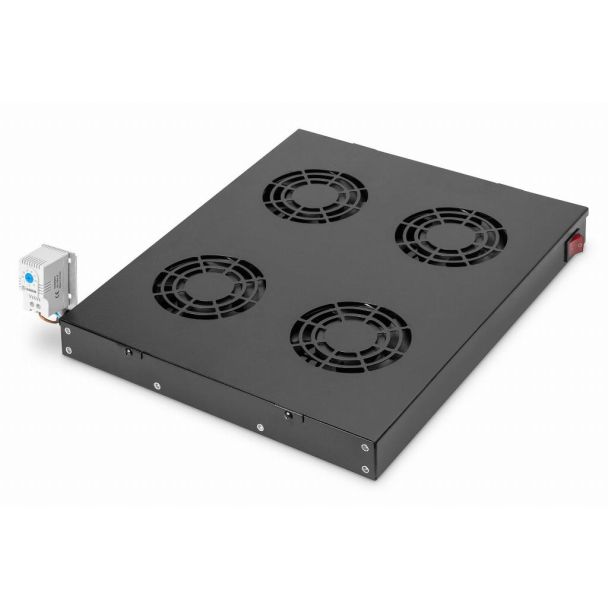

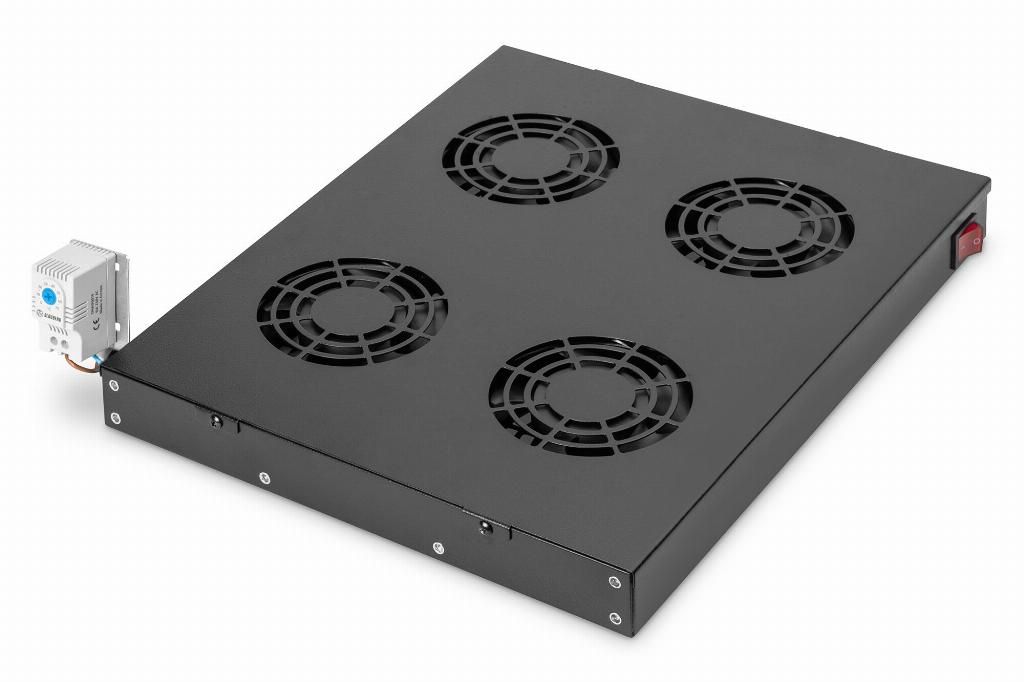

Digitus Ventilation Unit for variable 483 mm (19") installation
GTIN: 4016032189909
Ventilation unit for 483 mm (19") installation 4 fans, thermostat, switch, black (RAL 9005)
- For installation into 483 mm (19") unit

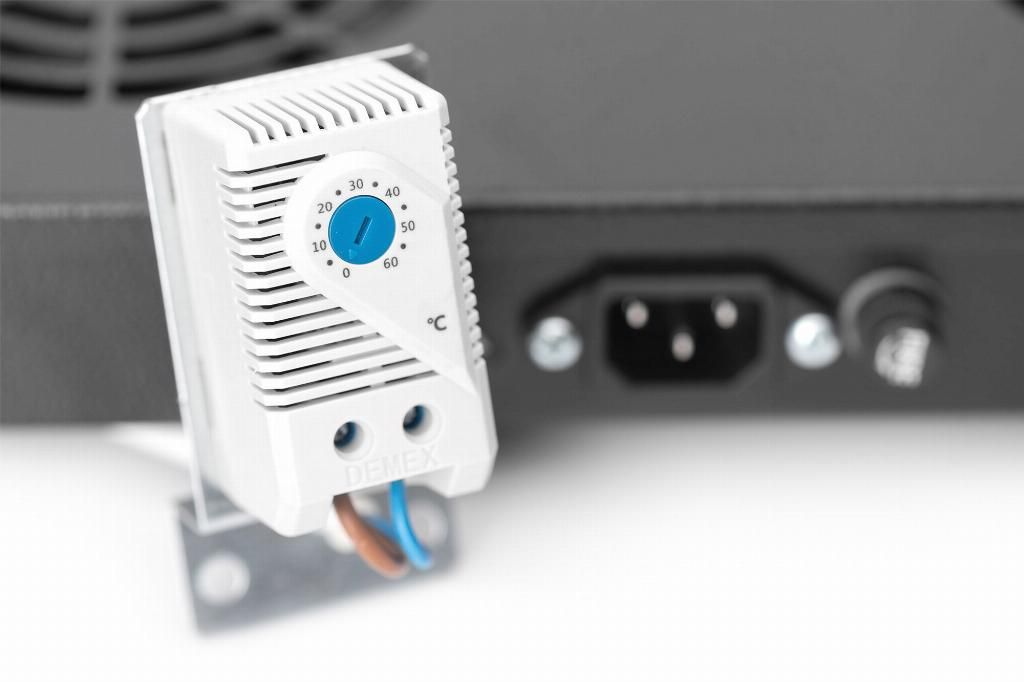

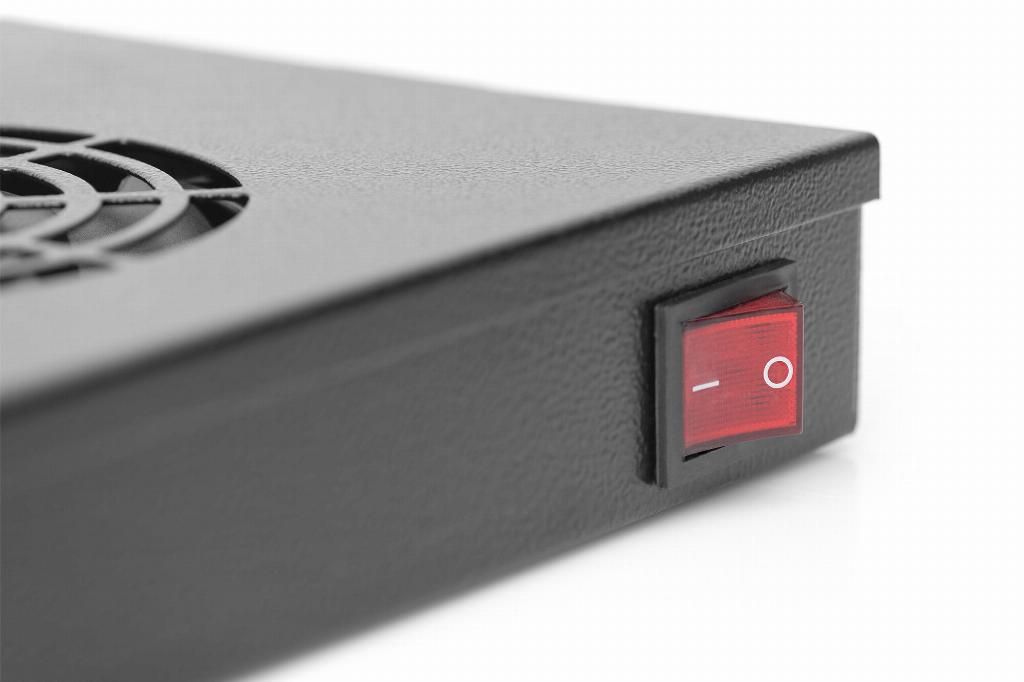

The Roof Ventilation Units are variable mountable into 483 mm (19") cabinets. Each fan unit comes with two sets of mounting brackets. With the standard set you can install your fan unit into any height unit space of your network- or server cabinet. The second bracket set makes the fan unit possible to be mounted into the roof of 483 mm (19") network- or server cabinets of the varioFLEX series. A switch as well as an adjustable thermostat provides best options for customizations. The model is available in standard color grey (RAL 7035) and black (RAL 9005), equipped with either two or four fans.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-19 FAN-4-HO-SW |
| Ean | 4016032189909 |
| Modified on | 04-04-2007 |
| Product title | Digitus Ventilation Unit for variable 483 mm (19") installation |
| Long Product Name | Ventilation unit for 483 mm (19") installation 4 fans, thermostat, switch, black (RAL 9005) |
| Product specifications | FeaturesType* Vented blank panel Product colour* Black Built-in fan Yes Number of fans 4 fan(s) Airflow 552 m³/h On/off switch Yes Cable length 1.8 m Frame type Open Country of origin Turkey PowerPower source AC Maximum input power 13.8 W AC input frequency 50 - 60 Hz Output voltage 220 - 240 V Weight & dimensionsWidth 483 mm Depth 354 mm Height 45 mm Packaging dataPackage width 510 mm Package depth 385 mm Package volume 11781 cm³ Package weight 5.98 kg Logistics dataUK Trade Tariff code 84145915 Harmonized System (HS) code 85389099 |
| Essential qualities |
|
| Type | Vented blank panel |
| Product colour | Black |
