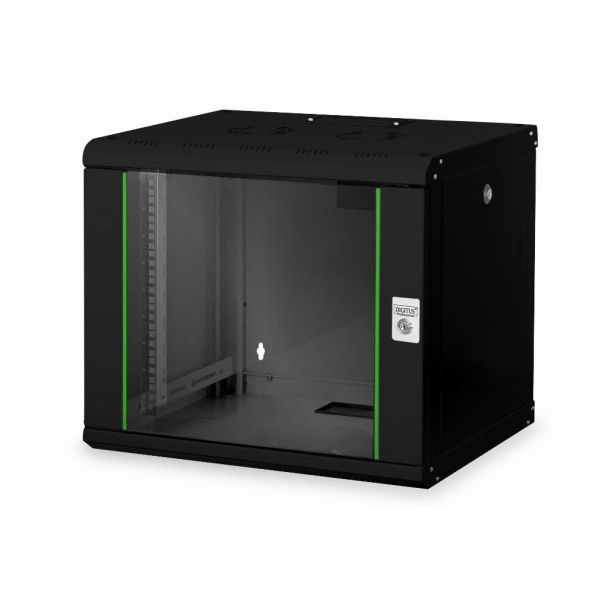

Digitus Wall Mounting Cabinet Unique Series - 600x450 mm (WxD)
GTIN: 4016032257653
9U wall mounting cabinet, Unique 509x600x450 mm, color black (RAL 9005)
The DIGITUS® Unique Series is made for high demand IT-Infrastructure Solutions - designed and developed on highest standard in Germany
- Robust steel construction for sturdy wall mounting
- Lockable safety-glass door with steel frame
- Side panels are lockable and removable
The network cabinets for wall installation from the Unique series were developed for especially convenient and flexible network cabling. There is a sliding cable inlet with foam rubber seal in the roof of each cabinet. The back wall and floor plate are equipped with pre-cut cable inlets with a plastic cover. To accommodate a fan module, the roof structure is also equipped with a pre-cut area. Two pair of galvanized 483 mm (19”) profile rails labeled with rack units readable in both directions are installed on the inside. Their depth can be adjusted. Each cabinet is made of up to 1.5 mm thick sheet steel. Coloring is done with electrostatic powder coating in the standard colors gray (RAL 7035) or jet black (RAL 9005). Removable and lockable side walls in a modular design as well as lockable and removable front door improve accessibility. The door hinges can be switched. Wall installation is accomplished in two easy work steps: The housing frame plate is bolted on the wall and then connected with the housing. With optionally available levelling feet or casters, the wall housings from the Unique series can also be used as a free-standing unit.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-19 09-U-SW |
| Ean | 4016032257653 |
| Modified on | 03-10-2015 |
| Product title | Digitus Wall Mounting Cabinet Unique Series - 600x450 mm (WxD) |
| Long Product Name | 9U wall mounting cabinet, Unique 509x600x450 mm, color black (RAL 9005) |
| Product specifications | FeaturesRack capacity* 9U Type* Wall mounted rack Maximum weight capacity* 100 kg Product colour Black Material Steel Front door construction Glass Side panels included Yes Key lock Yes Cooling type Active International Protection (IP) code IP20 Weight & dimensionsSize (imperial) 48.3 cm (19") Width 600 mm Weight & dimensionsDepth 450 mm Height 509 mm Packaging dataWall mounting kit Yes Package width 650 mm Package depth 500 mm Package volume 181675 cm³ Package weight 21 kg Logistics dataUK Trade Tariff code 94032080 Country of origin China Harmonized System (HS) code 85381000 |
| Essential qualities |
|
| Rack capacity | 9U |
| Type | Wall mounted rack |
| Maximum weight capacity | 100 kg |
