Digitus Wall Mounting Cabinets Dynamic Basic Series - 600x450 mm (WxD)
GTIN: 4016032221715,4016032221807

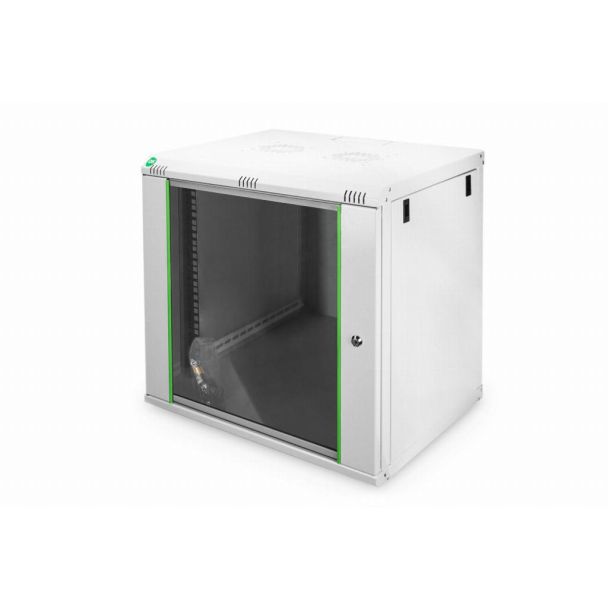

12U wall mounting cabinet, Dynamic 611x600x450 mm, color grey (RAL 7035)
- 450 mm depth provides a space saving installation
- Optimized air ventilation and exhaustion
- Lockable safety-glass door with steel frame
The network cabinets for wall installation from the Dynamic series were developed for easy and especially cost-optimized network expansion. The roof, floor and back wall of each cabinet are equipped with a pre-cut cable inlet. To accommodate a fan module, the roof structure is also equipped with a pre-cut area. Two pairs of galvanized 483 mm (19”) profile rails labeled with rack units readable in both directions are installed on the inside. Their depth can be adjusted. Each cabinet is made of up to 1.5 mm thick sheet steel. Coloring is done with electrostatic powder coating in the standard colors gray (RAL 7035) or jet black (RAL 9005). Removable side walls as well as lockable and removable front door improve accessibility. The door hinges can be switched. Wall installation is accomplished in two easy work steps: The mounting plate provided is bolted on the wall and then connected with the housing.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-19 12-U-EC |
| Ean | 4016032221715,4016032221807 |
| Modified on | 20-03-2008 |
| Product title | Digitus Wall Mounting Cabinets Dynamic Basic Series - 600x450 mm (WxD) |
| Long Product Name | 12U wall mounting cabinet, Dynamic 611x600x450 mm, color grey (RAL 7035) |
| Product specifications | FeaturesRack capacity* 12U Type* Wall mounted rack Maximum weight capacity* 60 kg Product colour Grey Front door construction Glass Side panels included Yes International Protection (IP) code IP20 Weight & dimensionsWidth 600 mm Depth 450 mm Packaging dataPackage width 480 mm Package depth 650 mm Package volume 193440 cm³ Package weight 20 kg Logistics dataUK Trade Tariff code 94032080 Country of origin China Harmonized System (HS) code 85381000 |
| Essential qualities |
|
| Rack capacity | 12U |
| Type | Wall mounted rack |
| Maximum weight capacity | 60 kg |
