Digitus Wall-mounted enclosure Dynamic Basic series - 600x600 mm (WxD)
GTIN: 4016032221760
16U wall mounting cabinet, Dynamic Basic 785x600x600 mm, color grey (RAL 7035)
- Optimum ventilation and air extraction

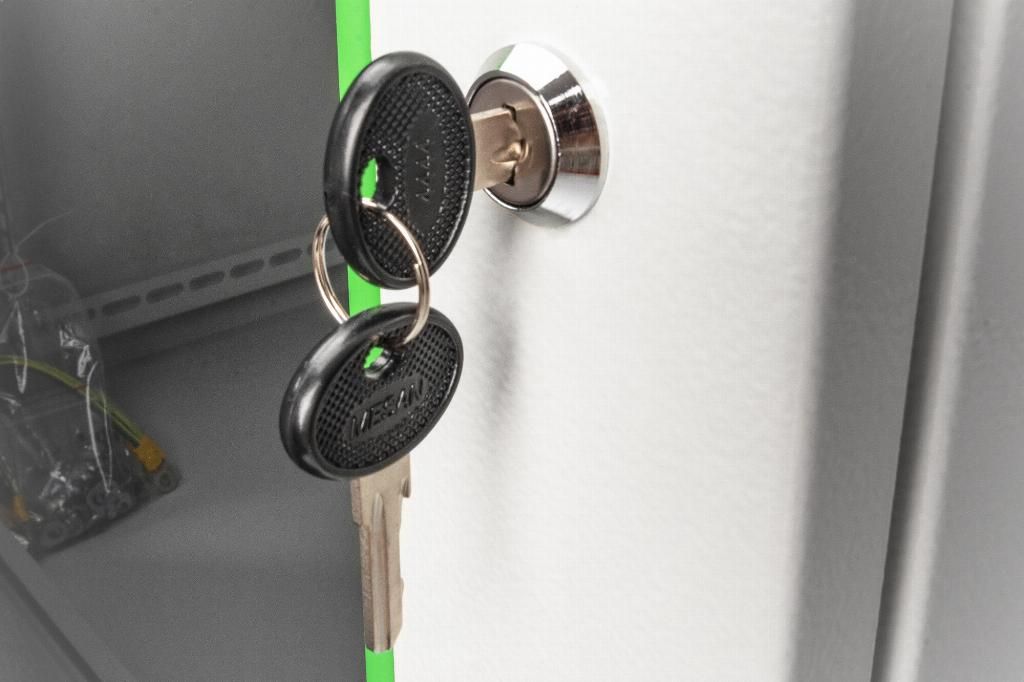

- Lockable glass door guarantees security
- 483 mm (19") profile rails mounted at the front and rear inside the enclosure, galvanized

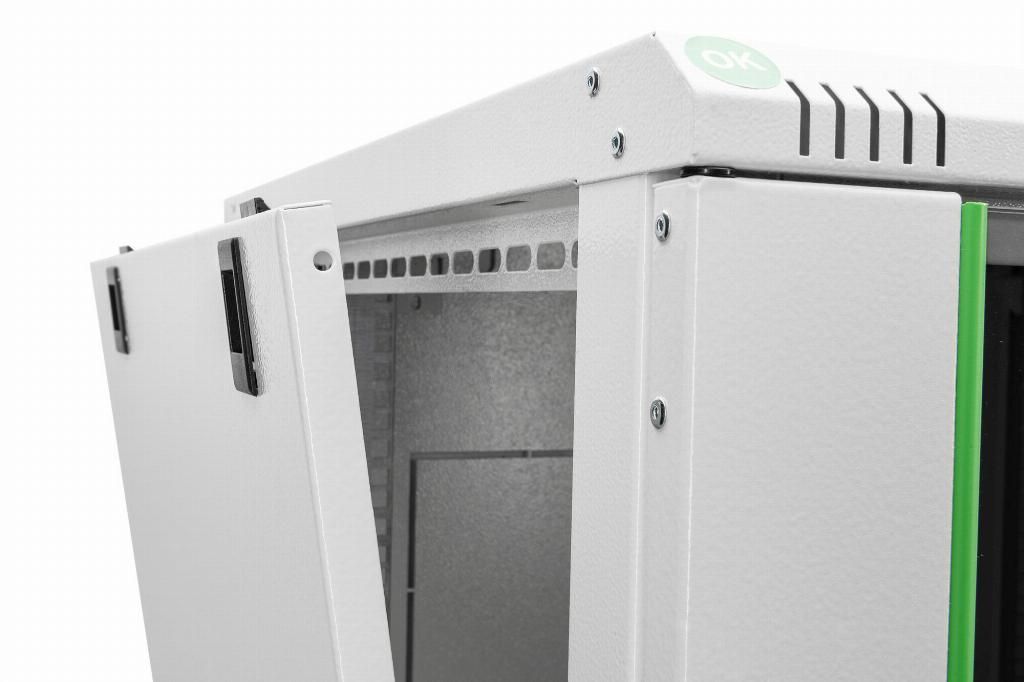

The Dynamic series wall-mounted network cabinets have been developed for simple and particularly cost-optimized network expansion. The roof, base and rear panel of each cabinet are equipped with a pre-punched cable inlet. The roof chassis is also provided with a punched-out area to accommodate a fan module. Two pairs of galvanized 483 mm (19") profile rails, labelled with height units that can be read in both directions, are installed inside. These can be adjusted in depth. Each cabinet is a robust steel construction made of up to 1.2 mm thick sheet steel. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Removable side panels and the lockable and removable front door improve accessibility. The door hinges can be changed. Wall mounting is carried out in two simple steps: The supplied mounting plate is screwed to the wall and then connected to the housing.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-19 16U-6/6-EC |
| Ean | 4016032221760 |
| Modified on | 30-09-2017 |
| Product title | Digitus Wall Mounting Cabinets Dynamic Basic Series - 600x600 mm (WxD) |
| Long Product Name | 16U wall mounting cabinet, Dynamic Basic 789x600x600 mm, color grey (RAL 7035) |
| Product specifications | FeaturesRack capacity* 16U Type* Wall mounted rack Maximum weight capacity* 60 kg Product colour Grey Material Glass, Steel Front door construction Glass Side panel construction Steel Removable front door Yes Removable side panels Yes Side panels included Yes Key lock Yes Front door key lock Yes Side panel key lock Yes Adjustable mounting rails Yes International Protection (IP) code IP20 Weight & dimensionsSize (imperial) 48.3 cm (19") Width 600 mm Depth 600 mm Height 816 mm Packaging dataPackage width 630 mm Package depth 830 mm Package height 816.2 mm Package volume 324198 cm³ Package weight 27.8 kg Logistics dataUK Trade Tariff code 94032080 Country of origin China Harmonized System (HS) code 85381000 |
| Essential qualities |
|
| Rack capacity | 16U |
| Type | Wall mounted rack |
| Maximum weight capacity | 60 kg |
