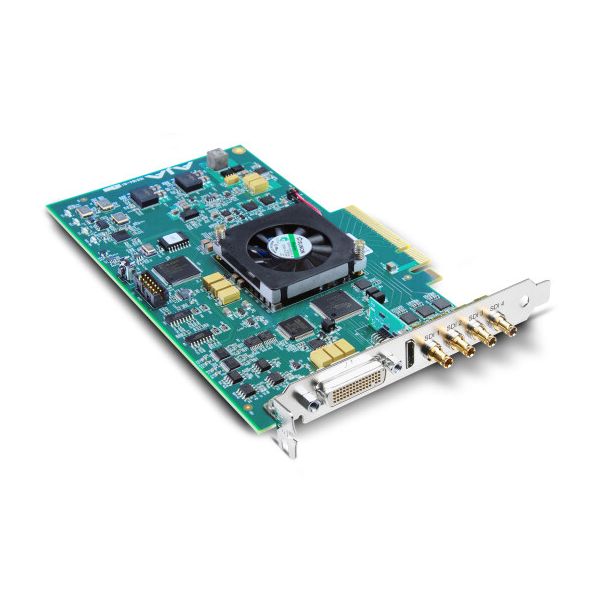

AJA KONA 4 interface cards/adapter Internal HDMI
In stock
SKU
AJA-KONA-4-R0-S01
Special Price €3,508.78 €2,876.05 Regular Price €3,617.30
AJA KONA 4, PCIe, HDMI, PCIe 2.0, RS-422, Green, Metallic, PC
AJA OEM Kona 4 Card with BOB & Cables
KONA 4 is a powerful 8-lane PCIe 2.0 video and audio desktop I/O card with unparalleled features for handling everything from SD to HD, 2K and 4K with full 10-bit 4:2:2 and 4:4:4 sampling for fantastic image clarity. KONA 4 has the power for the work you do today and into the future.
Powerful
KONA 4’s extensive 4K support allows output directly from editing systems to 4K projectors or monitors, including HFR support at 50/60 fps and 4K HDMI output to support the latest UltraHD monitors, allowing editors and clients to view full resolution 4K images as they work.
KONA 4 also supports AJA Raw capture at up to 120 fps via 4 3G-SDI connections. Create beautiful and detailed slow motion with an engaging cinematic feel via AJA Control Room.
High Frame Rate support
KONA 4 has the power to support 4K High Frame Rate (HFR) at 50p and 60p for the most demanding 4K and UHD workflows.
4K HDMI output
The HDMI output is capable of displaying 4K/UHD via HDMI to many of the new UltraHD monitors, making full-resolution monitoring affordable while stil maintaining pristine image quality.
Integration
KONA 4 supports Windows, Mac and Linux, providing incredible 4K and multi-channel power for a wide range of applications.
Video Output Digital
- 3G-SDI, SMPTE-259/292/296/424, 8-bit, 10-bit and 12-bit*
- Single Link 4:2:2 or 4:4:4 (1 x BNC)
- Dual Link HD 4:4:4, (2 x BNC)
- 2K HSDL (High Speed Data Link) 4:4:4, (2 x BNC)
- 4K/UltraHD 4:2:2 and 4:4:4 up to 50/60 fps
- HDMI 2.0 (UHD 50/60p 8-bit 4:2:0)
Video Input Digital
- 3G-SDI, SMPTE-259/292/296/424/425, 8-bit, 10-bit and 12-bit*
- Single Link 4:2:2 or 4:4:4 (1 x BNC)
- Dual Link HD 4:4:4 (2 x BNC)
- 2K HSDL (High Speed Data Link) 4:4:4, (2 x BNC)
- 4K/UltraHD 4:2:2 and 4:4:4 up to 50/60 fps
- 1D LUT Support
Video Output Analog
- Composite/S-Video (Y/C) (1 x BNC/2x BNC+adapter)
- NTSC, NTSCJ, PAL
- Component (3 x BNC)
- HD: YPbPr, RGB
- SD: YPbPr, RGB (component mode)
- SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
- 12-bit D/A, 8x oversampling
- +/- .2 dB to 5.0 MHz Y Frequency Response
- +/- .2 dB to 1 MHz C Frequency Response
- 5% 2T pulse response
- <1% Diff Phase
- <1% Diff Gain
- <1% ns Y/C delay inequity
KONA 4 is a powerful 8-lane PCIe 2.0 video and audio desktop I/O card with unparalleled features for handling everything from SD to HD, 2K and 4K with full 10-bit 4:2:2 and 4:4:4 sampling for fantastic image clarity. KONA 4 has the power for the work you do today and into the future.
Powerful
KONA 4’s extensive 4K support allows output directly from editing systems to 4K projectors or monitors, including HFR support at 50/60 fps and 4K HDMI output to support the latest UltraHD monitors, allowing editors and clients to view full resolution 4K images as they work.
KONA 4 also supports AJA Raw capture at up to 120 fps via 4 3G-SDI connections. Create beautiful and detailed slow motion with an engaging cinematic feel via AJA Control Room.
High Frame Rate support
KONA 4 has the power to support 4K High Frame Rate (HFR) at 50p and 60p for the most demanding 4K and UHD workflows.
4K HDMI output
The HDMI output is capable of displaying 4K/UHD via HDMI to many of the new UltraHD monitors, making full-resolution monitoring affordable while stil maintaining pristine image quality.
Integration
KONA 4 supports Windows, Mac and Linux, providing incredible 4K and multi-channel power for a wide range of applications.
Video Output Digital
- 3G-SDI, SMPTE-259/292/296/424, 8-bit, 10-bit and 12-bit*
- Single Link 4:2:2 or 4:4:4 (1 x BNC)
- Dual Link HD 4:4:4, (2 x BNC)
- 2K HSDL (High Speed Data Link) 4:4:4, (2 x BNC)
- 4K/UltraHD 4:2:2 and 4:4:4 up to 50/60 fps
- HDMI 2.0 (UHD 50/60p 8-bit 4:2:0)
Video Input Digital
- 3G-SDI, SMPTE-259/292/296/424/425, 8-bit, 10-bit and 12-bit*
- Single Link 4:2:2 or 4:4:4 (1 x BNC)
- Dual Link HD 4:4:4 (2 x BNC)
- 2K HSDL (High Speed Data Link) 4:4:4, (2 x BNC)
- 4K/UltraHD 4:2:2 and 4:4:4 up to 50/60 fps
- 1D LUT Support
Video Output Analog
- Composite/S-Video (Y/C) (1 x BNC/2x BNC+adapter)
- NTSC, NTSCJ, PAL
- Component (3 x BNC)
- HD: YPbPr, RGB
- SD: YPbPr, RGB (component mode)
- SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
- 12-bit D/A, 8x oversampling
- +/- .2 dB to 5.0 MHz Y Frequency Response
- +/- .2 dB to 1 MHz C Frequency Response
- 5% 2T pulse response
- <1% Diff Phase
- <1% Diff Gain
- <1% ns Y/C delay inequity
| Product Condition | New |
|---|---|
| Manufacturer | Aja Video Systems |
| manufacturer code | KONA-4-R0-S01 |
| Taric Code | 8471804000 |
| Product title | AJA KONA 4 interface cards/adapter Internal HDMI |
| Long Product Name | 4K UltraHD, HDMI 2.0, NTSC, NTSCJ, PAL, RS-422, BOB & Cables |
| Product specifications | Ports & interfacesHost interface* PCIe Output interface* HDMI Expansion card standard PCIe 2.0 Serial interface type RS-422 DesignInternal* Yes Product colour Green, Metallic Purpose PC |
