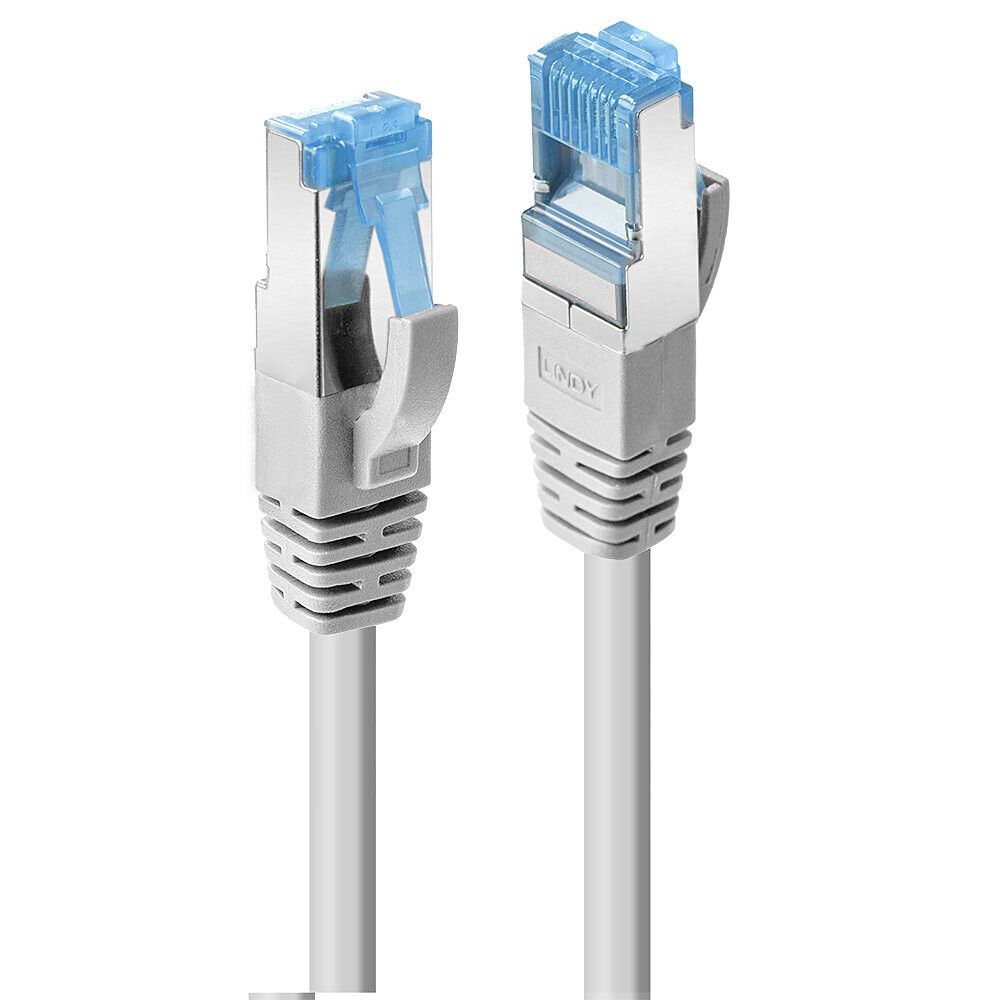

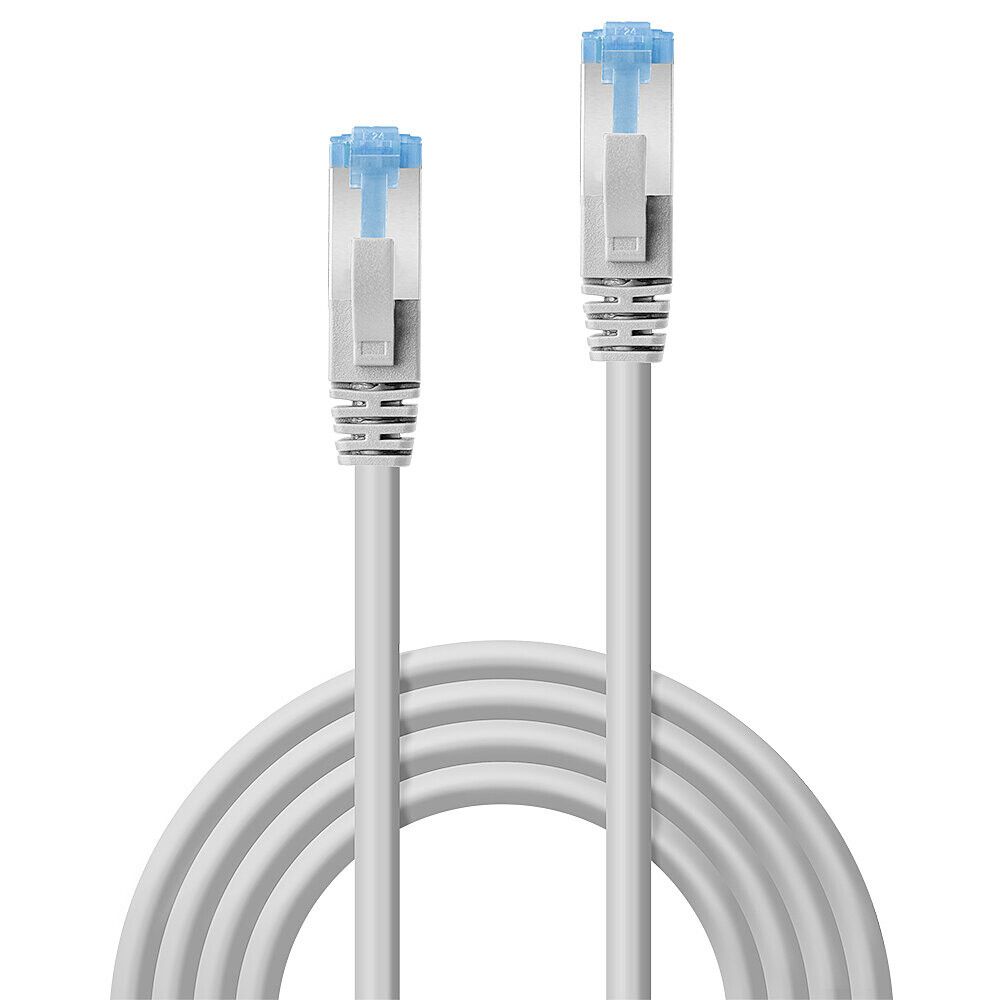

Lindy 1m Cat.6A S/FTP LSZH Network Cable, Grey
GTIN: 4002888471329
1m Cat.6A S/FTP LSZH Network Cable, Grey
Commercial guarantee of durability offered by the producer at no extra cost: 10 years. See the GARAN label
Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.

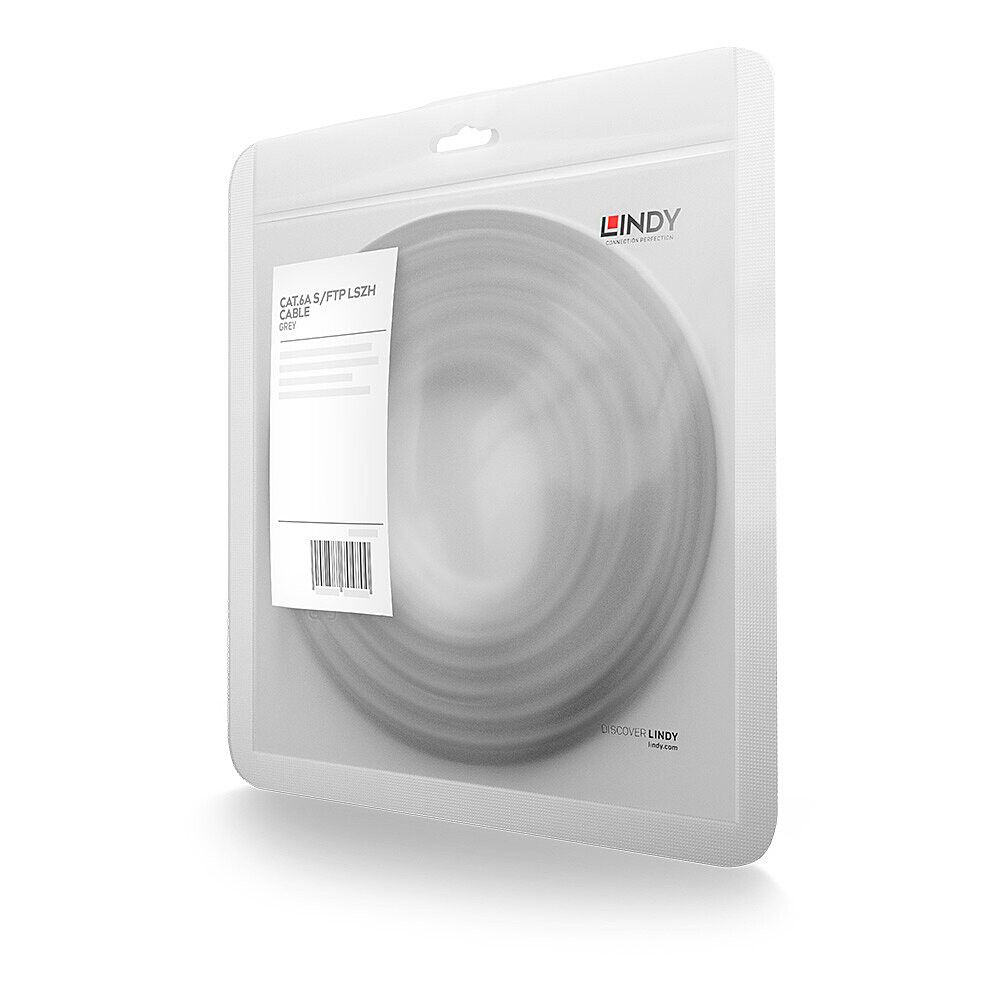

Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Black, Blue, Grey, Red, White
| Product Condition | New |
|---|---|
| Manufacturer | Lindy |
| manufacturer code | 47132 |
| Ean | 4002888471329 |
| Modified on | 26-10-2014 |
| Product title | Lindy 1m Cat.6A S/FTP LSZH Network Cable, Grey |
| Long Product Name | 1m Cat.6A S/FTP LSZH Network Cable, Grey |
| Product specifications | FeaturesProduct colour* Grey Cable length* 1 m Cable standard* Cat6a Cable shielding* S/FTP (S-STP) Connector 1* RJ-45 Connector 2* RJ-45 Connector 1 gender* Male Connector 2 gender* Male Connector contacts plating Gold Connector shielding Yes Connector shield material Aluminium Jacket material Low smoke zero halogen (LSZH) Cable shape Round Conductor material Copper Cable class Ea Cabling technology 10/100/1000Base-T(X) AWG wire size 27 FeaturesData transfer rate 1000 Mbit/s Frequency 500 MHz Bend radius (min) 7.2 cm Plug and Play Yes Nominal attenuation 49.3dB/100m @ 500MHz Certification RoHS, REACH, UL, California Proposition 65 Operational conditionsOperating temperature (T-T) -10 - 60 °C Storage temperature (T-T) -20 - 75 °C Weight & dimensionsOuter diameter 6 mm Packaging dataQuantity per pack 1 pc(s) Package type Polybag Logistics dataHarmonized System (HS) code 84733080 |
| Essential qualities |
|
| Cable length | 1 m |
| Cable standard | Cat6a |
| Cable shielding | S/FTP (S-STP) |
| Product colour | Grey |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
