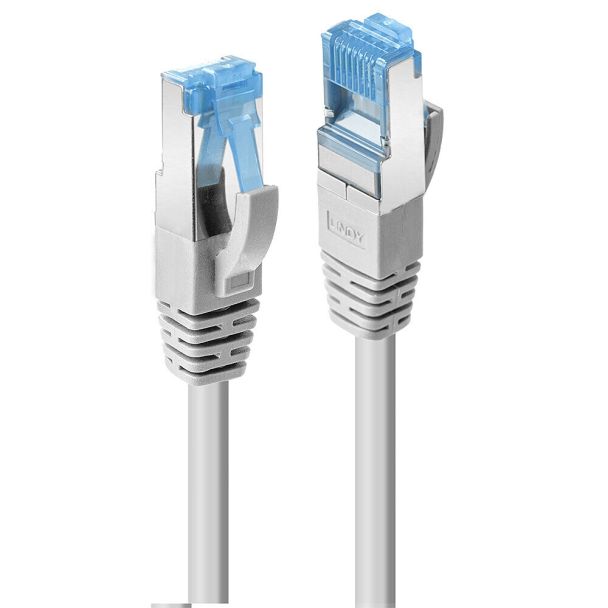

Lindy 47631 networking cable Grey 0.5 m Cat6 S/FTP (S-STP)
GTIN: 4002888476317
Cat.6A, S/FTP, RJ45, Male/Male, 500MHz, Copper, 28AWG, Grey, 0.5m
Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10GBase-T.
The TPE Jacket is a non-toxic alternative to PVC allowing it to be used in a variety of environments, as well as being more flexible than its counterpart with a flex rating of 10 million it has high impact and tear resistance making it a very durable jacket material.
Cat.6A cable for operating frequencies up to 500MHz in shielded version with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables are widespread throughout the professional sector. They are ideal for Gigabit Ethernet or AV extension applications. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The TPE used as a sheath material provides increased flexibility and easy handling of cables.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
| Product Condition | New |
|---|---|
| Manufacturer | Lindy |
| manufacturer code | 47631 |
| Ean | 4002888476317 |
| Modified on | 10-01-2023 |
| Warranty | 10 years |
| Product title | Lindy 47631 networking cable Grey 0.5 m Cat6 S/FTP (S-STP) |
| Long Product Name | Cat.6A, S/FTP, RJ45, Male/Male, 500MHz, Copper, 28AWG, Grey, 0.5m |
| Product specifications | FeaturesProduct colour* Grey Cable length* 0.5 m Cable standard* Cat6 Cable shielding* S/FTP (S-STP) Connector 1* RJ-45 Connector 2* RJ-45 Connector 1 gender* Male Connector 2 gender* Male Connector 1 form factor Straight Connector 2 form factor Straight Connector contacts plating Nickel/Gold Connector shield material Copper alloy Jacket material Thermoplastic elastomer (TPE) Cable shape Round Conductor material Copper Connector housing material Polycarbonate (PC) Cabling technology 10GBase-T AWG wire size 28 Frequency 500 MHz Bend radius (min) 7.4 cm FeaturesSnagless cable boot Yes Plug and Play Yes Certification RoHS, REACH, UL, California Proposition 65 Operational conditionsOperating temperature (T-T) -10 - 60 °C Storage temperature (T-T) -20 - 75 °C Weight & dimensionsWidth 11.6 mm Depth 22.8 mm Height 8.3 mm Outer diameter 6.2 mm Packaging dataQuantity per pack 1 pc(s) Package type Polybag Technical detailsSustainability compliance Yes Sustainability certificates REACH, RoHS Warranty period 10 year(s) Compliance certificates REACH, RoHS |
| Essential qualities |
|
| Product colour | Grey |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Cable length | 0.5 m |
| Cable standard | Cat6 |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
