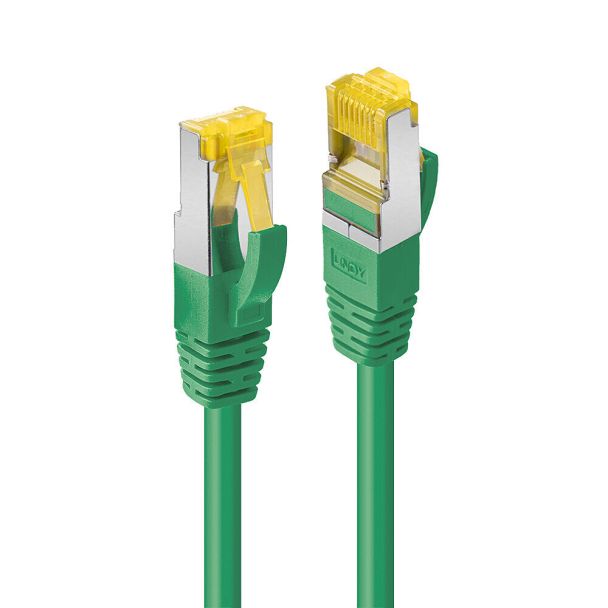

Lindy 47649 networking cable Green 3 m Cat6a S/FTP (S-STP)
GTIN: 4002888476492
Lindy 47649, 3 m, Cat6a, S/FTP (S-STP), RJ-45, RJ-45, Green
Cat.7 S/FTP network cable with support for bandwidth up to 600MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.
The Cat.7 cable material for operating frequencies up to 600MHz with total braided shielding and foil single-wire shielding (S/FTP) was developed for use in data centres, server rooms, rack mounting of network and control cabinets etc. for networks up to 10GBaseT. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
This product uses Cat.7 cable material. The Cat.7 standard originally defined the GG45 connectors, which were intended as a further development of RJ45, but were not able to establish themselves on the market. In the meantime, the RJ45 connector developed to easily meet the requirements of Cat.7, but has never been defined for Cat.7. Therefore the imprint on the cable reads as follows: "Cat.6A S/FTP patch cords with 600MHz raw cable".
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Black, Blue, Grey, Red, White. Yellow, Green
Product Condition | New |
---|---|
Manufacturer | Lindy |
manufacturer code | 47649 |
Ean | 4002888476492 |
Modified on | 10-01-2023 |
Warranty | 10 years |
Product title | Lindy 47649 networking cable Green 3 m Cat6a S/FTP (S-STP) |
Long Product Name | Cat.6A, S/FTP, RJ45, Male/Male, 600MHz, Copper, 26AWG, Green, 3m |
Product specifications | FeaturesProduct colour* Green Cable length* 3 m Cable standard* Cat6a Cable shielding* S/FTP (S-STP) Connector 1* RJ-45 Connector 2* RJ-45 Connector 1 gender* Male Connector 2 gender* Male Connector 1 form factor Straight Connector 2 form factor Straight Connector contacts plating Nickel/Gold Connector shield material Copper alloy Jacket material Low smoke zero halogen (LSZH) Cable shape Round Conductor material Copper Connector housing material Polycarbonate (PC) Cabling technology 10GBase-T AWG wire size 26 Frequency 600 MHz Bend radius (min) 7.8 cm Snagless cable boot Yes FeaturesPlug and Play Yes Certification RoHS, REACH, UL, California Proposition 65 Operational conditionsOperating temperature (T-T) -10 - 60 °C Storage temperature (T-T) -20 - 75 °C Weight & dimensionsWidth 11.6 mm Depth 22.8 mm Height 8.3 mm Outer diameter 6.5 mm Packaging dataQuantity per pack 1 pc(s) Package type Polybag Technical detailsSustainability compliance Yes Sustainability certificates REACH, RoHS Warranty period 10 year(s) Compliance certificates REACH, RoHS Other featuresQuantity per box 1 pc(s) |
