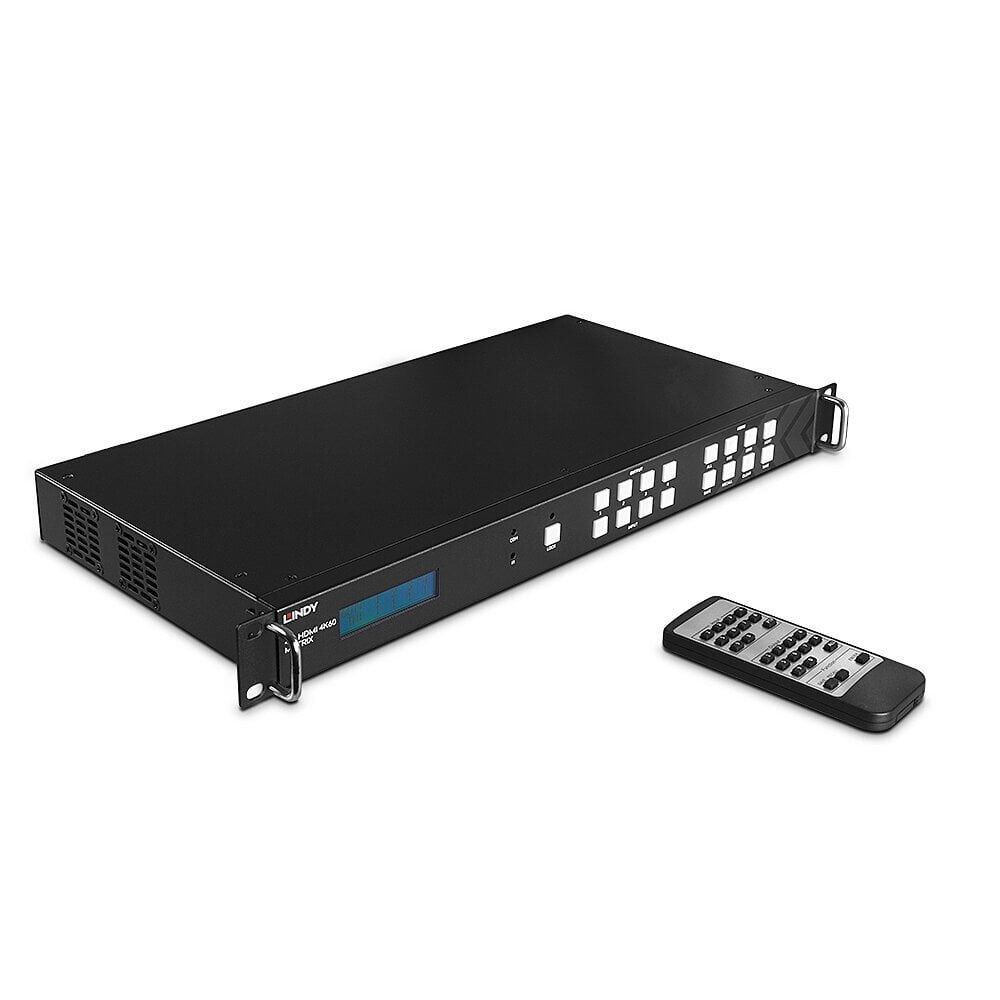

Lindy 4x4 HDMI 4K60 Matrix with Video Wall Scaling
GTIN: 4002888382380
4x4 HDMI 4K60 Matrix with Video Wall Scaling
Commercial guarantee of durability offered by the producer at no extra cost: 3 years. See the GARAN label
The Lindy 4x4 HDMI 4K60 Matrix with Video Wall Scaling is the professional solution for distributing content from several source devices to many HDMI displays, or for creating eye-catching video wall setups. Supporting resolutions up to 4K@60Hz, content can be shown in excellent clarity, great for ensuring a high-quality video experience in sports bars, retail stores or multiple consecutive locations in larger installations. Resolutions can easily be scaled and controlled by the user to ensure the optimum, or consistent, resolution is always displayed.
As well as providing a professional 4x4 matrix switching function, this device can create customisable wall displays in a variety of layouts. This provides the user with a range of flexible display options for their installation and allows the device to be used in a range of specialised environments; including transport hubs, points of sale and hospitality. Analogue audio ports also allow for 2-channel audio extraction, to add immersive stereo audio to the content on screen.
The matrix also provides instant seamless switching between source devices and displays, a crucial feature for use in real time operation centre scenarios such as traffic monitoring, stock market floors or security setups. Controlled via independent IR as well as LAN and push button switching, this matrix ensures minimum effort is required of the user when creating their installation, while RS-232 control also allows for integration into larger control systems.
Professional EDID management ensures maximum compatibility with both the source devices and displays.
| Product Condition | New |
|---|---|
| Manufacturer | Lindy |
| manufacturer code | 38238 |
| Ean | 4002888382380 |
| Modified on | 28-05-2023 |
| Product title | Lindy 4x4 HDMI 4K60 Matrix with Video Wall Scaling |
| Long Product Name | 4x4 HDMI 4K60 Matrix with Video Wall Scaling |
| Product specifications | FeaturesProduct colour* Black Housing material Metal Scaled resolutions* 3840 x 2160 Built-in display Yes Display type LED EDID management Yes LED indicators Yes Control type Buttons VideoHDCP Yes HDCP version 1.4 Ports & interfacesHDMI in 4 Number of HDMI outputs 4 HDMI version 2.0 Audio output 4 RS-232 input ports 1 RJ-45 ports quantity 1 PowerAC adapter input voltage 100 - 240 V Power consumption (max) 60 W Weight & dimensionsWidth 430 mm Depth 220 mm Height 44 mm Weight 3.18 kg Technical detailsSustainability compliance Yes Sustainability certificates CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA Warranty period 2 year(s) Compliance certificates CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA Operational conditionsOperating temperature (T-T) 10 - 40 °C Storage temperature (T-T) -20 - 70 °C Operating relative humidity (H-H) 10 - 50% Packaging dataPackage width 565 mm Package depth 83 mm Package height 413 mm Package weight 5 kg Package type Box |
| Essential qualities |
|
| Product colour | Black |
| Scaled resolutions | 3840 x 2160 |
