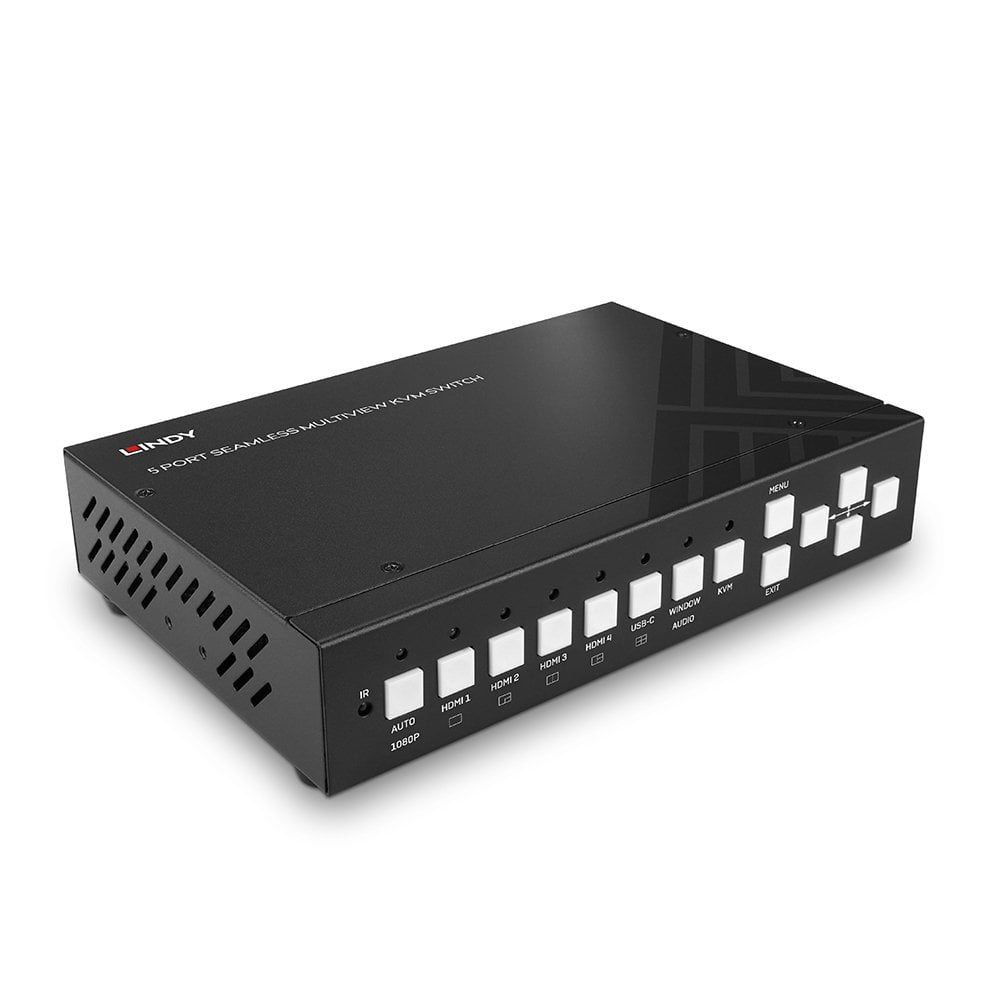

Lindy 5 Port Seamless Multiview KVM Switch
GTIN: 4002888323307
5 Port Seamless Multiview KVM Switch
Commercial guarantee of durability offered by the producer at no extra cost: 3 years. See the GARAN label
This advanced HDMI 4K60 Switch is able to display up to 4 sources at the same time on a 4K screen with KVM control connecting also the USB Type B ports. There are 5 different Multiview modes, Single, PIP, PBP, 3xWIN and 4xWIN while with USB roaming function is possible to get the KVM control of different sources by simply moving the mouse pointer from one window to another.
The unit has 4 HDMI and 1 USB Type C video inputs, switching between the sources is seamless, without any black screen or screen freezing. All the features can be managed in many ways, by pushing the buttons on the front panel via OSD menu, IR remote control (included), keyboard hot-keys for KVM selection, TCP/IP or RS-232 software GUI and commands. All of these different possibilities and features make this Switch perfect for any kind of installation, from AV pro solutions to mission critical control rooms, in broadcasting, E-Sports and security applications.
It provides also one additional HDMI mirrored output for local monitoring or for video capture adding a HDMI to USB video capture device. 3.5mm analog and TosLink digital optical audio outputs allow to manage independent audio selection, supporting many audio formats; with LPCM 2.0 format the volume can be controlled as well.
| Product Condition | New |
|---|---|
| Manufacturer | Lindy |
| manufacturer code | 32330 |
| Ean | 4002888323307 |
| Modified on | 07-12-2023 |
| Product title | Lindy 5 Port Seamless Multiview KVM Switch |
| Long Product Name | 5 Port Seamless Multiview KVM Switch |
| Product specifications | Ports & interfacesKeyboard port type* USB Mouse port type* USB Video port type* HDMI HDMI ports quantity 6 HDMI version 2.0 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1 Console ports* 3.5mm headphone, HDMI, USB A Console USB ports quantity 2 Console HDMI ports quantity 2 USB connector type USB Type-A, USB Type-B Audio connections Yes DC-in jack Yes NetworkEthernet LAN (RJ-45) ports 1 PerformanceHD type* 4K Ultra HD Maximum resolution* 4096 x 2160 pixels Video bandwidth 60 Hz Audio channels 7.1 Audio decoding technologies DTS-HD DesignProduct colour* Black Housing material Metal Display switch button Yes Push button Yes Certification California Proposition 65 DisplayBuilt-in display* No PowerPower source DC Input voltage 12 V Input current 2.5 A SustainabilitySustainability compliance Yes Sustainability certificates CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA Compliance certificates CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 10 - 70% Weight & dimensionsWidth 219 mm Depth 146 mm Height 44 mm Weight 1.3 kg Packaging dataPackage width 360 mm Package depth 260 mm Package height 75 mm Package weight 1.8 kg Package type Box Packaging contentManual Yes Packaging content 5 Port HDMI 4K60 Seamless Multiview KVM Switch
IR remote control
4-Pin Terminal Block
2x Mounting ears with screws
Multi-Country Power Supply (EU, UK, US & AUS)
Lindy Manual Other featuresPower requirements 12VDC 2.5A Warranty period 2 year(s) |
| Essential qualities |
|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| Console ports | 3.5mm headphone, HDMI, USB A |
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 pixels |
| Product colour | Black |
| Built-in display | No |
