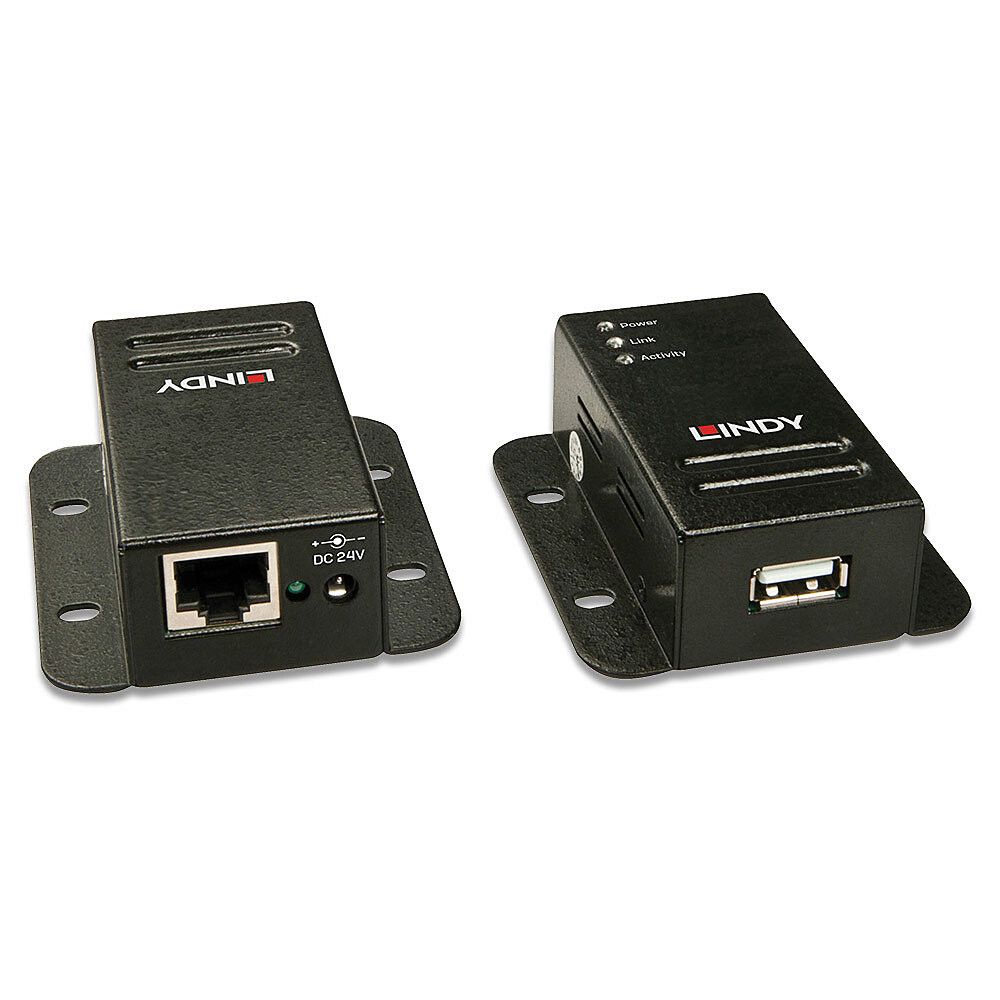

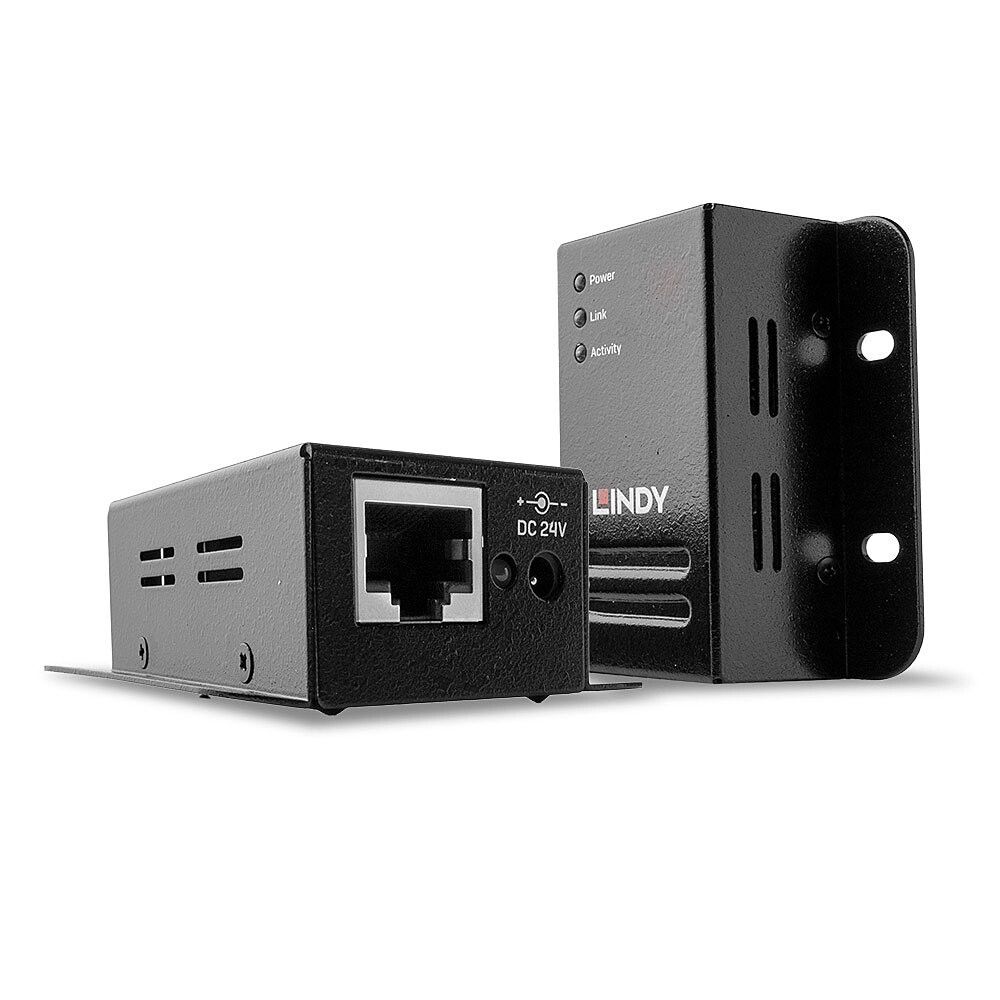

Lindy 50m USB 2.0 Cat.6 Extender
GTIN: 4002888426800
50m USB 2.0 Cat.6 Extender
The Lindy USB 2.0 Cat.6 Extender can be used to extend the distance between a USB peripheral device and the host computer by up to 50m.
A standard, low cost Cat.5e/6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit. For best performance and compatibility, we recommend the use of solid core patched cables.
The Extender features Power over Cable, which requires a single power supply only to be connected to the transmitter unit. This handy feature allows the receiver unit and connected devices to be located more freely as no power supply is required.
With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.
| Product Condition | New |
|---|---|
| Manufacturer | Lindy |
| manufacturer code | 42680 |
| Ean | 4002888426800 |
| Modified on | 27-04-2018 |
| Product title | Lindy 50m USB 2.0 Cat.6 Extender |
| Long Product Name | 50m USB 2.0 Cat.6 Extender |
| Product specifications | PerformanceType* Network transmitter & receiver Maximum transfer distance* 50 m Data transfer rate 480 Mbit/s Cable types supported Cat5, Cat5e, Cat6 Chipset NS1021 Plug and Play Yes Ports & interfacesRJ-45 ports quantity (transmitter) 1 RJ-45 ports quantity (receiver) 1 USB 2.0 ports quantity 2 DC-in jack Yes DesignProduct colour Black Housing material Metal LED indicators Yes Certification CE, UKCA, FCC, RoHS, REACH PowerInput current 0.25 A Output voltage 24 V Output current 0.5 A Power over Ethernet (PoE) Yes Power note 3.5/1.35mm DC Included power plug types AU, EU, UK, US Operational conditionsOperating temperature (T-T) 0 - 70 °C Storage temperature (T-T) -20 - 80 °C Operating relative humidity (H-H) 0 - 90% Storage relative humidity (H-H) 0 - 90% Weight & dimensionsWeight 300 g Transmitter width 6 cm Transmitter depth 6.7 cm Transmitter height 2.3 cm Receiver width 6 cm Receiver depth 6.7 cm Receiver height 2.3 cm Packaging contentCables included USB Type-A to USB Type-B Manual Yes Packaging dataPackage type Box Package width 185 mm Package depth 140 mm Package height 55 mm Package weight 400 g Logistics dataHarmonized System (HS) code 85176990 |
| Essential qualities |
|
| Type | Network transmitter & receiver |
| Maximum transfer distance | 50 m |
