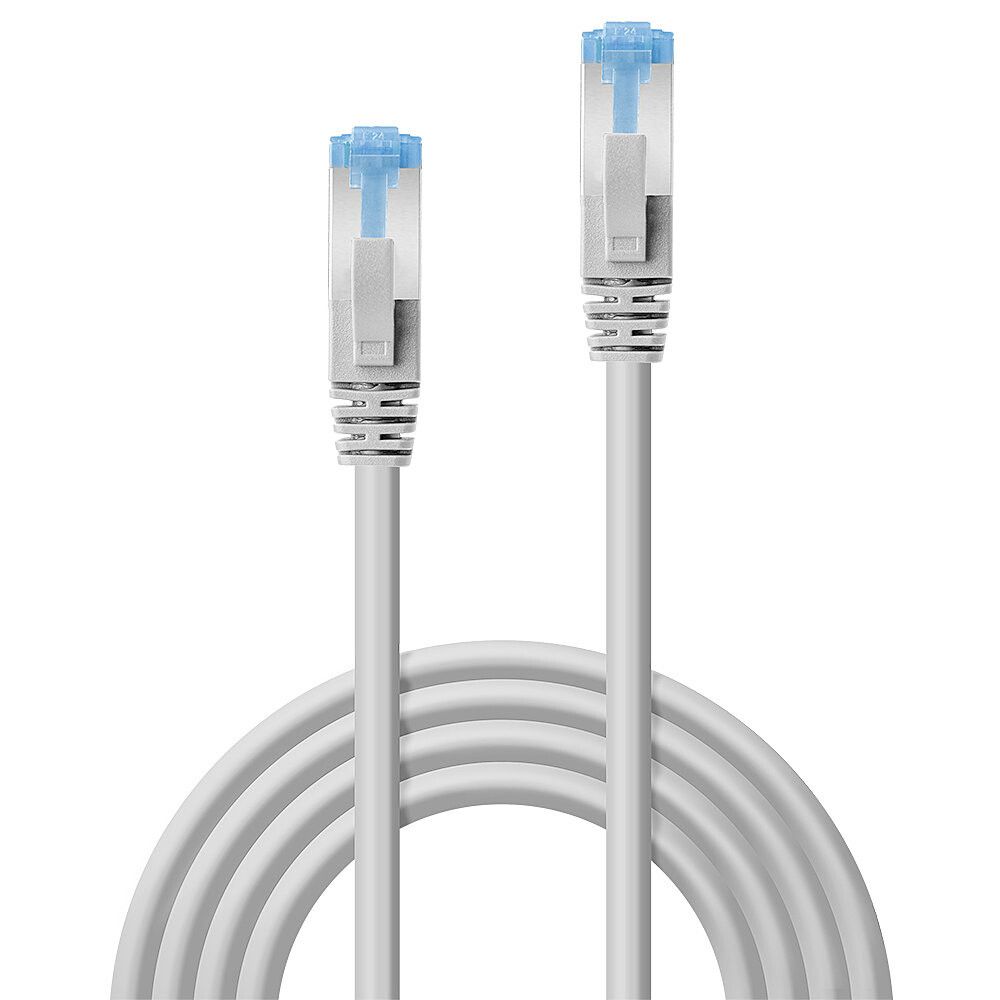

Lindy 5m Cat.6A S/FTP LSZH Network Cable, Grey
GTIN: 4002888471367
5m Cat.6A S/FTP LSZH Network Cable, Grey
Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.

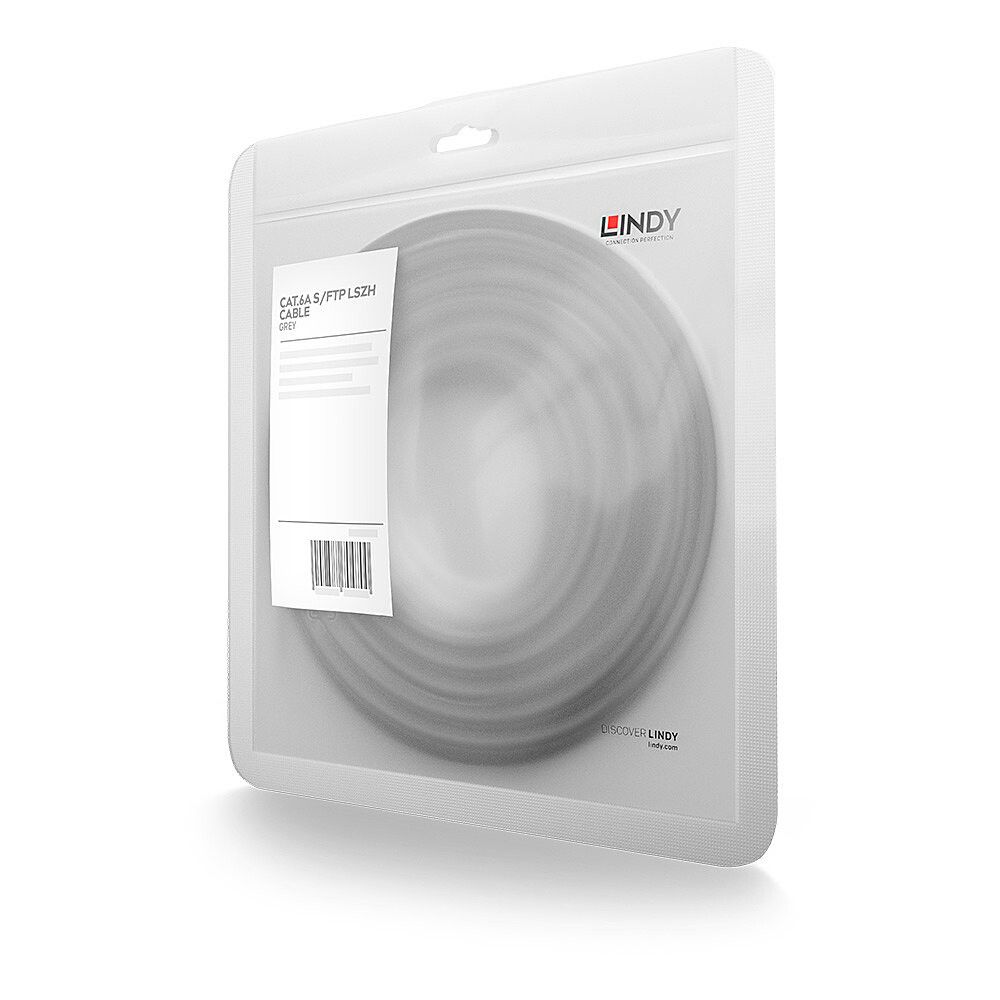

Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Black, Blue, Grey, Red, White
| Product Condition | New |
|---|---|
| Manufacturer | Lindy |
| manufacturer code | 47136 |
| Ean | 4002888471367 |
| Modified on | 26-10-2014 |
| Product title | Lindy 5m Cat.6A S/FTP LSZH Network Cable, Grey |
| Long Product Name | 5m Cat.6A S/FTP LSZH Network Cable, Grey |
| Product specifications | FeaturesProduct colour* Grey Cable length* 5 m Cable standard* Cat6a Cable shielding* S/FTP (S-STP) Connector 1* RJ-45 Connector 2* RJ-45 Connector 1 gender* Male Connector 2 gender* Male Connector contacts plating Gold Connector shielding Yes Connector shield material Aluminium Jacket material Low smoke zero halogen (LSZH) Conductor material Copper Cable class Ea Cabling technology 10/100/1000Base-T(X) AWG wire size 27 Data transfer rate 1000 Mbit/s FeaturesFrequency 500 MHz Bend radius (min) 7.2 cm Plug and Play Yes Nominal attenuation 49.3dB/100m @ 500MHz Certification RoHS, REACH, UL, California Proposition 65 Operational conditionsOperating temperature (T-T) -10 - 60 °C Storage temperature (T-T) -20 - 75 °C Weight & dimensionsOuter diameter 6 mm Packaging dataQuantity per pack 1 pc(s) Package type Polybag Logistics dataHarmonized System (HS) code 84733080 |
| Essential qualities |
|
| Cable length | 5 m |
| Cable standard | Cat6a |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
