Lindy KVM Over IP Extender - Receiver
GTIN: 4002888382656
KVM Over IP Extender - Receiver

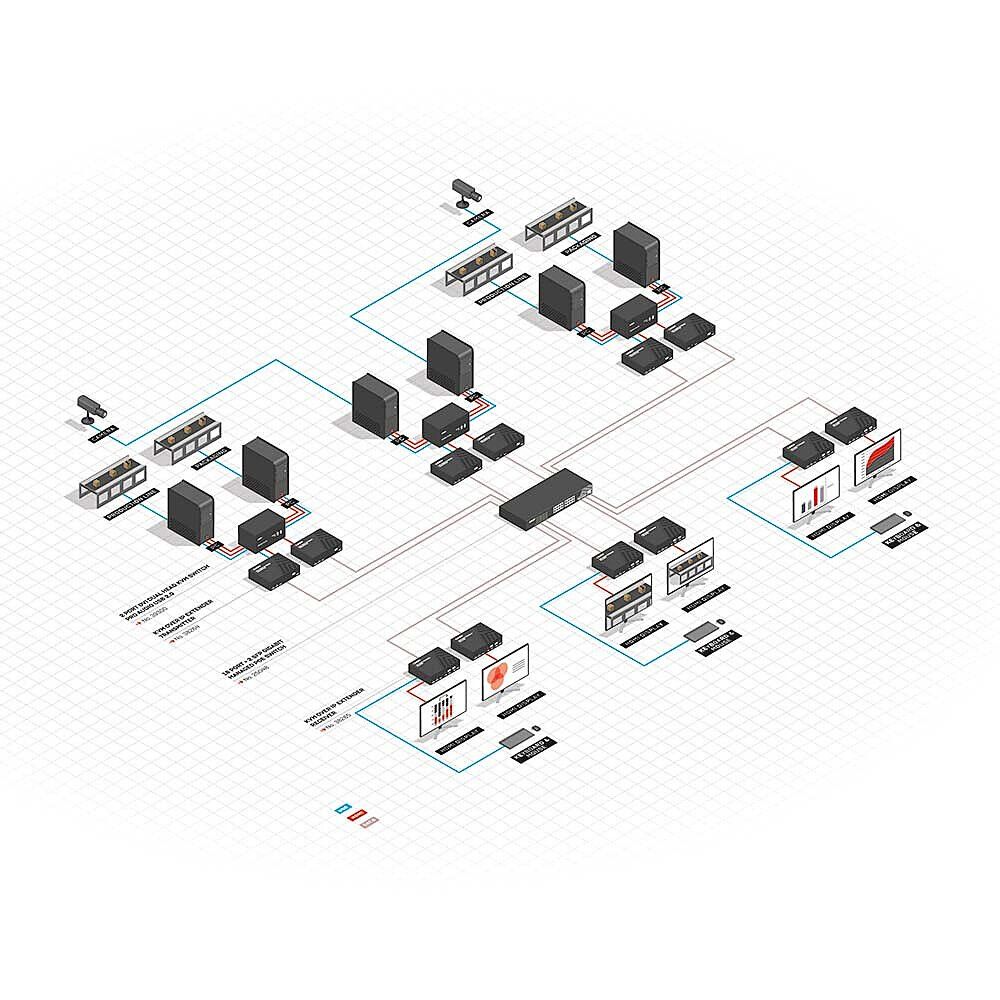

The Lindy KVM Over IP Extender system allows users to control a source device such as a PC or PVR through a standard IP network. This receiver unit must be connected to a transmitter unit (No. 38264 not included) to create a standard point to point control system, with a maximum distance of 150m (492,12ft). It's also possible to set up a distributed control system (One to Many configuration) which allows a single device connected to a Transmitter Unit (No. 38264 - not included) to be controlled by several consoles each connected to this receiver via a dedicated Ethernet switch or VPN.
This extender system includes a convenient IR (25 to 56kHz) repeating system to allow for the dedicated use of a remote control from the console side. This is a typical solution for security system management (PVR management or control rooms), or remote server administration (KVM switch remote control) as well as AV signals over IP extension for distributed monitoring of industrial facilities.
| Product Condition | New |
|---|---|
| Manufacturer | Lindy |
| manufacturer code | 38265 |
| Ean | 4002888382656 |
| Modified on | 19-07-2019 |
| Product title | Lindy KVM Over IP Extender - Receiver |
| Long Product Name | KVM Over IP Extender - Receiver |
| Product specifications | FeaturesType* AV receiver Maximum resolution* 3840 x 2160 pixels Cable types supported Cat5e, Cat6 Maximum transfer distance 150 m Maximum refresh rate 30 Hz Extended display identification data (EDID) Yes LED indicators Yes Bandwidth 10.2 Gbit/s HDCP Yes Material Plastic Product colour Black Certification CE, FCC, REACH Ports & interfacesConnectivity technology* Wired Ethernet LAN Yes RJ-45 input ports 1 Number of HDMI outputs 1 HDMI version 1.4 USB ports quantity 2 DC-in jack Yes PowerInput current 2 A PowerOperating voltage (receiver) 5 V Operational conditionsOperating temperature (T-T) 0 - 55 °C Storage temperature (T-T) -10 - 75 °C Operating relative humidity (H-H) 10 - 80% Weight & dimensionsWidth 124 mm Depth 85 mm Height 24 mm Weight 200 g Packaging dataPackage width 220 mm Package depth 170 mm Package height 60 mm Package weight 800 g Packaging contentAC adapter included Yes Manual Yes Technical detailsSustainability certificates RoHS Compliance certificates RoHS |
| Essential qualities |
|
| Type | AV receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Connectivity technology | Wired |
