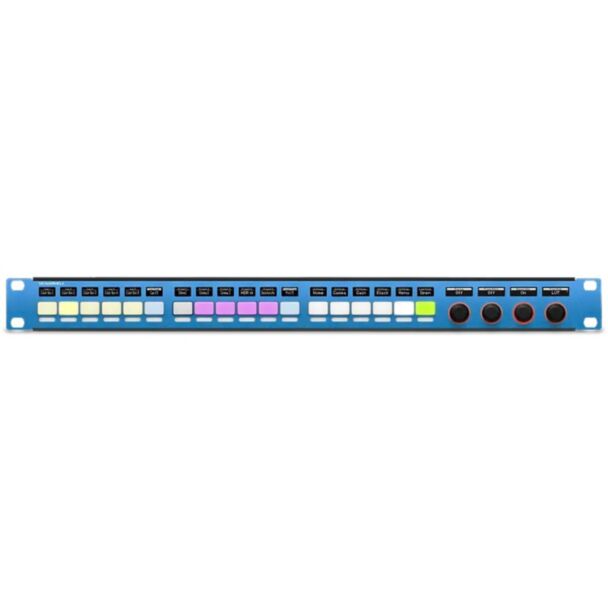

SKAARHOJ Rack Control Uno 1U rack controller with buttons and encoders

SKAARHOJ Rack Control Uno

The Rack Control Uno, with Blue Pill Inside, has 18 four-way buttons and four backlit encoders, each with RGB colouring and OLED displays for crisp function legends. It fits into any rack or sits on a table.

It excels in Raw Panel applications, with practically unlimited configurations in Reactor; its compact design is an efficient tool for quickly adjusting parameters across many applications.

Key features

• 18 programmable four-way buttons with LED bars
• 4 backlit encoders
• RGB colouring and OLED displays for labels and feedback
• Rack or tabletop placement
• Raw Panel applications with full Reactor configurability
• Modular design, advanced ergonomics, durable build
• Extensive list of supported devices, universal control of multiple third-party devices
• User customization with the Reactor web UI
• 1G Ethernet with PoE
• Designed and made in Denmark

Compatibility

• All devices supported by SKAARHOJ device cores
• Raw Panel protocol applications

In the box

• Rack Control Uno
• 12 V power supply (PHIHONG PSA15R-120P, 12 V / 1.25 A, 1.5 m cable, plug for the destination country)
• Getting Started Guide

Specifications

• Buttons: 18 elastomer four-way buttons with display
• Encoders: 4
• OLED: 18 tiles 64x32 pixels, 4 tiles 112x32 pixels
• LED bars: 18 (3 steps)
• Network: 1G Ethernet with Power over Ethernet (PoE IEEE 802.3af/at)
• Power: PoE (IEEE 802.3af/at) or 12 V DC jack 5.5 x 2.1 mm, centre positive
• Service port: Micro USB for manual IP setting
• Platform: Blue Pill Inside (Reactor, device cores, skaarOS Linux), full Reactor and Device Core licenses included
• Format: 19" rack, 1U
• Weight: 516 g
• Recommended (not included): Cat 6 S/FTP Ethernet cable or better
