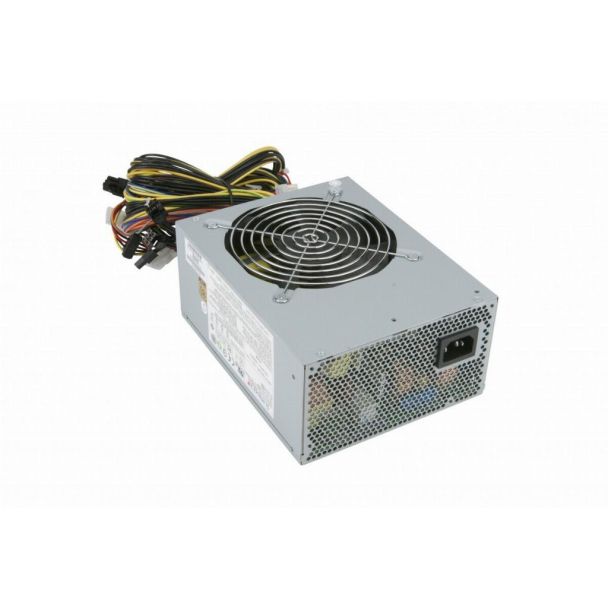

Supermicro PWS-903-PQ power supply unit 900 W 24-pin ATX ATX Metallic
GTIN: 0672042096619
Supermicro PWS-903-PQ, 900 W, 100 - 240 V, 50 - 60 Hz, 6 - 10 A, Active, 25 A
The Supermicro PWS-903-PQ is an 80 Plus Gold level power supply capable of continuously supplying 900W output power at 90% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages and a quiet fan to keep it cool under heavy loads. This power supply is designed to not only provide you reliable power to your desktop or workstation but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 100,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU. All materials contained comply with RoHS requirements and is certified by Supermicro.
| Product Condition | New |
|---|---|
| Manufacturer | Supermicro |
| manufacturer code | PWS-903-PQ |
| Ean | 0672042096619 |
| Warranty | 3 year |
| Product title | Supermicro PWS-903-PQ power supply unit 900 W 24-pin ATX ATX Metallic |
| Long Product Name | 900W, PS2/ATX, 80 Plus Gold, 100-240Vac, 50-60Hz, 10-6A, 24-Pin ATX |
| Product specifications | PowerTotal power* 900 W AC input voltage* 100 - 240 V AC input frequency 50 - 60 Hz Input current 6 - 10 A Power Factor Correction (PFC) type Active Max output current (+3.3V) 25 A Max output current (+12V) 25 A Max output current (+12V1) 25 A Max output current (+12V2) 25 A Max output current (+12V3) 25 A Max output current (+12V4) 25 A Max output current (+5V) 25 A Efficiency 90% Ports & interfacesMotherboard power connector* 24-pin ATX EPS power connector (8-pin) Yes Ports & interfacesATX Power connector (24-pin) Yes Cabling type Non-Modular Performance80 PLUS certification* 80 PLUS Gold Purpose* PC Power supply unit (PSU) form factor* ATX DesignProduct colour Metallic Weight & dimensionsWidth 150 mm Depth 190 mm Height 86 mm Logistics dataHarmonized System (HS) code 84733020 |
