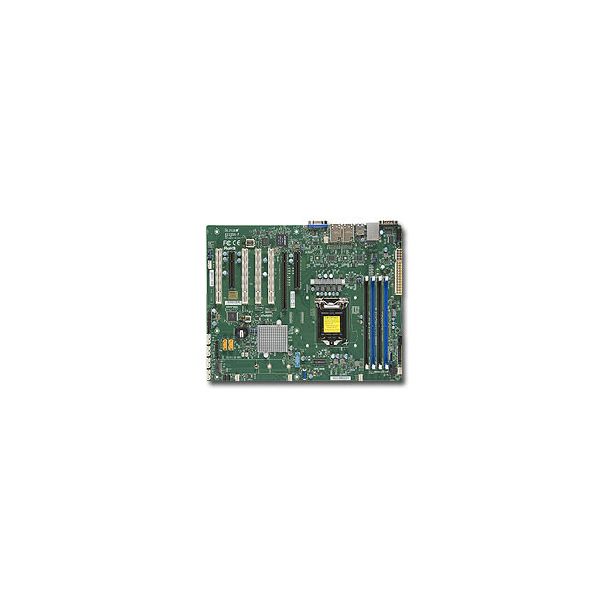

Supermicro X11SSA-F Intel® C236 LGA 1151 (Socket H4) ATX
GTIN: 0672042198610
Single socket H4 (LGA 1151), Intel Xeon E3-1200v5/Core i3/Celeron/Pentium, Intel C236 chipset, Up to 64GB Unbuffered ECC UDIMM DDR4 2133MHz, 4x DIMM slots, Dual GbE LAN, Intel i210-AT, M.2 NGFF, Retail Pack
Supermicro's single processor Socket H4 designs feature the Intel® C236/C232 chipset which support the Intel® Xeon E3-1200 v5 processor family and Intel® 6th Gen Core i7/i5/i3 processor family. With outstanding features that include up to 64GB of fast DDR4 DRAM in 4 DIMMS, onboard IPMI or vPro, USB 3.0/USB 3.1, PCI-E 3.0 M.2 and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller, 4K HD graphics resolution and 3 displays with HDMI, DP, and DVI ports. Designed with performance, reliability, manageability and long life in mind, Supermicro's single processor motherboards are the perfect solution for a variety of server, workstation and embedded applications.
| Product Condition | New |
|---|---|
| Manufacturer | Supermicro |
| manufacturer code | MBD-X11SSA-F-O |
| Ean | 0672042198610 |
| Product title | Supermicro X11SSA-F Intel® C236 LGA 1151 (Socket H4) ATX |
| Long Product Name | Single socket H4 (LGA 1151), Intel Xeon E3-1200v5/Core i3/Celeron/Pentium, Intel C236 chipset, Up to 64GB Unbuffered ECC UDIMM DDR4 2133MHz, 4x DIMM slots, Dual GbE LAN, Intel i210-AT, M.2 NGFF, Retail Pack |
| Product specifications | ProcessorProcessor manufacturer* Intel Processor socket* LGA 1151 (Socket H4) Intel Xeon series E3-1200 Processor thermal power (max) 80 W MemorySupported memory types* DDR4-SDRAM Memory voltage 1.2 V ECC сompatibility ECC Supported memory clock speeds 1600,1866,2133 MHz Maximum internal memory* 64 GB Storage controllersSupported storage drive interfaces* SATA III RAID support Yes RAID levels 0, 1, 5, 10 GraphicsOn-board graphics card model Aspeed AST2400 Internal I/OUSB 2.0 connectors* 4 USB 3.2 Gen 1 (3.1 Gen 1) connectors* 2 Number of SATA III connectors* 6 Chassis intrusion connector Yes Number of COM connectors 1 TPM connector Yes Rear panel I/O portsUSB 2.0 ports quantity* 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity* 2 Ethernet LAN (RJ-45) ports* 2 IPMI LAN (RJ-45) port Yes VGA (D-Sub) ports quantity* 1 COM ports quantity 1 NetworkEthernet LAN Yes Ethernet interface type Fast Ethernet, Gigabit Ethernet Wi-Fi* No FeaturesMotherboard chipset* Intel® C236 Component for* Server Motherboard form factor* ATX Expansion slotsPCI Express x8 (Gen 3.x) slots 2 PCI slots 4 BIOSBIOS type* AMI BIOS memory size 16 Mbit ACPI version 5.0 Processor special featuresTrusted Platform Module (TPM) Yes Trusted Platform Module (TPM) version 1.2 Logistics dataHarmonized System (HS) code 84733020 Weight & dimensionsWidth 305 mm Depth 224 mm Other featuresPCI Express x4 (Gen 3.x) slots 1 Supported DIMM module capacities 4GB, 8GB, 16GB Number of DIMM slots 4 Number of processors supported 1 Technical detailsCompliance certificates RoHS |
| Essential qualities |
|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Supported memory types | DDR4-SDRAM |
| Maximum internal memory | 64 GB |
| Supported storage drive interfaces | SATA III |
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 6 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Wi-Fi | No |
| Motherboard form factor | ATX |
| Component for | Server |
| Motherboard chipset | Intel® C236 |
| BIOS type | AMI |
