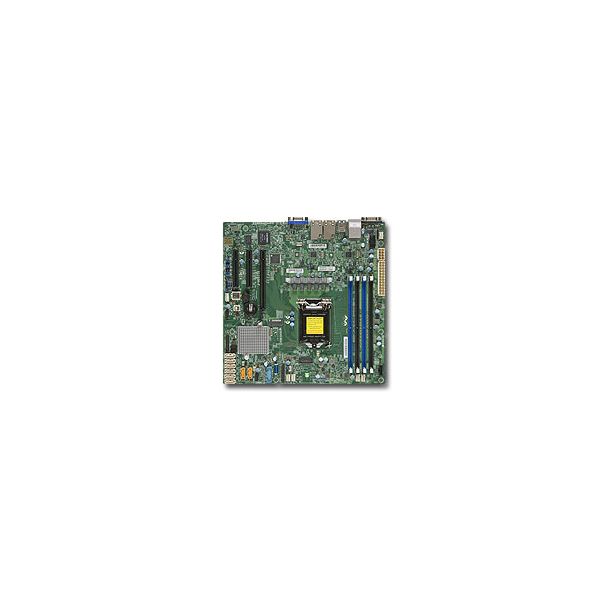

Supermicro X11SSH-F Intel® C236 LGA 1151 (Socket H4) micro ATX
GTIN: 0672042198115
Single socket H4 (LGA 1151), Intel C236 chipset, Up to 64GB Unbuffered, ECC UDIMM DDR4 2133MHz; 4x DIMM, Retail Pack
Supermicro's single processor Socket H4 designs feature the Intel® C236/C232 chipset which support the Intel® Xeon E3-1200 v5 processor family and Intel 6th Gen Core i7/i5/i3 processor family. With outstanding features that include up to 64GB of fast DDR4 DRAM in 4 DIMMS, onboard IPMI or vPro, USB 3.0/USB 3.1, PCI-E 3.0 M.2 and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller, 4K HD graphics resolution and 3 displays with HDMI, DP, and DVI ports. Designed with performance, reliability, manageability and long life in mind, Supermicro's single processor motherboards are the perfect solution for a variety of server, workstation and embedded applications.
| Product Condition | New |
|---|---|
| Manufacturer | Supermicro |
| manufacturer code | MBD-X11SSH-F-O |
| Ean | 0672042198115 |
| Warranty | 3 year |
| Product title | Supermicro X11SSH-F Intel® C236 LGA 1151 (Socket H4) micro ATX |
| Long Product Name | Single socket H4 (LGA 1151), Intel C236 chipset, Up to 64GB Unbuffered, ECC UDIMM DDR4 2133MHz; 4x DIMM, Retail Pack |
| Product specifications | ProcessorProcessor manufacturer* Intel Processor socket* LGA 1151 (Socket H4) Intel Xeon series E3-1200 Processor number of cores supported 4 Processor thermal power (max) 80 W ECC supported by processor Yes MemorySupported memory types* DDR4-SDRAM Memory voltage 1.2 V ECC сompatibility ECC Supported memory clock speeds 1600,1866,2133 MHz Maximum internal memory* 64 GB Storage controllersSupported storage drive interfaces* SATA III RAID support Yes RAID levels 0, 1, 5, 10 GraphicsOn-board graphics card model Aspeed AST2400 Internal I/OUSB 2.0 connectors* 4 Number of SATA III connectors* 8 TPM connector Yes Rear panel I/O portsUSB 2.0 ports quantity* 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity* 2 Ethernet LAN (RJ-45) ports* 2 IPMI LAN (RJ-45) port Yes VGA (D-Sub) ports quantity* 1 NetworkEthernet LAN Yes Ethernet interface type Gigabit Ethernet Wi-Fi* No FeaturesMotherboard chipset* Intel® C236 Motherboard form factor* micro ATX Expansion slotsPCI Express x8 (Gen 3.x) slots 2 BIOSBIOS type* AMI BIOS memory size 16 Mbit ACPI version 4.0 Processor special featuresTrusted Platform Module (TPM) Yes Intel® Virtualization Technology (Intel® VT) VT-x Intel Trusted Execution Technology Yes Intel® AES New Instructions (Intel® AES-NI) Yes Trusted Platform Module (TPM) version 1.2 Logistics dataHarmonized System (HS) code 84733020 Weight & dimensionsWidth 224 mm Depth 224 mm Other featuresPCI Express x4 (Gen 3.x) slots 1 Supported DIMM module capacities 4GB, 8GB, 16GB Maximum UDIMM memory 64 GB Number of DIMM slots 4 Number of processors supported 1 Intel® vPro™ Platform Eligibility Yes Technical detailsUSB version 2.0/3.2 Gen 1 (3.1 Gen 1) Compliance certificates RoHS |
| Essential qualities |
|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Supported memory types | DDR4-SDRAM |
| Maximum internal memory | 64 GB |
| Supported storage drive interfaces | SATA III |
| USB 2.0 connectors | 4 |
| Number of SATA III connectors | 8 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Wi-Fi | No |
| Motherboard form factor | micro ATX |
| Motherboard chipset | Intel® C236 |
| BIOS type | AMI |
