Supermicro's single processor Socket H4 designs feature the Intel® C236/C232 chipset which support the Intel® Xeon E3-1200 v5 processor family and Intel 6th Gen Core i7/i5/i3 processor family. With outstanding features that include up to 64GB of fast DDR4 DRAM in 4 DIMMS, onboard IPMI or vPro, USB 3.0/USB 3.1, PCI-E 3.0 M.2 and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller, 4K HD graphics resolution and 3 displays with HDMI, DP, and DVI ports. Designed with performance, reliability, manageability and long life in mind, Supermicro's single processor motherboards are the perfect solution for a variety of server, workstation and embedded applications.
| Product Condition | New |
|---|---|
| Manufacturer | Supermicro |
| manufacturer code | MBD-X11SSH-F-B |
| Ean | 0672042198641 |

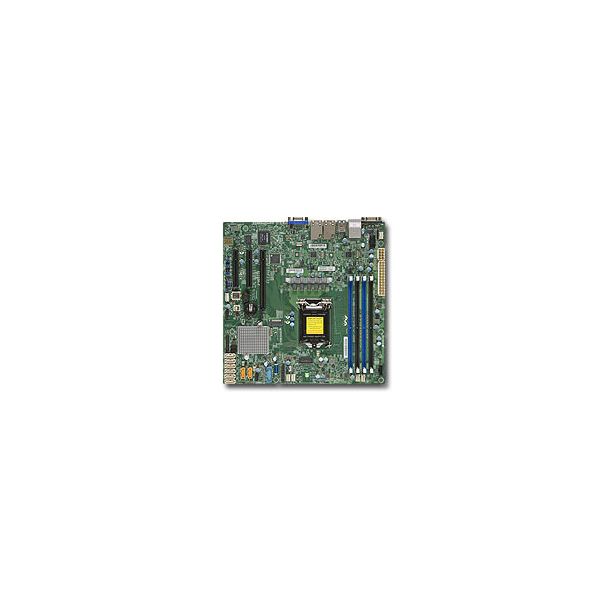

| Product title | Supermicro X11SSH-F Intel® C236 LGA 1151 (Socket H4) micro ATX |
| Long Product Name | Single socket H4 (LGA 1151), Intel C236 chipset, Up to 64GB Unbuffered, ECC UDIMM DDR4 2133MHz; 4x DIMM, Bulk Pack |
| Product specifications | ProcessorProcessor manufacturer* Intel Processor socket* LGA 1151 (Socket H4) Intel Xeon series E3-1200 Processor thermal power (max) 80 W MemorySupported memory types* DDR4-SDRAM Memory voltage 1.2 V ECC сompatibility ECC Supported memory clock speeds 1600,1866,2133 MHz Maximum internal memory* 64 GB Storage controllersSupported storage drive interfaces* SATA III RAID support Yes RAID levels 0, 1, 5, 10 GraphicsOn-board graphics card model Aspeed AST2400 Internal I/OUSB 2.0 connectors* 4 Number of SATA III connectors* 8 TPM connector Yes Rear panel I/O portsUSB 2.0 ports quantity* 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity* 2 Ethernet LAN (RJ-45) ports* 2 IPMI LAN (RJ-45) port Yes VGA (D-Sub) ports quantity* 1 NetworkEthernet LAN Yes Ethernet interface type Gigabit Ethernet Wi-Fi* No FeaturesMotherboard chipset* Intel® C236 Motherboard form factor* micro ATX Expansion slotsPCI Express x8 (Gen 3.x) slots 2 BIOSBIOS type* AMI BIOS memory size 16 Mbit ACPI version 4.0 Processor special featuresIntel® Anti-Theft Technology (Intel® AT) No Processor special featuresIntel® Clear Video HD Technology (Intel® CVT HD) No Intel Dual Display Capable Technology No Intel Fast Memory Access No Trusted Platform Module (TPM) Yes Intel® Virtualization Technology (Intel® VT) VT-x Intel Trusted Execution Technology Yes Intel Remote PC Assist Technology (RPAT) No Intel Quiet System Technology (QST) No Intel Quick Resume Technology No Intel® Matrix Storage Technology (Intel® MST) No Intel I/O Acceleration Technology No Intel Flex Memory Access No Intel Client Initiated Remote Access (CIRA) technology No Intel® Active Management Technology (Intel® AMT) No Intel® AES New Instructions (Intel® AES-NI) Yes Intel AC'97 technology No Trusted Platform Module (TPM) version 1.2 Intel® High Definition Audio (Intel® HD Audio) No Intel Unite Technology No Intel Rapid Storage Technology enterprise No Intelligent Platform Management Interface (IPMI) support No Intel® Remote Wake Technology (Intel® RWT) No Intel Advanced Management Technology No Intel Server Management Software No Intel Server Customization Technology No Intel Build Assurance Technology No Intel Quiet Thermal Technology No Intel Efficient Power Technology No Intel Intelligent Power Node Manager No Weight & dimensionsWidth 224 mm Depth 224 mm Other featuresPCI Express x4 (Gen 3.x) slots 1 Supported DIMM module capacities 4GB, 8GB, 16GB Maximum UDIMM memory 64 GB Number of DIMM slots 4 Number of processors supported 1 Intel® vPro™ Platform Eligibility Yes |
| Essential qualities |
|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Supported memory types | DDR4-SDRAM |
| Maximum internal memory | 64 GB |
| Supported storage drive interfaces | SATA III |
| USB 2.0 connectors | 4 |
| Number of SATA III connectors | 8 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Wi-Fi | No |
| Motherboard form factor | micro ATX |
| Motherboard chipset | Intel® C236 |
| BIOS type | AMI |
