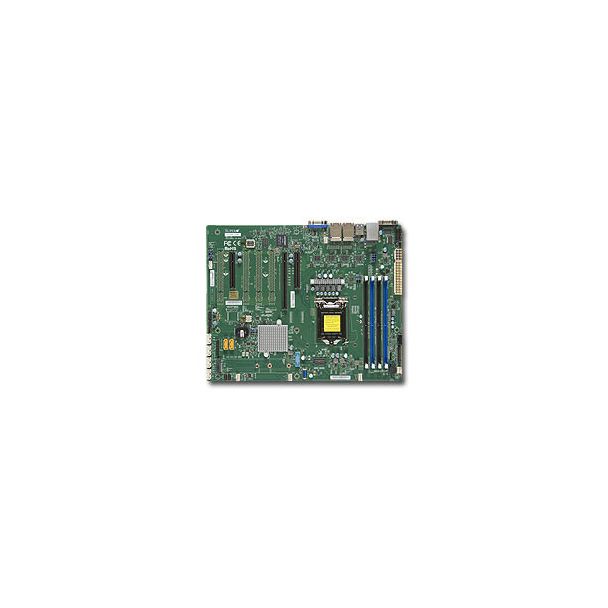

Supermicro X11SSi-LN4F Intel® C236 LGA 1151 (Socket H4) ATX
GTIN: 0672042205936
Single socket H4 (LGA 1151), Intel Xeon E3-1200 v5, 6th Gen. Core i3, Celeron, Pentium, Intel C236 chipset, Up to 64GB Unbuffered ECC UDIMM DDR4 2133MHz 4x DIMM slots, Bulk Pack
Supermicro's single processor Socket H4 designs feature the Intel C236/C232 chipset which support the Intel® Xeon E3-1200 v5 processor family and Intel® 6th Gen Core i7/i5/i3 processor family. With outstanding features that include up to 64GB of fast DDR4 DRAM in 4 DIMMS, onboard IPMI or vPro, USB 3.0/USB 3.1, PCI-E 3.0 M.2 and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller, 4K HD graphics resolution and 3 displays with HDMI, DP, and DVI ports. Designed with performance, reliability, manageability and long life in mind, Supermicro's single processor motherboards are the perfect solution for a variety of server, workstation and embedded applications.
| Product Condition | New |
|---|---|
| Manufacturer | Supermicro |
| manufacturer code | MBD-X11SSi-LN4F-B |
| Ean | 0672042205936 |
| Product title | Supermicro X11SSi-LN4F Intel® C236 LGA 1151 (Socket H4) ATX |
| Long Product Name | Single socket H4 (LGA 1151), Intel Xeon E3-1200 v5, 6th Gen. Core i3, Celeron, Pentium, Intel C236 chipset, Up to 64GB Unbuffered ECC UDIMM DDR4 2133MHz 4x DIMM slots, Bulk Pack |
| Product specifications | ProcessorProcessor manufacturer* AMD Processor socket* LGA 1151 (Socket H4) Intel Xeon series E3-1200 Processor thermal power (max) 80 W MemorySupported memory types* DDR4-SDRAM Memory voltage 1.2 V ECC сompatibility ECC Supported memory clock speeds 1600,1866,2133 MHz Maximum internal memory* 64 GB Storage controllersSupported storage drive interfaces* SATA III RAID support Yes RAID levels 0, 1, 5, 10 GraphicsOn-board graphics card model Aspeed AST2400 Internal I/OUSB 2.0 connectors* 4 Number of SATA III connectors* 6 Number of COM connectors 1 TPM connector Yes Rear panel I/O portsUSB 2.0 ports quantity* 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity* 2 Ethernet LAN (RJ-45) ports* 4 IPMI LAN (RJ-45) port Yes VGA (D-Sub) ports quantity* 1 COM ports quantity 1 NetworkEthernet LAN Yes Ethernet interface type Fast Ethernet, Gigabit Ethernet Wi-Fi* No FeaturesMotherboard chipset* Intel® C236 Motherboard form factor* ATX Expansion slotsPCI Express x8 (Gen 3.x) slots 2 BIOSBIOS type* AMI BIOS memory size 16 Mbit ACPI version 4.0 Processor special featuresTrusted Platform Module (TPM) Yes Trusted Platform Module (TPM) version 1.2 Logistics dataHarmonized System (HS) code 84733020 Weight & dimensionsWidth 305 mm Depth 224 mm Other featuresPCI Express x4 (Gen 3.x) slots 1 Supported DIMM module capacities 4GB, 8GB, 16GB Number of processors supported 1 Technical detailsCompliance certificates RoHS |
| Essential qualities |
|
| Processor manufacturer | AMD |
| Processor socket | LGA 1151 (Socket H4) |
| Supported memory types | DDR4-SDRAM |
| Maximum internal memory | 64 GB |
| Supported storage drive interfaces | SATA III |
| USB 2.0 connectors | 4 |
| Number of SATA III connectors | 6 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 4 |
| Wi-Fi | No |
| Motherboard form factor | ATX |
| Motherboard chipset | Intel® C236 |
| BIOS type | AMI |
