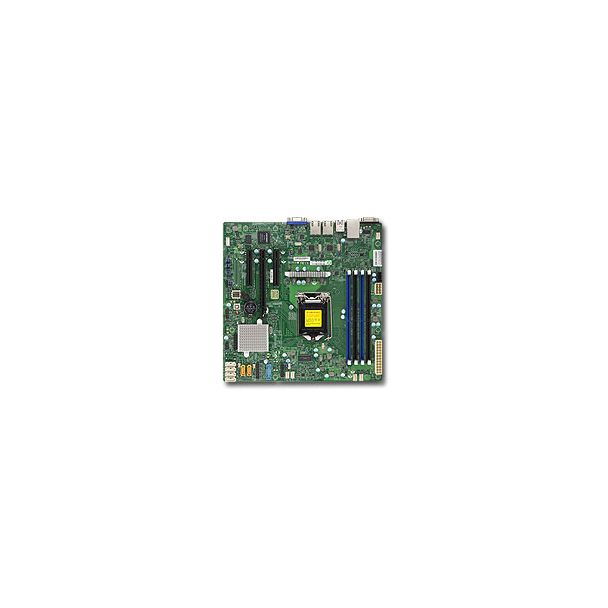

Supermicro X11SSL Intel® C232 LGA 1151 (Socket H4) micro ATX
GTIN: 0672042200931
Single socket H4 (LGA 1151), Intel Xeon, Intel Core i3, Intel Celeron and Pentium, Intel C232, Up to 64GB Unbuffered ECC UDIMM, DDR4 2133MHz, 4x DIMM, Bulk Pack
Supermicro's single processor Socket H4 designs feature the Intel® C236/C232 chipset which support the Intel® Xeon E3-1200 v5 processor family and Intel® 6th Gen Core i7/i5/i3 processor family. With outstanding features that include up to 64GB of fast DDR4 DRAM in 4 DIMMS, onboard IPMI or vPro, USB 3.0/USB 3.1, PCI-E 3.0 M.2 and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller, 4K HD graphics resolution and 3 displays with HDMI, DP, and DVI ports. Designed with performance, reliability, manageability and long life in mind, Supermicro's single processor motherboards are the perfect solution for a variety of server, workstation and embedded applications.
| Product Condition | New |
|---|---|
| Manufacturer | Supermicro |
| manufacturer code | MBD-X11SSL-O |
| Ean | 0672042200931 |
| Product title | Supermicro X11SSL Intel® C232 LGA 1151 (Socket H4) micro ATX |
| Long Product Name | Single socket H4 (LGA 1151), Intel Xeon, Intel Core i3, Intel Celeron and Pentium, Intel C232, Up to 64GB Unbuffered ECC UDIMM, DDR4 2133MHz, 4x DIMM, Bulk Pack |
| Product specifications | ProcessorProcessor manufacturer* Intel Processor socket* LGA 1151 (Socket H4) Compatible processor series* Intel® Celeron®, Intel® Pentium®, Intel® Xeon® Intel Xeon series E3-1200 Processor thermal power (max) 80 W MemorySupported memory types* DDR4-SDRAM Memory voltage 1.2 V ECC сompatibility ECC Supported memory clock speeds 1600,1866,2133,2400 MHz Maximum internal memory* 64 GB Storage controllersSupported storage drive interfaces* SATA III RAID support Yes RAID levels 0, 1, 5, 10 GraphicsOn-board graphics card model Aspeed AST1400 Internal I/OUSB 2.0 connectors* 4 USB 3.2 Gen 1 (3.1 Gen 1) connectors* 2 Number of SATA III connectors* 6 Chassis intrusion connector Yes TPM connector Yes Rear panel I/O portsUSB 2.0 ports quantity* 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity* 2 Ethernet LAN (RJ-45) ports* 2 VGA (D-Sub) ports quantity* 1 COM ports quantity 1 NetworkEthernet LAN Yes Ethernet interface type Fast Ethernet, Gigabit Ethernet Wi-Fi* No FeaturesMotherboard chipset* Intel® C232 Component for* Server Motherboard form factor* micro ATX Expansion slotsPCI Express x8 (Gen 3.x) slots 2 BIOSBIOS type* AMI BIOS memory size 16 Mbit ACPI version 4.0 Processor special featuresTrusted Platform Module (TPM) Yes Trusted Platform Module (TPM) version 1.2 Operational conditionsStorage temperature (T-T) -40 - 70 °C Operating temperature (T-T) 0 - 50 °C Operating relative humidity (H-H) 8 - 90% Storage relative humidity (H-H) 5 - 95% Logistics dataHarmonized System (HS) code 84733020 Weight & dimensionsWidth 244 mm Depth 244 mm Packaging contentCables included SATA Other featuresPCI Express x4 (Gen 3.x) slots 1 Supported DIMM module capacities 4GB, 8GB, 16GB Quick installation guide Yes Number of DIMM slots 4 Number of processors supported 1 Technical detailsCompliance certificates RoHS |
| Essential qualities |
|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium®, Intel® Xeon® |
| Supported memory types | DDR4-SDRAM |
| Maximum internal memory | 64 GB |
| Supported storage drive interfaces | SATA III |
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 6 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Wi-Fi | No |
| Motherboard form factor | micro ATX |
| Component for | Server |
| Motherboard chipset | Intel® C232 |
| BIOS type | AMI |
