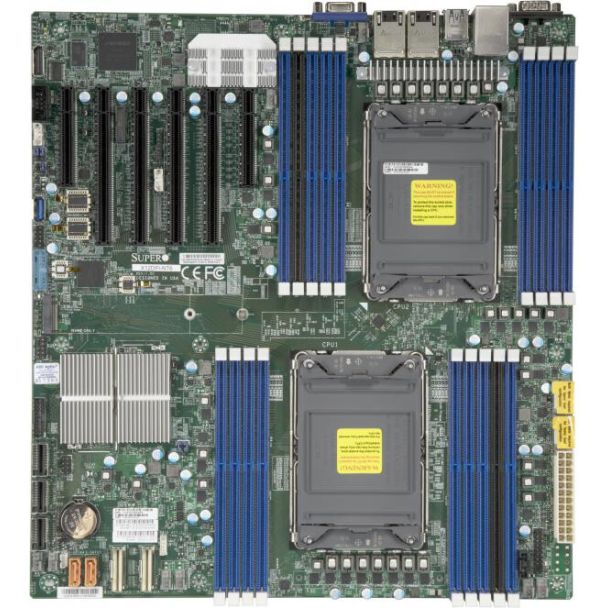

Supermicro X12DPi-N6 Intel® C621 LGA 3647 (Socket P) Extended ATX
GTIN: 0672042451463
Supermicro X12DPi-N6, Intel, LGA 3647 (Socket P), Intel® Xeon®, DDR4-SDRAM, 4 TB, DIMM
3rd Gen Intel® Xeon® Scalable processors
Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
Intel® C621A
Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz
Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 18 DIMM slotsP1-DIMMB2 and P2-DIMMB2 are reserved for Intel Optane Persistent Memory 200 Series only.
2 PCI-E 4.0 x8,
4 PCI-E 4.0 x16,
2 PCI-E 4.0 NVMe x8 Internal Port(s)
M.2 Interface: 1 PCI-E 4.0 x4
M.2 Form Factor: 2280/22110
M.2 Key: M-Key
2 VGA (1 rear bezel, 1 front panel) ports
Intel® C621A controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Dual LAN with Intel® i350 Gigabit Ethernet Controller
| Product Condition | New |
|---|---|
| Manufacturer | Supermicro |
| manufacturer code | MBD-X12DPI-N6-O |
| Ean | 0672042451463 |
| Product title | Supermicro X12DPi-N6 Intel® C621 LGA 3647 (Socket P) Extended ATX |
| Long Product Name | E-ATX, LGA-4189, 4TB RAM, DDR4, 3200Mhz, M.2 |
| Product specifications | ProcessorProcessor manufacturer* Intel Processor socket* LGA 3647 (Socket P) Compatible processor series* Intel® Xeon® MemorySupported memory types* DDR4-SDRAM Number of memory slots* 16 Memory slots type DIMM Memory voltage 1.2 V ECC сompatibility ECC Supported memory clock speeds 3200 MHz Maximum internal memory* 4 TB Maximum RDIMM memory 4 TB Storage controllersSupported storage drive interfaces* M.2, SATA GraphicsOn-board graphics card model Aspeed AST2600 Internal I/OUSB 2.0 connectors* 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors* 2 Number of SATA III connectors* 14 TPM connector Yes Rear panel I/O portsUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity* 4 VGA (D-Sub) ports quantity* 2 Rear panel I/O portsSerial ports quantity 2 NetworkEthernet LAN Yes Ethernet interface type Gigabit Ethernet LAN controller Intel® I350 FeaturesMotherboard chipset* Intel® C621 PC health monitoring LED, Temperature, Voltage Component for* Server Motherboard form factor* Extended ATX Motherboard chipset family* NVIDIA Expansion slotsPCI Express x8 slots 4 PCI Express x16 slots 4 Number of M.2 (M) slots 1 BIOSBIOS type* UEFI AMI Operational conditionsStorage temperature (T-T) -40 - 70 °C Operating temperature (T-T) 10 - 35 °C Operating relative humidity (H-H) 8 - 90% Storage relative humidity (H-H) 5 - 95% |
