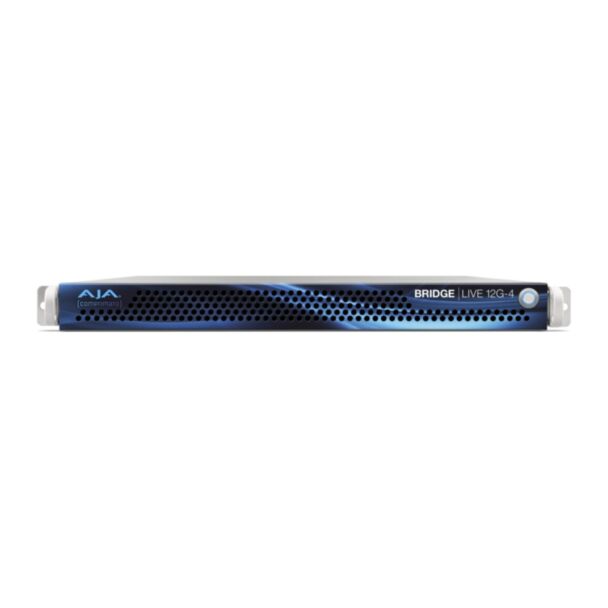

AJA BLVE-12G-4 Turnkey System - 1RU Streaming and Transcoding Appliance 4-Channel UltraHD I/O

AJA BRIDGE LIVE 12G-4 Streaming and Transcoding System BLVE-12G-4

AJA BRIDGE LIVE 12G-4 is the high-density multi-channel UltraHD version of BRIDGE LIVE, a broadcast-quality, low-latency turnkey system developed by AJA and Comprimato. Its 12G-SDI I/O supports up to four UltraHD channels for real-time, bidirectional encoding, decoding and transcoding between SDI and a wide range of IP video standards.

It is designed for remote production (REMI), synchronous multi-channel contribution and SDI backhaul, remote collaboration, direct-to-audience streaming and multi-bit rate/multi-format delivery. H.265, H.264 and MPEG-2 are supported up to 4x 60p UltraHD (MPEG-2 in HD), while NDI, JPEG 2000 and JPEG XS can be added with optional licenses. Pairs of systems can transport multiple SDI sources in lockstep, also with HDR, over dedicated lines or the public internet.

Key features

• 4 x bidirectional 12G-SDI I/O for up to 4 UltraHD channels
• Bidirectional encode/decode/transcode: H.265 (HEVC), H.264 (AVC), H.262 (MPEG-2); NDI, JPEG 2000 (TR-01) and JPEG XS (TR-07) as optional licenses
• Protocols: SRT, UDP, HLS, RTP, RTMP/S, MPTS (input)
• Transports: MPEG-TS, NDI, AVC-TS, Fragmented MP4
• Multi-bit rate/format distribution and ABR ladder profiles for OTT hand-off
• Selectable 12, 10 and 8-bit, 4:2:2 and 4:2:0 profiles depending on the codec
• Metadata: MPEG-2 ANC, SMPTE 2038, SCTE-35/SCTE-104 ad insertion markers, CEA-608/708 closed captions, timecode, H.264 SEI
• Hitless redundancy via ST 2022-7 and SRT bonding
• Remote WebUI or local GUI; monitoring, control and automation via REST API or SNMP
• Turnkey 1RU rackmount system with dual 10 GigE and dual redundant power supplies
• Synchronous multi-channel/multi-system transport for SDI backhaul or cloud delivery
• Administration via browser or local monitor on the built-in DisplayPort
