AJA BLVE-3G8-R0 Turnkey System - 1RU Streaming and Transcoding Appliance 8 Bidirectional 3G-SDI I/O

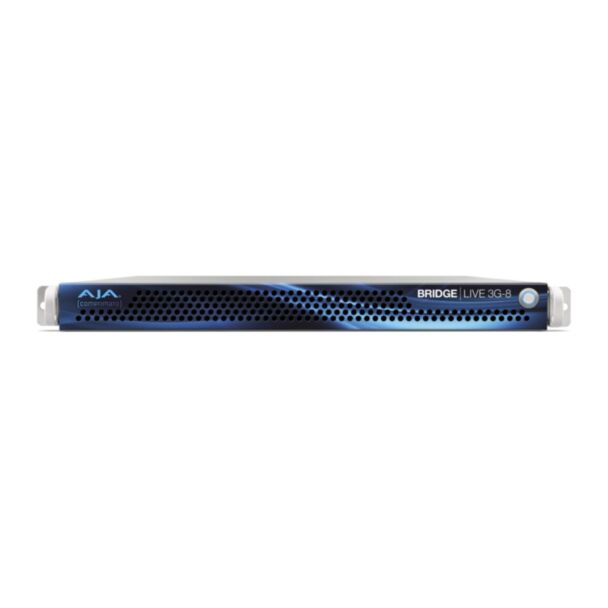

AJA BRIDGE LIVE 3G-8 Streaming and Transcoding System BLVE-3G8-R0

AJA BRIDGE LIVE 3G-8 is the multi-channel HD model of BRIDGE LIVE, a broadcast-quality, low-latency turnkey system developed by AJA and Comprimato. Its 3G-SDI I/O supports up to eight HD channels simultaneously, including multiple frame-rate families at the same time, for real-time, bidirectional encoding, decoding and transcoding between SDI and a wide range of IP video standards.

It is designed for remote production (REMI), synchronous multi-channel contribution and SDI backhaul, remote collaboration, direct-to-audience streaming and multi-bit rate/multi-format delivery. H.265 and H.264 are supported up to 8x 60p HD, MPEG-2 up to 8x 30p or 60i HD, while NDI, JPEG 2000 and JPEG XS can be added with optional licenses. UltraHD is supported from IP-based sources.

Key features

• 8 x bidirectional 3G-SDI I/O for up to 8 HD channels
• Multiple frame-rate families simultaneously
• Bidirectional encode/decode/transcode: H.265 (HEVC), H.264 (AVC), H.262 (MPEG-2); NDI, JPEG 2000 (TR-01) and JPEG XS (TR-07) as optional licenses
• Protocols: SRT, UDP, HLS, RTP, RTMP/S, MPTS (input)
• Transports: MPEG-TS, NDI, AVC-TS, Fragmented MP4
• Multi-bit rate/format distribution and ABR ladder profiles for OTT hand-off
• Selectable 12, 10 and 8-bit, 4:2:2 and 4:2:0 profiles depending on the codec
• Metadata: MPEG-2 ANC, SMPTE 2038, SCTE-35/SCTE-104 ad insertion markers, CEA-608/708 closed captions, timecode, H.264 SEI
• Hitless redundancy via ST 2022-7 and SRT bonding
• Remote WebUI or local GUI; monitoring, control and automation via REST API or SNMP
• Turnkey 1RU rackmount system with dual 10 GigE and dual redundant power supplies
• Synchronous multi-channel/multi-system transport for SDI backhaul or cloud delivery
• Administration via browser or local monitor on the built-in DisplayPort
