AJA DANTE-12GAM dual video channel upgrade perpetual license

AJA DANTE-12GAM Dual Video Channel Upgrade License

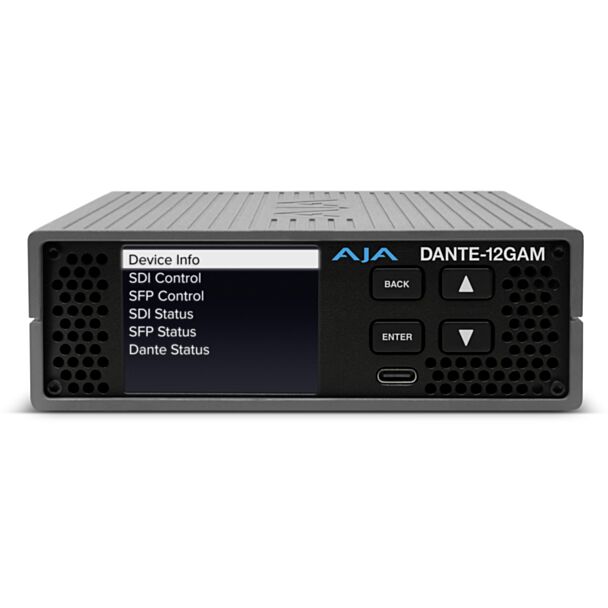

AJA DANTE-12GAM is a 12G-SDI audio embedder/disembedder that bridges SDI and the Dante, AES67 and SMPTE ST 2110-30 audio networks. The base model has one 12G-SDI input and output, each carrying 16 audio channels, for a total of 32 Dante audio channels.

This perpetual software license (the DANTE-12GAM Video SFP software upgrade license) upgrades an existing single-channel DANTE-12GAM to the dual video channel version at any time after purchase. Together with an AJA FIBERLC-TR-12G fiber or BNC-TR-12G coax SFP module installed in the unit, it enables a second independent 12G-SDI channel, bringing support to up to 64 channels of Dante audio, as on the DANTE-12GAM-TR-LC and DANTE-12GAM-TR-BNC versions.

Key features

• Upgrades the single-channel DANTE-12GAM to dual video channel operation
• Second independent 12G-SDI input/output via SFP, 16 embedded audio channels per SDI path
• Up to 64 channels of Dante audio embedding/disembedding in total
• Works with the AJA FIBERLC-TR-12G (dual LC 12G fiber transceiver) or BNC-TR-12G (dual BNC 12G coax transceiver) SFP
• Can be added at any time after purchase of the base unit

Compatibility

• AJA DANTE-12GAM (single-channel base model)
• AJA FIBERLC-TR-12G and BNC-TR-12G SFP modules

Notes

• License only: it requires a DANTE-12GAM and an AJA FIBERLC-TR-12G or BNC-TR-12G SFP module, both sold separately.
• The license is tied to the serial number of the DANTE-12GAM (shown in the web UI under Info or on the unit) and is delivered as a license file.
• Not needed for the DANTE-12GAM-TR-LC and DANTE-12GAM-TR-BNC versions, which are already dual channel and include the SFP.

Specifications

• Second channel connectivity: FIBERLC-TR-12G (dual LC 12G fiber transceiver SFP, SMPTE 297/292/424/2081/2082) or BNC-TR-12G (dual BNC 12G coax transceiver SFP, SMPTE 292/424/2081/2082)
• Audio per SDI path: 16 embedded channels, SMPTE 299M, 24-bit 48 kHz
• Total Dante audio after upgrade: up to 64 channels
• License type: perpetual, per DANTE-12GAM unit
