AJA DANTE12G-LC-R0 12G 64-Ch Dante Embedder/Disembedder (LC SFP installed and Dual Videon License installed)
Dual-channel DANTE-12GAM with LC fiber SFP and dual video license: 12G-SDI BNC plus 12G-SDI fiber LC input and output, 16 audio channels each, up to 64 Dante channels, AES67 and ST 2110-30 compatible.
AJA DANTE-12GAM-TR-LC 12G-SDI 64-Channel Dante Audio Embedder/Disembedder with LC Fiber DANTE12G-LC-R0

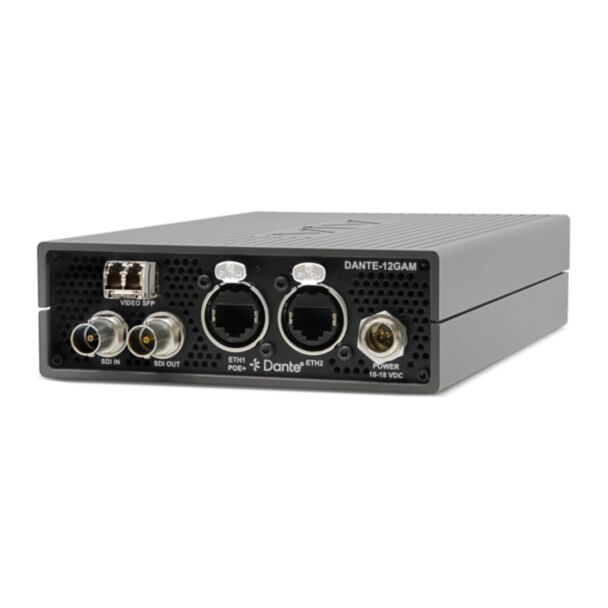

The AJA DANTE-12GAM is an Audio over IP (AoIP) Mini-Converter that embeds and disembeds SDI audio to and from a Dante network. Besides Dante streams it works with AES67 and SMPTE ST 2110-30 IP audio, bridging SDI infrastructure with IP audio for live events, fly kits, OB vans and facilities. It is housed in a rugged aluminium enclosure with front-panel display, push buttons and front-to-back active cooling.
This is the dual-channel TR-LC version, supplied with the FiberLC-TR-12G Dual LC 12G Fiber Transceiver SFP and the dual video license installed: alongside the 12G-SDI BNC connectors it adds an independent 12G-SDI fiber LC input and output, each carrying 16 embedded audio channels, for up to 64 Dante channels, with two internal signal generators.
Key features
- 12G-SDI BNC plus 12G-SDI fiber LC inputs and outputs, up to 64 Dante channels
- Two internal signal generators
- 12G/6G/3G/1.5G-SDI audio embedding/disembedding to and from Dante
- 16 embedded audio channels per SDI input and per SDI output
- Dante, AES67 and SMPTE ST 2110-30 compatible, PTPv2
- Primary and secondary etherCON GigE ports for Dante network redundancy
- PoE+ on the primary Ethernet port
- HDR pass-through
- Internal SDI signal generator for sending Dante audio over SDI without an external source
- AJA Web UI for remote status and configuration; USB-C for initial static IP setup with AJA eMini-Setup
- Front-panel LCD and four control buttons (Back, Enter, Up, Down)
Notes
- FiberLC-TR-12G Dual LC 12G Fiber Transceiver SFP and dual video license included
Specifications
- Video formats: 4K, UltraHD, 2K and HD up to 60p, RGB and YCbCr 4:4:4/4:2:2, 10 or 12-bit (raster and frame rate dependent)
- SDI audio: SMPTE 299M, 24-bit 48 kHz, 16 channels per SDI path
- Dante audio: 44.1, 48, 88.2, 96 kHz; PCM 16/24/32
- Network: 2 x Neutrik etherCON RJ-45, 100/1000 Ethernet
- Cable equalization (Belden 1694A): 12 Gbps 60 m, 3 Gbps 180 m
- Dimensions (w x d x h): 127 x 205.49 x 41.81 mm
- Weight: 0.87 kg
- Power: 10-18 V DC via 4-pin mini-XLR (25 W max) or IEEE 802.3at PoE+ on the primary port; 60 W AC adapter included
- Operating temperature: 0 to 40 °C
| Product Condition | New |
|---|---|
| Manufacturer | Aja Video Systems |
| manufacturer code | DANTE12G-LC-R0 |
| Taric Code | 8525503035 |
