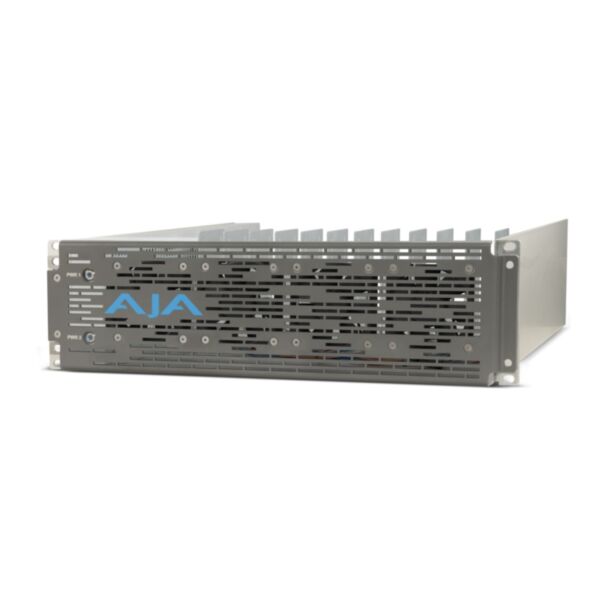

AJA DRM2-PLUS-A1 Active 3-RU Frame, Single Power Supply

AJA DRM2-Plus 3RU Mini-Converter Rack Frame, Active Faceplate, Single Power Supply DRM2-PLUS-A1

The AJA DRM2-Plus is a 3RU rackmount frame for professionally mounting and powering AJA Mini-Converters. This configuration (DRM2-PLUS-A1) has a active faceplate with four fans and a single power supply. The frame holds 12 standard-size Mini-Converters, up to 24 smaller converters such as FiDO, HA5-Plus, Hi5-Plus, V2Analog and V2Digital (with the optional DRM2-YC Y-cable), or up to 6 next-generation models such as DANTE-12GAM, IP25-R and UDC-4K (with the optional DRM2-PLUS-CX cable or DRM2-PLUS-6X harness).

A hinged front panel gives access to the converters, which can be installed or removed without taking the frame out of the rack. Twelve modular carriers are included and can be accessed from the front or rear of the chassis. The active fan-cooled faceplate suits higher wattage converters and higher ambient temperatures, such as on location or on set.

Key features

• 12 mounting slots for any AJA Mini-Converters
• 12 modular carriers included
• Up to 24 smaller converters with the optional DRM2-YC Y-cable
• Up to 6 next-generation converters with the optional DRM2-PLUS-CX cable or DRM2-PLUS-6X harness
• Hinged front panel; converters installed or removed without removing the frame from the rack
• Active faceplate with four fans
• Single power supply
• 13 x +12 V DC regulated outputs, up to 288 W

Notes

• Below 30 °C ambient an active faceplate is recommended above 100 W of total consumption; above 30 °C, above 75 W

Specifications

• Mounting slots: 12 (12 modular carriers included)
• Dimensions (w x d x h): 482.6 x 454.7 x 132.6 mm (3RU)
• Weight: 4.2 kg with 12 carriers, hardware, power harness and power cord
• Power input: universal 100-240 V, 50/60 Hz
• Outputs: 13 x +12 V DC regulated (12 for converters, 1 reserved for the active faceplate)
• Power consumption: 288 W maximum
• Operating temperature: 0 to 40 °C
