AJA GEN10-R1 HD/SD Sync Generator, Simultaneous Blackburst & Tri-level, Outputs Assignable
Compact HD/SD/AES sync generator with 7 outputs: two independently switchable groups for simultaneous HD tri-level and SD blackburst or color bars, plus one AES-11 output.
Commercial guarantee of durability offered by the producer at no extra cost: 5 years. See the GARAN label

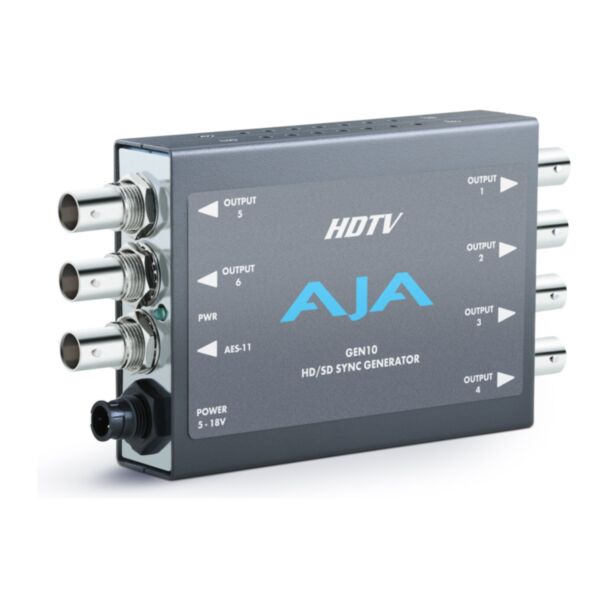

AJA GEN10 HD/SD Sync Generator GEN10-R1
The AJA GEN10 is a flexible SD/HD/AES sync generator in the Mini-Converter format. It has seven outputs, including two groups of independently controlled SD/HD sync outputs and one AES-11 output, so HD tri-level and SD sync can be generated at the same time. The SD outputs can be switched between color black and color bars, HD tri-level sync can be switched between 19 HD formats, and the AES-11 output between silence and tone. All outputs are in sync with each other, sourced from an accurate master time base, so multiple devices can be synchronized without a sync DA.
Key features
- HD tri-level sync generation
- SD color black or 75% color bars
- Two groups of independently switchable outputs for simultaneous HD and SD sync
- AES-11 output switchable between silence and tone
- Multiple outputs to synchronize entire systems without a sync DA
- External DIP switch configuration
Specifications
- Formats: 1080i 50/59.94/60, 1080PsF and 1080p 23.98-30, 720p 23.98-60, 625i, 525i
- AES: AES-11, 48 kHz, silence or 1 kHz tone (-20 or -18 dBFS)
- Accuracy: 3 ppm
- Dimensions (w x d x h): 147 x 79 x 25 mm
- Power: +5-18 V DC, 2 W, power supply included
- Operating temperature: 0 to 40 °C
| Product Condition | New |
|---|---|
| Manufacturer | Aja Video Systems |
| manufacturer code | GEN10-R1 |
| Taric Code | 8525503035 |
