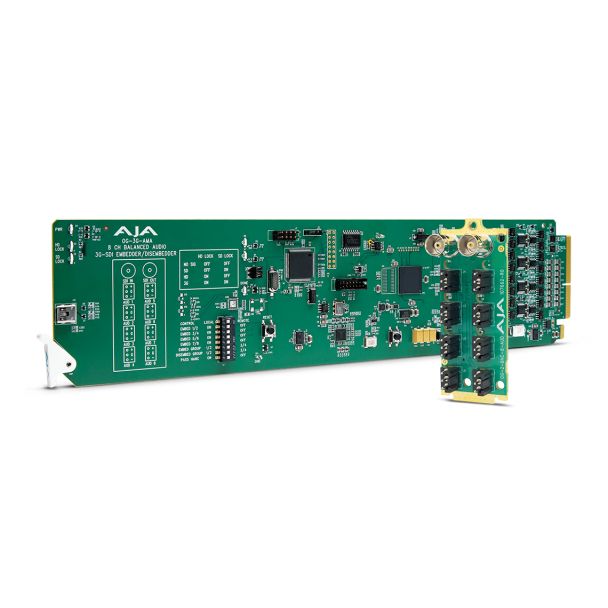

AJA OG-3G-AMA modular signal processing module
GTIN: 0812321030976
openGear card that embeds and disembeds 8 channels of balanced analog audio in 3G-SDI up to 1080p60, on 3-pin terminal blocks configurable as inputs or outputs, with HDR pass-through.
Commercial guarantee of durability offered by the producer at no extra cost: 5 years. See the GARAN label

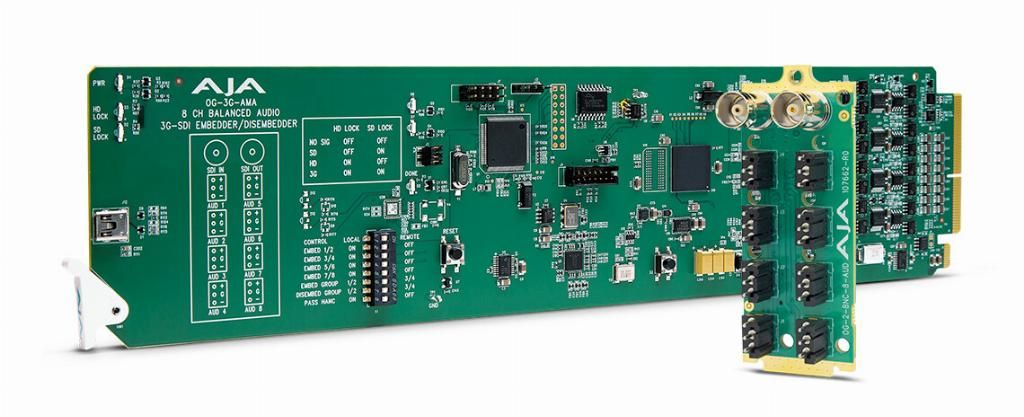

AJA OG-3G-AMA openGear 3G-SDI 8-Channel Analog Audio Embedder/Disembedder
OG-3G-AMA is an openGear 8-channel analog audio embedder/disembedder with 3G-SDI input and output up to 1080p60, which automatically detects and configures itself to the input video standard. Its 3-pin terminal block connectors can be set as audio inputs or outputs, and analog audio levels and embedding/disembedding are selectable per channel pair, passing the 3G-SDI input audio or embedding the incoming analog audio. It is controlled via DashBoard or an external DIP switch. It is designed for high-density openGear 2RU frames, including AJA's OG-X-FR, and is configured, monitored and controlled with Ross DashBoard software on Windows, macOS and Linux, from a connected computer or over the local network.
Key features
- 3G-SDI audio embedder/disembedder
- 8-channel balanced analog audio I/O
- 8x 3-pin terminal block connectors (included)
- Embedding selectable per channel pair
- HDR pass-through
- Control via DashBoard and external DIP switch
Compatibility
- openGear frames OG-X-FR, OG-3-FR and DFR-8321
In the box
- 1 x OG-3G-AMA card
- 1 x Rear I/O module
- 8 x 3-pin terminal block connectors
Specifications
- Video: 1x 3G-SDI BNC in, 1x 3G-SDI BNC out, SMPTE-259/292/424, 3G Level A and B
- Audio: 8 analog connections (4 pairs) configurable as inputs or outputs, 24-bit converters
- Analog levels: +24, +18, +15 or +12 dBu at 0 dBFS
- Slots: two per card
- Weight: 0.3 kg
- Power: 5 W max per card
| Product Condition | New |
|---|---|
| Manufacturer | Aja Video Systems |
| manufacturer code | OG-3G-AMA |
| Ean | 0812321030976 |
| Taric Code | 8471804000 |
| Modified on | 07-02-2019 |
| Product title | AJA OG-3G-AMA modular signal processing module |
| Long Product Name | openGear 3G-SDI Analog Audio Embedder/Disembedder with DashBoard support |
| Product specifications | FeaturesType* SDI embedder/de-embedder Product colour Green Maximum video resolution 2048 x 1080 pixels Supported video modes 480i, 576i, 720p, 1080i, 1080p Operational conditionsOperating temperature (T-T) 0 - 40 °C Operational conditionsStorage temperature (T-T) -40 - 60 °C Operating relative humidity (H-H) 10 - 90% Operating altitude 0 - 3000 m Weight & dimensionsWeight 300 g |
| Essential qualities |
|
| Type | SDI embedder/de-embedder |
