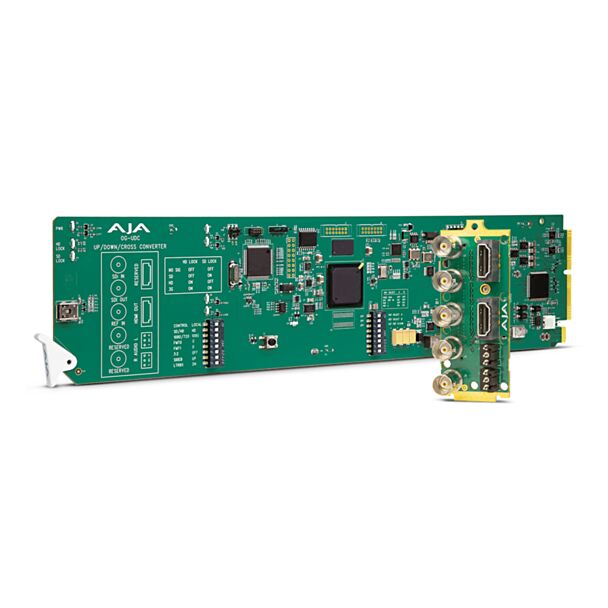

AJA OG-UDC modular signal processing module

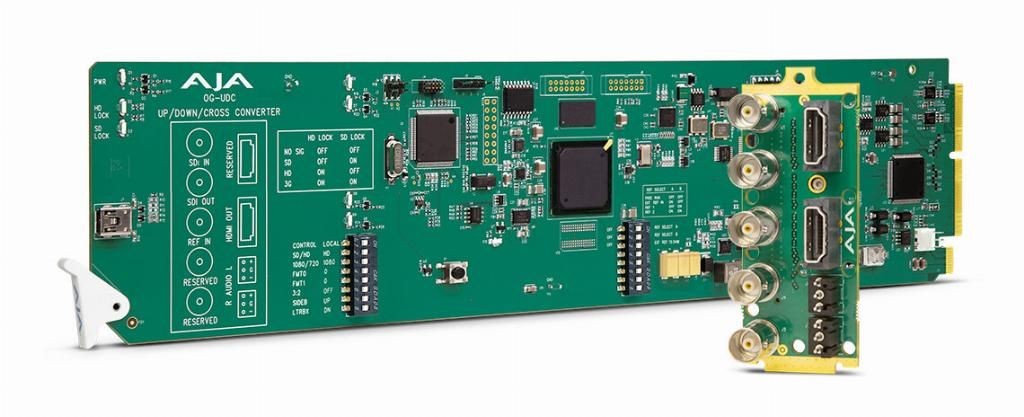

AJA OG-UDC openGear 3G-SDI Up, Down, Cross-Converter

OG-UDC is an openGear 10-bit up, down and cross-converter that bridges HD and SD video resolutions. It can up or down-convert between SD, HD and 3G HD (1080p 50/60), cross-convert between HD formats including 3G HD, and perform SD/SD aspect ratio conversion, using AJA hardware conversion technology.

It has a 3G-SDI input and output, an HDMI output and two 3-pin terminal block connectors for analogue audio outputs, plus a reference input. It can be configured remotely with DashBoard or locally with DIP switches. OG-UDC supports 3G-SDI Level A only and passes through embedded audio ancillary data only. The card is designed for high-density openGear 2RU frames, including AJA's OG-X-FR, and is monitored and controlled with Ross DashBoard software on Windows, macOS and Linux, from a connected computer or over the local network.

Key features

• Converts between SD, HD and 3G HD formats, including 1080p 50/60
• SD/SD aspect ratio conversion, HD/HD cross-conversion (720p/1080i)
• Loss of input management: Freeze, Black or Mute
• 16-channel embedded SDI audio input and output
• 2x 3-pin terminal block connectors included
• Reference input
• Remote configuration via DashBoard, local configuration via DIP switches
• Rear I/O card included

Compatibility

• openGear frames OG-X-FR, OG-3-FR and DFR-8321

Specifications

• Video input: 1x 3G-SDI BNC, SMPTE-259/292/372/424
• Video output: 1x 3G-SDI BNC, SMPTE-259/292/372/424; HDMI v1.4a, 10-bit
• Audio: 16-channel SDI embedded in/out, 8-channel HDMI out, balanced analogue outputs on 2x 3-pin terminal blocks
• Reference: 1080i/1080p/720p tri-level sync or 625i/525i colour black, 75 ohm terminating
• Size: openGear standard form factor, front card and rear card, two slots per card
• Weight: 0.3 kg
• Power: 7 W max per card
• Operating temperature: 0 to 40 °C
