AJA BRIDGE NDI 3G BNDI-3G16-R0 SDI/NDI Conversion Gateway

AJA BRIDGE NDI 3G is a 1RU plug-and-play gateway for high-density conversion from 3G-SDI to NDI and from NDI to 3G-SDI, for multi-channel HD and 4K/UltraHD. As standard it handles 16 channels of SD/HD or 4 channels of 4K/UltraHD up to 60p, in encode, decode or a combination of both, and is fully controllable remotely, for AV, security and surveillance, broadcast, eSports and entertainment venues.

HD channels can be grouped into video+key pairs, combining two SDI signals into one NDI stream with alpha and vice versa, or into 4K/UltraHD groups using Square Division or 2SI, up to the full DCI 4K raster. It supports NDI 6, NDI 5 and NDI 4, redundant discovery servers, 8-bit and 16-bit 4:2:2 NDI profiles, up to 16 channels of audio and VITC1, VITC2, LTC and time-of-day timecode. The 16 bidirectional 3G-SDI connections are DIN 1.0/2.3, with DIN to BNC adapters included, alongside dual 10GigE ports and dual redundant power supplies.

Key features

• 3G-SDI I/O: 16 channels of SD/HD or 4 channels of 4K/UltraHD up to 60p
• Bidirectional SDI to NDI and NDI to SDI conversion, also simultaneously
• Supports NDI 6, NDI 5 and NDI 4; NDI HX input
• Redundant discovery server compatible
• Selectable NDI encode profiles, 8-bit and 16-bit 4:2:2
• Video and key support, progressive and interlaced video
• Full raster DCI 4K support
• 16-channel audio
• Timecode: VITC1, VITC2, LTC and time-of-day
• Buffer controls for low latency tuning, confidence monitoring, test patterns
• Remote WebUI, local GUI and REST API
• Dual 10GigE for media and control, dual redundant power supplies

In the box

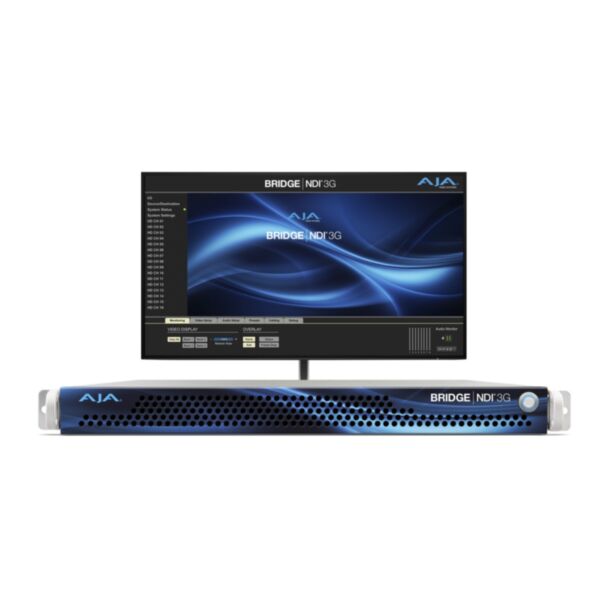

• BRIDGE NDI 3G 1RU system
• 18 x DIN 1.0/2.3 to BNC adapters
• USB sound card for local dual-channel audio

Specifications

• Video formats: 4K and UltraHD up to 60p, HD 1080p/1080i/720p, SD 525i/625i
• SDI: YCbCr 4:2:2 10-bit; 3G-SDI, 1.5G-SDI and 270 Mb SDI
• NDI: UYVY/UYVA 4:2:2 8-bit, P216 4:2:2 16-bit (output only); NDI HX input
• Audio: up to 16 channels, 48 kHz (SDI embedded 16/24-bit PCM, NDI uncompressed float)
• Video processing: scaling, letterbox/pillarbox, video/key pairs, reclocking for integer/fractional rate conversion
• Reference: analog color black or HD tri-level sync
• Connectors: 18 x DIN 1.0/2.3 (16 SDI I/O, 2 reference), 2 x 10 GigE, VGA and USB for local interface
• Dimensions (w x d x h): 436.88 x 429.26 x 43.18 mm (1RU)
• Weight: 8.2 kg (server only)
• Power: 100-240 V AC 50/60 Hz, dual redundant supplies, 190 W typical, 245 W maximum
• Operating temperature: 5 to 35 °C
