Aja Video Systems KI-PRO-GO2-R0 Multi-Channel HD H.264 AVC / H.265 HEVC Recorder/Player (Storage not included)
Portable multi-channel H.265 (HEVC) and H.264 (AVC) recorder: up to 4 channels of HD or SD recording to USB drives and SMB network storage with redundant recording, 4x 3G-SDI and 4x HDMI inputs with frame syncs.
Commercial guarantee of durability offered by the producer at no extra cost: 3 years. See the GARAN label

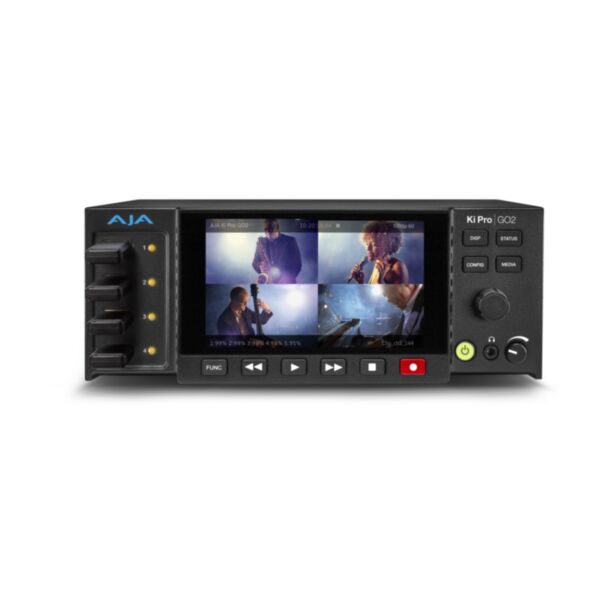

AJA Ki Pro GO2 Multi-Channel H.265/H.264 Recorder and Player
The AJA Ki Pro GO2 is a portable multi-channel H.265 (HEVC) and H.264 (AVC) recorder offering up to four channels of simultaneous HD or SD recording to qualified USB drives and/or network storage, with redundant recording. Four 3G-SDI and four HDMI inputs with flexible channel assignment connect to a wide range of sources, from routers to professional and prosumer cameras and DSLRs; input frame synchronizers mean sources do not need to be genlocked, and de-interlacers on each input allow progressive recordings from interlaced sources. Recordings are standard .MP4 files with five selectable VBR quality settings per channel, up to 15 Mbps for H.265 and 25 Mbps for H.264.
Four front USB ports and a fifth on the rear accept off-the-shelf USB 3.2 Gen 1 media, and any USB port or SMB network storage can be used as the primary destination with any USB port as backup, for immediate handout of copies to clients or post-production. SDI and HDMI monitoring outputs can show a matrix of up to four channels or a single full-screen channel, with Enhanced Super Out overlays for timecode, audio levels and media status. Each channel records two channels of embedded audio or analog audio from the XLR inputs (line, mic or +48 V phantom power). The unit has a built-in HD screen with front panel transport buttons, a web UI for remote control and file downloads, and a half rack wide, 2RU design for portable or rackmount use.
Key features
- Multi-channel H.265 (HEVC) and H.264 (AVC) recording
- Up to 4 channels of HD recording, single-channel playback
- Web UI compatible with standard web browsers
- Front panel button controls with integrated HD screen
- 5 x USB ports for off-the-shelf USB 3.2 Gen 1 media, onboard exFAT formatting
- Real time recording to SMB network storage
- Redundant recording to user selectable USB or SMB destinations
- Built-in frame syncs
- 4 x 3G-SDI inputs, 4 x 3G-SDI outputs, 1 x 3G-SDI monitoring output
- 4 x HDMI inputs, 1 x HDMI monitoring output
- Multi-channel matrix monitoring and Enhanced Super Out
- RP-188 timecode input; LTC via one analog audio input
- Balanced XLR analog audio inputs, mic/line/48 V switchable
- Group Recording with Ki Pro Ultra 12G and HELO Plus
Notes
- Storage media not included
- Multi-channel recording requires the same frame rate and resolution for all input sources
In the box
- 1 x Ki Pro GO2 recorder
- 1 x AC power adapter
Specifications
- Video formats: HD 1080p 23.98-60; 1080i 50, 59.94, 60; 1080PsF 23.98-30 (input only); 720p 50, 59.94, 60; SD 525i 59.94, 625i 50 (interlaced and PsF recorded as progressive)
- Video codecs: H.265/HEVC up to 15 Mbps, H.264/MPEG-4 up to 25 Mbps
- Audio codec: MPEG-4 AAC-LC, 4 audio compression codecs, 2 channels each, up to 320 kbps
- Container: .MP4
- Removable storage: 5x USB 3.2 Gen 1 (5 Gbps) ports, also USB 2.0/3.0, 5 V 1 A max per port
- Removable storage - File systems: FAT16, FAT32, exFAT; in-system formatting exFAT only
- Network storage: SMB via GigE port, one device at a time, 150 Mbps of bandwidth permanently available required; SMB 3.1.1, 3.0.2, 3.02, 2.1, 2.0
- Video input: 4x 3G-SDI BNC (SMPTE-259/292/424, 4:2:2 10-bit); 4x HDMI Type A, HDMI v1.4a (RGB 4:4:4 8/10-bit, YCbCr 4:2:2 8/10/12-bit, 4:2:0 8-bit)
- Video output: 5x 3G-SDI BNC (SMPTE-259/292/424, 4:2:2 10-bit); 1x HDMI Type A, HDMI v1.4a
- Audio input - Embedded: 4x SDI (2-channel 24-bit, 48 kHz), 4x HDMI (2-channel 24-bit, 32/44.1/48 kHz), converted to 48 kHz internally
- Audio input - Analogue: 2x XLR, line/mic/+48 V phantom (rear switch), +24 dB full scale, ±0.3 dBFS 20 Hz-20 kHz, THD+N ≤ -90 dB
- Audio output: 5x SDI embedded and 1x HDMI embedded (2-channel 24-bit 48 kHz), 3.5 mm headphone jack with volume control, 2x RCA unbalanced
- Video conversion: deinterlacing for recording, optional interlacing for playback, PsF to progressive
- Timecode: SDI RP 188/SMPTE 12M, LTC input (via analogue audio XLR in R), TC Super Out
- Reference input: external, 2x BNC looping, non-terminating; HD tri-level (720p, 1080i, 1080p, 1080PsF), SD analogue composite 525i 59.94, 625i 50
- Network interface: 1x RJ-45 10/100/1000, embedded web server, configuration, transport control and clip download via web, REST remote control
- User interface: rotary selector knob, dedicated backlit transport and menu buttons, 1280x720 TFT LCD with video monitor and menu/status overlays
- Size (w x d x h): 219.46 x 268.90 x 84.08 mm
- Weight: 2.3 kg
- Power - Unit: dual redundant 12-18 V DC regulated, 4-pin XLR, 55 W typical, 90 W max
- Power - AC adapter (included): 100-240 V AC, 50/60 Hz, universal input, 12 V 7 A output
- Environment - Operating temperature: 0 to 40 °C
- Environment - Storage temperature (power off): -40 to 60 °C
- Environment - Operating relative humidity: 10-90% non-condensing
- Environment - Operating altitude: < 3,000 m
| Product Condition | New |
|---|---|
| Manufacturer | Aja Video Systems |
| manufacturer code | KI-PRO-GO2-R0 |
| Taric Code | 8517620050 |
