Aja Video Systems KI-PRO-ULT-12G 4K/UltraHD/2K/HD Recorder/Player with 12G I/O and Multi-Channel Encoding Support Includes: AC Adapter (AC to 4-pin XLR), Handle, Feet (Storage not included)
GTIN: 0812321032208
4K/UltraHD/2K/HD recorder and player with 12G-SDI, 3G-SDI and HDMI 2.0 I/O: single-channel 4K 60p or up to 4 channels of genlock-free HD recording to Apple ProRes (up to 4444 XQ) or Avid DNxHR/DNxHD on PAK media.
Commercial guarantee of durability offered by the producer at no extra cost: 3 years. See the GARAN label
AJA Ki Pro Ultra 12G 4K/UltraHD/HD Recorder and Player
The AJA Ki Pro Ultra 12G is a multi-channel digital recorder and player offering up to four channels of simultaneous HD recording or, in Single-Channel mode, 4K/UltraHD/2K/HD Apple ProRes or Avid DNxHR capture and playback; Avid DNxHD MXF is also supported for HD. It offers 12G-SDI single cable simplicity for rasters up to full 4K, three additional 3G-SDI ports for multi-channel HD or quad-link capture, HDMI 2.0 I/O and SFP cages for optional fiber or HD-BNC modules. Recording supports six quality levels of Apple ProRes up to ProRes 4444 XQ, 12-bit 4:4:4 workflows and HDR (HDR10/PQ and HLG) on input and output.
In Multi-Channel mode, internal frame synchronizers eliminate the need to genlock the sources, each channel can use its own profile, and the files are discrete, timecode-accurate recordings ready for multi-camera editing. Two PAK SSD media bays allow rollover and Infinite Record, with Ki Protect for data integrity. Up to 16 channels of embedded audio per input are supported, plus analog and AES/EBU audio via DB-25. A 4.8-inch 720p LCD, transport buttons, a web UI for remote control and file transfers, RS-422, REF, LTC and a REST API complete the unit, in a half rack wide, 2RU design.
Key features
- Single-channel 4K/UltraHD/HD recording to ProRes or DNx, up to 4K 60p
- Multi-channel genlock-free HD recording to ProRes up to 1080 60p
- Records and plays up to Apple ProRes 4444 XQ or Avid DNxHR HQX
- HDR recording and playback
- 1 x 12G-SDI I/O, 3 x 3G-SDI I/O
- HDMI 2.0 I/O
- SFP cages for optional fiber and HD-BNC modules
- 2 x PAK media bays with Ki Protect, rollover and Infinite Record
- Analog and AES/EBU audio I/O via DB-25, up to 16-channel embedded audio per input
- REF, LTC, RP-188 and RS-422 support, REST API
- Support for 8K VPID multi-unit playback

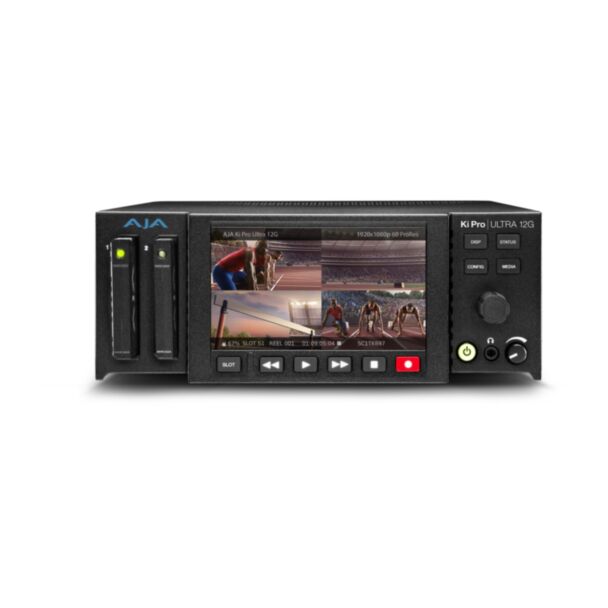

- Built-in HD LCD, front panel controls and web UI
- Compact 2RU, half-rack width design
Compatibility
- AJA PAK SSD media
- Optional AJA SFP modules, e.g. FIBERLC-1TX-12G, FIBERLC-1RX-12G, HDBNC-2TX-12G, HDBNC-2RX-12G
Notes
- Storage media not included
In the box
- Ki Pro Ultra 12G
- AC adapter (AC to 4-pin XLR)
- Handle
- Feet
| Product Condition | New |
|---|---|
| Manufacturer | Aja Video Systems |
| manufacturer code | KI-PRO-ULT-12G |
| Ean | 0812321032208 |
| Taric Code | 8521900000 |
