AJA OG-12G-AM openGear 12G-SDI 16-Channel AES/EBU Audio Embedder/Disembedder

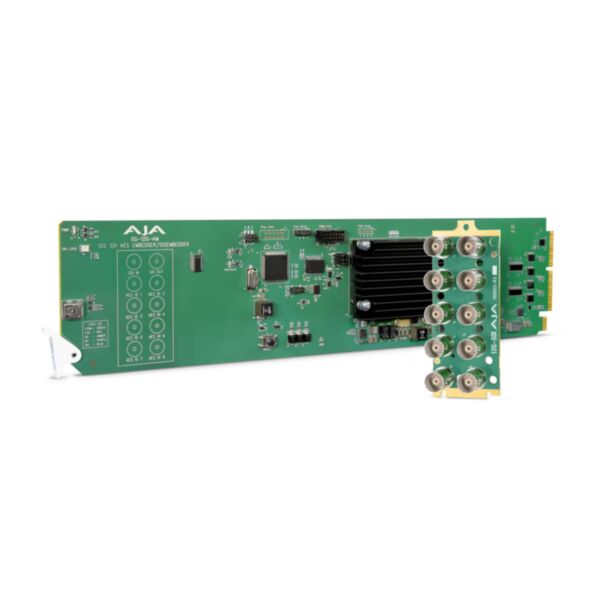

OG-12G-AM is a 16-channel AES/EBU audio embedder/disembedder openGear card with 12G-SDI input and output up to 4K/UltraHD. Embedding and disembedding are selectable per channel pair, either passing the 12G-SDI input audio or embedding the incoming AES/EBU audio, and the eight AES BNC connectors can each be set as inputs or outputs. The card automatically detects and configures itself to the input video standard.

A typical use is to disembed the AES audio from a 4K 12G-SDI signal for a mixing console and embed the mix back into the SDI output, for example towards a Ki Pro Ultra 12G recorder. An internal 1.5G-SDI signal generator lets the embedder path work even without a source connected to the SDI input. It is designed for high-density openGear 2RU frames, including AJA's OG-X-FR, and is configured, monitored and controlled with Ross DashBoard software on Windows, macOS and Linux, from a connected computer or over the local network.

Key features

• 12G-SDI input and output up to 4K/UltraHD
• 16-channel balanced AES/EBU embedder/disembedder
• Embedding selectable per channel pair
• Selectable AES/EBU audio levels
• HDR pass-through
• Automatic detection of the input video standard
• Internal 1.5G-SDI signal generator for the embedder path
• Monitoring and control with Ross DashBoard

Compatibility

• openGear frames, including AJA OG-X-FR

In the box

• 1 x OG-12G-AM card
• 1 x Rear I/O module

Specifications

• Video: 1x 12G-SDI BNC in, 1x 12G-SDI BNC out, SMPTE 259/292/424/2081/2082; 3G Level A and B
• Formats: 4K, UltraHD, 2K, HD, SD; RGB and YCbCr 4:4:4/4:2:2 10-bit
• Audio: 8x BNC AES3, up to 16 channels in / 16 out, selectable in pairs
• Video latency: 4 µs at 12G
• Slots: two per card
• Weight: 0.3 kg
• Power: 6 W max per card
