Aja Video Systems OG-3G-AMD 3G-SDI 8-Channel 24-bit AES Embedder/Disembedder, DashBoard Support
GTIN: 0812321031928
openGear card that embeds and disembeds 8 channels of AES audio in 3G-SDI up to 1080p60, with 4 AES BNC inputs and outputs, channel enabling and mapping, HDR pass-through.
Commercial guarantee of durability offered by the producer at no extra cost: 5 years. See the GARAN label

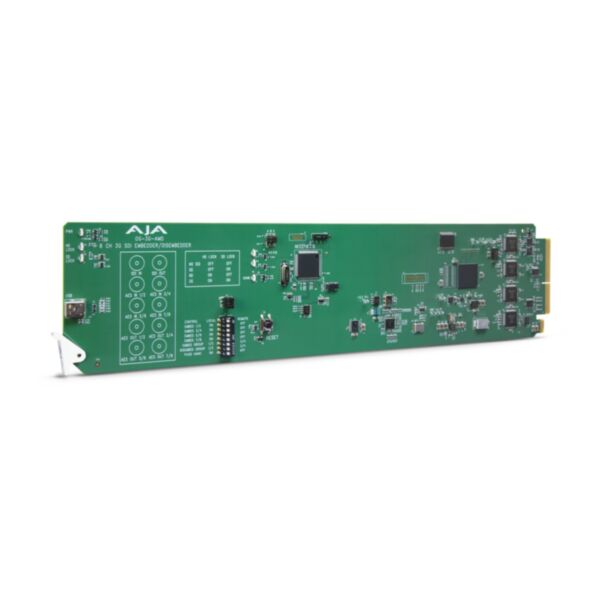

AJA OG-3G-AMD openGear 3G-SDI 8-Channel AES Audio Embedder/Disembedder
OG-3G-AMD is an openGear 8-channel AES audio embedder and disembedder on one board, with 3G-SDI input and output up to 1080p60. Simple user controls allow channel enabling and mapping, and incoming embedded audio can be passed, removed or overridden. It works in local and remote modes, configured via DashBoard or DIP switch, and a 10x BNC rear connector module is included. It is designed for high-density openGear 2RU frames, including AJA's OG-X-FR, and is configured, monitored and controlled with Ross DashBoard software on Windows, macOS and Linux, from a connected computer or over the local network.
Key features
- 3G-SDI embedder and disembedder in one board
- 1x 3G-SDI input, 1x 3G-SDI output
- 4x AES BNC inputs and outputs (2 channels each)
- Incoming embedded audio passed, removed or overridden
- HDR pass-through
- Local and remote modes, DashBoard or DIP switch configuration
- Hot-swappable
Compatibility
- openGear frames OG-X-FR, OG-3-FR and DFR-8321
In the box
- 1 x OG-3G-AMD card
- 1 x 10x BNC rear connector module
Specifications
- Video: 3G-SDI (Level A or B), 1.5G-SDI, 270 Mb SDI; SMPTE-259/292/424
- Audio: 4x BNC AES3id in, 4x BNC AES3id out; SDI embedded up to 16 channels, 24-bit
- Slots: two per card
- Weight: 0.3 kg
- Power: 5 W max per card
| Product Condition | New |
|---|---|
| Manufacturer | Aja Video Systems |
| manufacturer code | OG-3G-AMD |
| Ean | 0812321031928 |
| Taric Code | 8471804000 |
