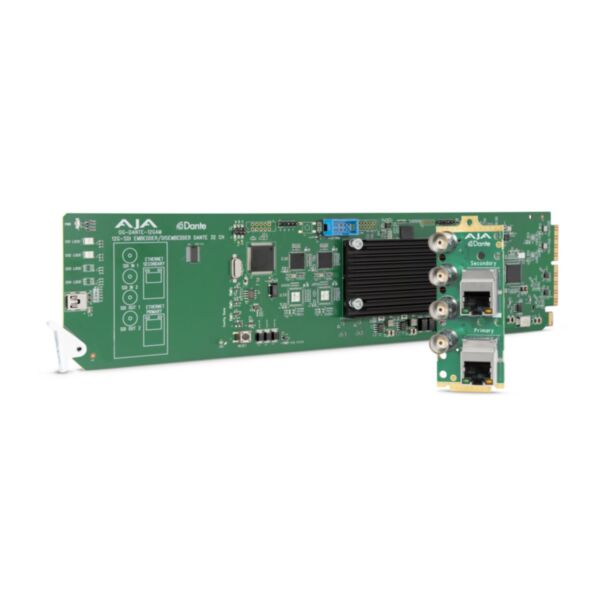

AJA OG-DANTE-12GAM openGear Dual 12G-SDI / Dante 64-Channel Audio Embedder/Disembedder

OG-DANTE-12GAM is an openGear Dante/AES67/ST 2110-30/RAVENNA AoIP audio embedder/disembedder that bridges SDI and audio over IP infrastructures. It has two independent 12G-SDI inputs and outputs, each carrying 16 audio channels, for up to 32 channels of embedding and 32 of disembedding simultaneously, 64 channels of I/O in total. Primary and secondary Gigabit Ethernet ports provide Dante network redundancy, and PTPv2 keeps Dante and ST 2110 networks synchronised.

Two internal signal generators allow Dante audio to be sent over SDI without an external SDI source. The card works with Audinate software such as Dante Controller for routing and configuration, and with Ross DashBoard for remote status and setup. Ten cards in one OG-X-FR frame provide up to 640 channels of SDI/Dante audio bridging in 2RU.

Key features

• 12G/6G/3G-SDI audio embedding to and disembedding from Dante
• Two independent 12G-SDI inputs and outputs, 16 audio channels each
• 64 channels of simultaneous SDI/Dante audio bridging per card
• Primary and secondary GigE ports for Dante redundancy
• AES67, SMPTE ST 2110-30 and RAVENNA interoperability, PTPv2
• 2x internal signal generators
• HDR pass-through
• Dante Controller and Ross DashBoard support
• Hot-swappable

Compatibility

• openGear frames OG-X-FR and OG-3-FR

Specifications

• Video: 2x 12G-SDI BNC in, 2x out, SMPTE 259/292/424/2081/2082, SD to 4K
• SDI audio: 16 embedded channels per path, 24-bit 48 kHz
• Dante audio: 32 channels, 44.1/48/88.2/96 kHz, PCM 16/24/32
• Cable equalisation (Belden 1694A): 12 Gbps 65 m, 3 Gbps 180 m, 270 Mbps 405 m
• Slots: two per card
• Weight: 0.3 kg
• Power: 15 W max per card
