Aja Video Systems OG-FIDO-2T-12G 2-Channel 12G-SDI/ST Single Mode LC Fiber Transmitter, DashBoard Support
GTIN: 0812321032642
openGear 2-channel transmitter converting 12G-SDI to single mode LC fibre, two independent channels from 270 Mbps to 12 Gbps, HDR pass-through, runs up to 10 km, SFP included.
Commercial guarantee of durability offered by the producer at no extra cost: 5 years. See the GARAN label

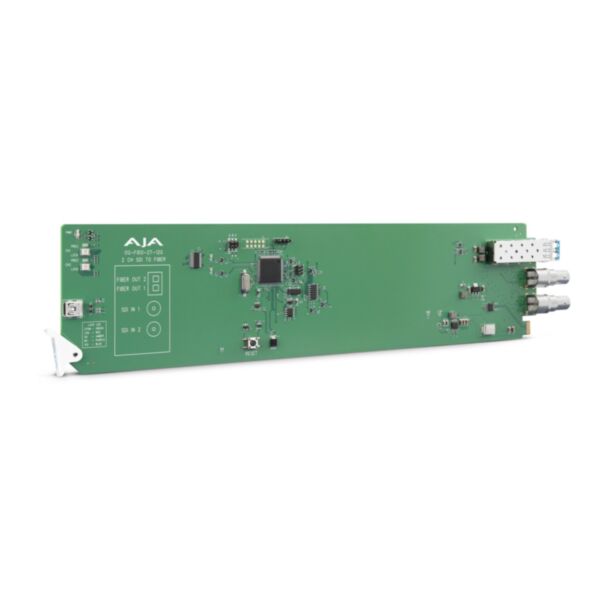

AJA OG-FiDO-2T-12G openGear 2-Channel 12G-SDI to Single Mode LC Fiber Transmitter
OG-FiDO-2T-12G is an openGear 2-channel 12G-SDI to fibre converter. Over standard single mode fibre the signal can be extended up to 10 km. The two 12G-SDI inputs, which also accept 6G, 3G, HD and SD-SDI, are completely independent and reclocked, so different rates can be carried on each channel. A typical use is sending pairs of 12G-SDI cameras from a live event stage to OG-FiDO-2R-12G receivers in an OB truck. The card is designed for high-density openGear 2RU frames, including AJA's OG-X-FR, and is monitored and controlled with Ross DashBoard software on Windows, macOS and Linux, from a connected computer or over the local network.
Key features
- 2x independent 12G-SDI BNC inputs
- 2x independent single mode LC fibre outputs
- Format agnostic, 270 Mbps to 12 Gbps (12G/6G/3G/HD/SD-SDI)
- Pass-through of SDI metadata, including HDR
- Automatic detection and reclocking
- Hot-swappable, monitored via Ross DashBoard
- Fibre SFP and rear I/O card included
Compatibility
- openGear frames, including AJA OG-X-FR
In the box
- 1 x openGear card
- 1 x Rear I/O card
- Fibre SFP module
Specifications
- Fibre outputs: Tx 1310 nm typ., optical power -5 to 0.5 dBm
- Inputs: 2x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
- Slots: two per card
- Power: 3 W max per card
| Product Condition | New |
|---|---|
| Manufacturer | Aja Video Systems |
| manufacturer code | OG-FIDO-2T-12G |
| Ean | 0812321032642 |
| Taric Code | 8471804000 |
