Aja Video Systems OG-FIDO-T 1-Channel 3G-SDI to Single Mode LC Fiber Transmitter, DashBoard Support
GTIN: 0812321031843
openGear 1-channel transmitter converting 3G-SDI to single mode LC fibre at 1310 nm, with reclocked SDI loop output and HDR metadata pass-through, for runs up to 10 km.
Commercial guarantee of durability offered by the producer at no extra cost: 5 years. See the GARAN label

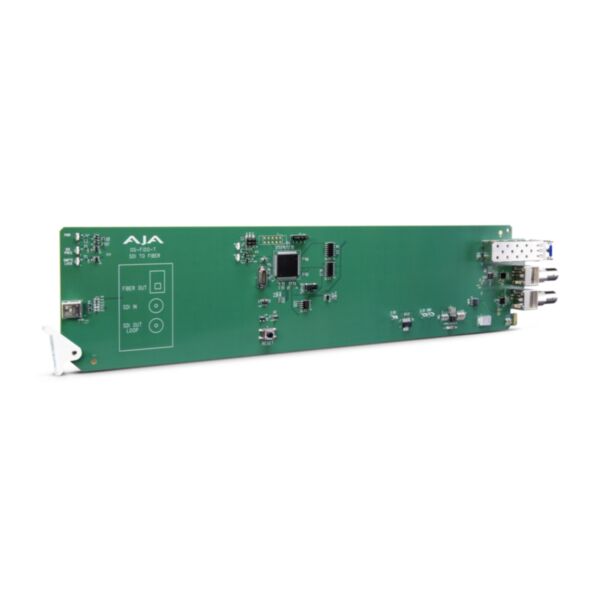

AJA OG-FiDO-T openGear 3G-SDI to Single Mode LC Fiber Transmitter
OG-FiDO-T is an openGear 3G-SDI to fibre converter. Over standard single mode fibre the signal can be extended up to 10 km. The 3G-SDI input is reclocked with high input jitter tolerance, and a reclocked looping 3G-SDI output is also provided. The card is designed for high-density openGear 2RU frames, including AJA's OG-X-FR, and is monitored and controlled with Ross DashBoard software on Windows, macOS and Linux, from a connected computer or over the local network.
Key features
- 1x 3G-SDI BNC input with loop out
- 1x single mode LC fibre output
- Format agnostic, 150 Mbps to 3 Gbps
- Pass-through of SDI metadata, including HDR
- Automatic detection and reclocking
- Hot-swappable, monitored via Ross DashBoard
Compatibility
- openGear frames OG-X-FR, OG-3-FR and DFR-8321
Specifications
- Fibre output: 1310 nm, optical power -5 to 0 dBm, extinction ratio 7.5 dB typ.
- SDI: SMPTE-259/292/424
- Slots: two per card
- Weight: 0.3 kg
- Power: 2.5 W max per card
| Product Condition | New |
|---|---|
| Manufacturer | Aja Video Systems |
| manufacturer code | OG-FIDO-T |
| Ean | 0812321031843 |
| Taric Code | 8471804000 |
