Aja Video Systems OG-FIDO-T-MM 1-Channel 3G-SDI to Multi-Mode LC Fiber Transmitter, DashBoard Support
GTIN: 0812321031836
openGear 1-channel transmitter converting 3G-SDI to multi-mode LC fibre at 850 nm, for runs up to 700 m (OM4) or 300 m (OM3), with SDI loop output and HDR metadata pass-through.
Commercial guarantee of durability offered by the producer at no extra cost: 5 years. See the GARAN label

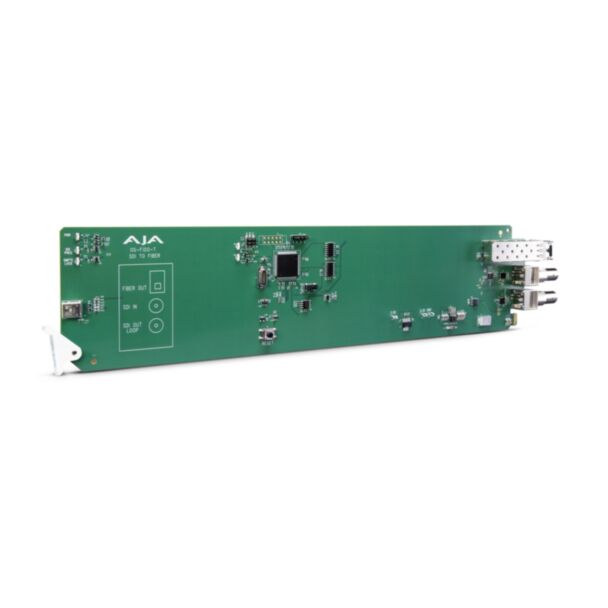

AJA OG-FiDO-T-MM openGear 3G-SDI to Multi-Mode LC Fiber Transmitter
OG-FiDO-T-MM is an openGear 3G-SDI to multi-mode fibre converter. Over multi-mode fibre it allows runs of up to 700 m on OM4 and 300 m on OM3, and fibre is also useful for eliminating ground loop problems. The 3G-SDI input is reclocked and a 3G-SDI loop output is also provided. The card is designed for high-density openGear 2RU frames, including AJA's OG-X-FR, and is monitored and controlled with Ross DashBoard software on Windows, macOS and Linux, from a connected computer or over the local network.
Key features
- 1x 3G-SDI BNC input with loop out
- 1x multi-mode LC fibre output
- Format agnostic, 150 Mbps to 3 Gbps
- Pass-through of SDI metadata, including HDR
- Automatic detection and reclocking
- Hot-swappable, monitored via Ross DashBoard
Compatibility
- openGear frames OG-X-FR, OG-3-FR and DFR-8321
Specifications
- Fibre output: 850 nm, optical power -7 to -2 dBm
- SDI: SMPTE-259/292/424
- Slots: two per card
- Weight: 0.3 kg
- Power: 2.5 W max per card
| Product Condition | New |
|---|---|
| Manufacturer | Aja Video Systems |
| manufacturer code | OG-FIDO-T-MM |
| Ean | 0812321031836 |
| Taric Code | 8471804000 |
