Aja Video Systems OG-FIDO-TR 1-Channel 3G-SDI/LC Single Mode LC Fiber Transceiver, DashBoard Support
GTIN: 0812321031829
In stock
SKU
AJA-OG-FIDO-TR
Special Price €1,004.55 €823.40 Regular Price €1,091.90
openGear 3G-SDI/fibre transceiver with one SDI-to-fibre and one fibre-to-SDI path on single mode LC fibre, reclocking and HDR metadata pass-through, for runs up to 10 km.
Commercial guarantee of durability offered by the producer at no extra cost: 5 years. See the GARAN label

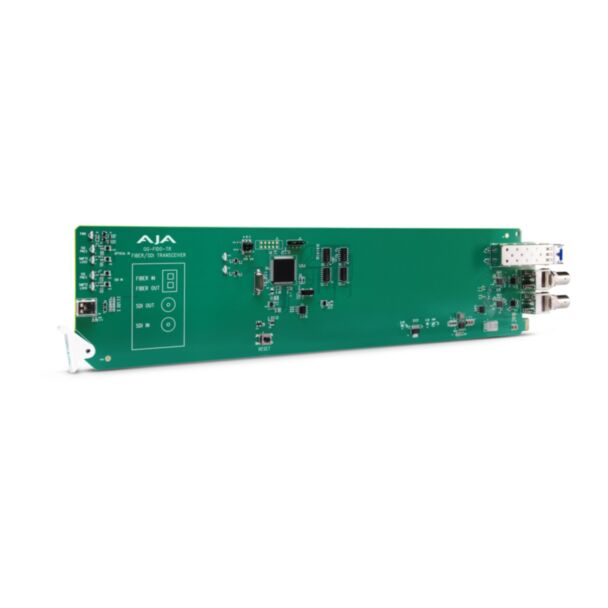

AJA OG-FiDO-TR openGear 3G-SDI/Single Mode LC Fiber Transceiver
OG-FiDO-TR is an openGear 3G-SDI/fibre transceiver that supports both 3G-SDI to fibre and fibre to 3G-SDI conversion on the same card. Over standard single mode fibre the signal can be extended up to 10 km. The card is designed for high-density openGear 2RU frames, including AJA's OG-X-FR, and is monitored and controlled with Ross DashBoard software on Windows, macOS and Linux, from a connected computer or over the local network.
Key features
- Inputs: 1x 3G-SDI BNC, 1x single mode LC fibre
- Outputs: 1x 3G-SDI BNC, 1x single mode LC fibre
- Format agnostic, 150 Mbps to 3 Gbps
- Pass-through of SDI metadata, including HDR
- Automatic detection and reclocking
- Hot-swappable, monitored via Ross DashBoard
Compatibility
- openGear frames OG-X-FR, OG-3-FR and DFR-8321
Specifications
- Fibre receiver: 1260-1620 nm, sensitivity -18 dBm, overload -3 dBm
- Fibre transmitter: 1310 nm, optical power -5 to 0 dBm
- SDI: SMPTE-259/292/424
- Slots: two per card
- Weight: 0.3 kg
- Power: 2.5 W max per card
| Product Condition | New |
|---|---|
| Manufacturer | Aja Video Systems |
| manufacturer code | OG-FIDO-TR |
| Ean | 0812321031829 |
| Taric Code | 8471804000 |
