Aja Video Systems OG-FIDO-TR-12G 1-Channel 12G-SDI/LC Single Mode LC Fiber Transceiver, DashBoard Support
GTIN: 0812321032512
openGear 12G-SDI/fibre transceiver with one SDI-to-fibre and one fibre-to-SDI path on single mode LC fibre, from 270 Mbps to 12 Gbps, HDR pass-through, runs up to 10 km, SFP included.
Commercial guarantee of durability offered by the producer at no extra cost: 5 years. See the GARAN label

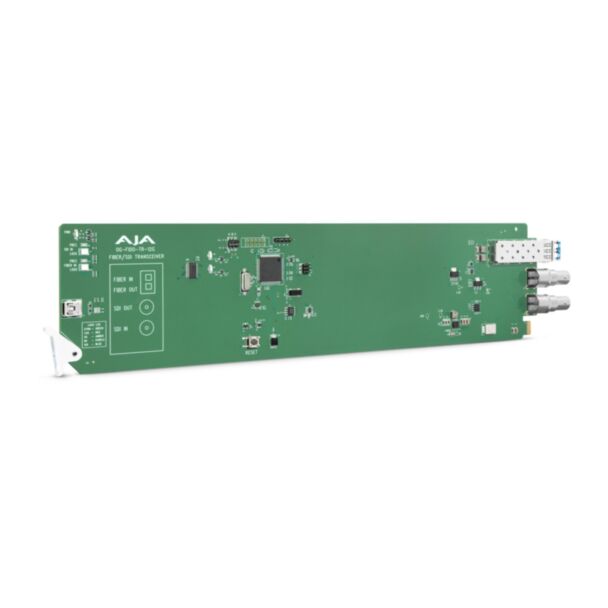

AJA OG-FiDO-TR-12G openGear 12G-SDI/Single Mode LC Fiber Transceiver
OG-FiDO-TR-12G is an openGear 12G-SDI/fibre transceiver that supports both 12G-SDI to fibre and fibre to 12G-SDI conversion on the same card. Over standard single mode fibre the signal can be extended up to 10 km. Both paths handle rates from SD up to 12G-SDI and are reclocked. The card is designed for high-density openGear 2RU frames, including AJA's OG-X-FR, and is monitored and controlled with Ross DashBoard software on Windows, macOS and Linux, from a connected computer or over the local network.
Key features
- Inputs: 1x 12G-SDI BNC, 1x single mode LC fibre
- Outputs: 1x 12G-SDI BNC, 1x single mode LC fibre
- Format agnostic, 270 Mbps to 12 Gbps (12G/6G/3G/HD/SD-SDI)
- Pass-through of SDI metadata, including HDR
- Automatic detection and reclocking
- Hot-swappable, monitored via Ross DashBoard
- Fibre SFP and rear I/O card included
Compatibility
- openGear frames, including AJA OG-X-FR
In the box
- 1 x openGear card
- 1 x Rear I/O card
- Fibre SFP module
Specifications
- Fibre receiver: Rx 1260-1620 nm, sensitivity -10 dBm at 6/12 Gbps, -14 dBm at lower rates
- Fibre transmitter: Tx 1310 nm typ., optical power -5 to 2 dBm
- SDI: SMPTE 259/292/424/2081/2082
- Slots: two per card
- Power: 3 W max per card
| Product Condition | New |
|---|---|
| Manufacturer | Aja Video Systems |
| manufacturer code | OG-FIDO-TR-12G |
| Ean | 0812321032512 |
| Taric Code | 8471804000 |
