Aja Video Systems OG-FIDO-TR-MM 1-Channel 3G-SDI/LC Multi-Mode LC Fiber Transceiver, DashBoard Support
openGear 3G-SDI/fibre transceiver with one SDI-to-fibre and one fibre-to-SDI path on multi-mode LC fibre at 850 nm, for runs up to 700 m (OM4) or 300 m (OM3), with HDR pass-through.
Commercial guarantee of durability offered by the producer at no extra cost: 5 years. See the GARAN label

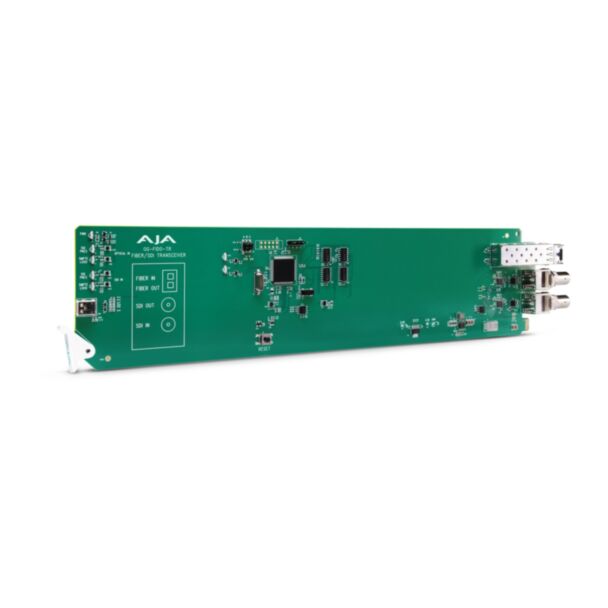

AJA OG-FiDO-TR-MM openGear 3G-SDI/Multi-Mode LC Fiber Transceiver
OG-FiDO-TR-MM is an openGear 3G-SDI/multi-mode fibre transceiver that supports both 3G-SDI to fibre and fibre to 3G-SDI conversion on the same card. Over multi-mode fibre it allows runs of up to 700 m on OM4 and 300 m on OM3, and fibre is also useful for eliminating ground loop problems. The card is designed for high-density openGear 2RU frames, including AJA's OG-X-FR, and is monitored and controlled with Ross DashBoard software on Windows, macOS and Linux, from a connected computer or over the local network.
Key features
- Inputs: 1x 3G-SDI BNC, 1x multi-mode LC fibre
- Outputs: 1x 3G-SDI BNC, 1x multi-mode LC fibre
- Format agnostic, 150 Mbps to 3 Gbps
- Pass-through of SDI metadata, including HDR
- Automatic detection and reclocking
- Hot-swappable, monitored via Ross DashBoard
Compatibility
- openGear frames OG-X-FR, OG-3-FR and DFR-8321
Specifications
- Fibre: 850 nm; receiver sensitivity 0 to -15 dBm; transmitter power -7 to -2 dBm
- SDI: SMPTE-259/292/424
- Slots: two per card
- Weight: 0.3 kg
- Power: 2.5 W max per card
| Product Condition | New |
|---|---|
| Manufacturer | Aja Video Systems |
| manufacturer code | OG-FIDO-TR-MM |
| Taric Code | 8471804000 |
