Aja Video Systems OG-FS-MINI openGear 3G-SDI Utility Frame Sync, SDI and HDMI Simultaneous Outputs, DashBoard Support
GTIN: 0812321031966
openGear 3G-SDI utility frame synchroniser with simultaneous SDI and HDMI outputs, 10-bit up/down/cross-conversion, 16-channel embedded audio and balanced analogue audio outputs.
Commercial guarantee of durability offered by the producer at no extra cost: 5 years. See the GARAN label

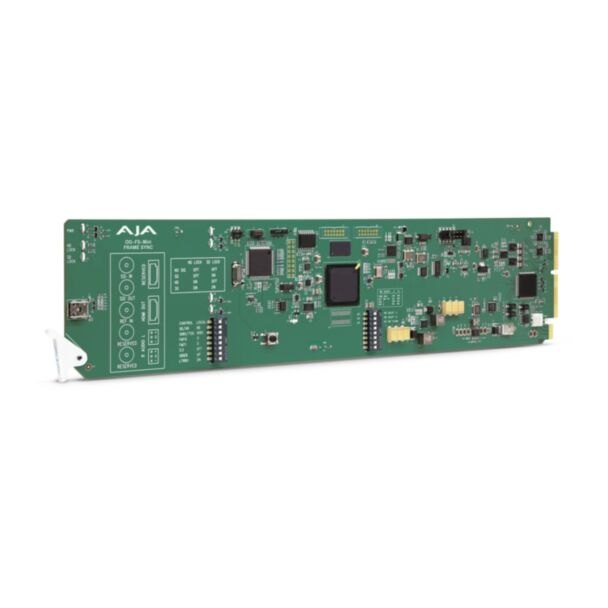

AJA OG-FS-Mini openGear 3G-SDI Utility Frame Sync with SDI and HDMI Outputs
OG-FS-Mini is an openGear utility frame sync that brings AJA's FS frame sync technology to an openGear card, synchronising untimed 3G-SDI, HD and SD video signals to an external reference. It converts a wide range of video formats to the house standard with a 3G-SDI input and output, an HDMI output and two 3-pin terminal block connectors for balanced analogue audio, and also provides 10-bit up, down and cross-conversion.
The untimed input is frame synchronised, processed and routed to both the SDI output for production and the HDMI output for monitoring, while the user selects which two audio channels go to the analogue monitor outputs. Nominal video delay is one frame. OG-FS-Mini supports 3G-SDI Level A only and passes through embedded audio ancillary data only. The card is designed for high-density openGear 2RU frames, including AJA's OG-X-FR, and is monitored and controlled with Ross DashBoard software on Windows, macOS and Linux, from a connected computer or over the local network.
Key features
- Utility frame sync timing input signals to an external reference
- Bi-level and tri-level reference support
- 10-bit video processing, nominal delay of 1 frame
- Loss of input management: Freeze, Black or Mute
- Simultaneous SDI and HDMI outputs
- 16-channel embedded SDI audio I/O, 8-channel HDMI audio output
- 2x 3-pin terminal blocks for balanced analogue audio output
- Frame rate conversion with 3:2 pulldown
- Up, down and cross-conversion between 3G, HD and SD
- AFD input detection and down-convert control
- Rear I/O card included
Compatibility
- openGear frames OG-X-FR, OG-3-FR and DFR-8321
Specifications
- Video input: 1x 3G-SDI BNC, SMPTE-259/292/372/424, 3G-SDI Level A
- Video output: 1x 3G-SDI BNC; 1x HDMI Type A monitor output (HD/SD)
- Formats: 1080p, 1080PsF, 1080i, 720p, 625i, 525i
- Reference: 1080i/1080p/720p tri-level sync, 625i/525i colour black; genlock to external reference or SDI input, or free run
- Audio: 16-channel SDI embedded in/out, 24-bit 48 kHz
- Size: openGear standard form factor, front card and rear card, two slots per card
- Weight: 0.3 kg
- Power: 7 W max per card
- Operating temperature: 0 to 40 °C
| Product Condition | New |
|---|---|
| Manufacturer | Aja Video Systems |
| manufacturer code | OG-FS-MINI |
| Ean | 0812321031966 |
| Taric Code | 8471804000 |
