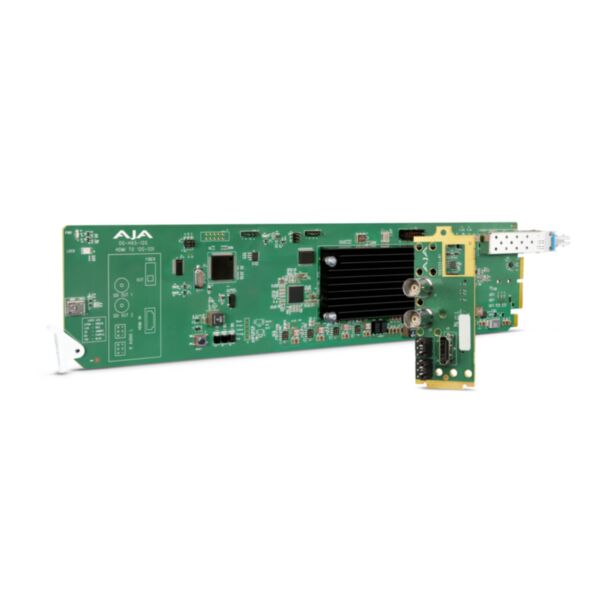

Aja Video Systems OG-HA5-12G-T-ST openGear HDMI 2.0 to 12G-SDI Conversion, with ST Fiber Transmitter
openGear card converting HDMI 2.0 up to 4K 60p to 12G-SDI, with mirrored 12G-SDI outputs plus a single mode ST fibre transmitter for runs up to 10 km; SFP installed.
Commercial guarantee of durability offered by the producer at no extra cost: 5 years. See the GARAN label
AJA OG-HA5-12G-T-ST openGear HDMI 2.0 to 12G-SDI Converter with ST Fiber Transmitter
OG-HA5-12G-T-ST is an openGear HDMI 2.0 to 12G-SDI converter with a single channel 12G fibre transmitter on an ST connector, for extending HDMI 4K/UltraHD audio and video signals up to 10 km over single mode fibre. It ships with the FiberST-1T-12G SFP installed and includes all the functions of the OG-HA5-12G. It converts an HDMI 2.0 input to single link 12G-SDI for 4K/UltraHD, with two 12G-SDI distribution amplifier outputs carrying 8 or 2 channels of embedded audio from the HDMI source. EDID emulation ensures the connected source continuously supplies the preferred video formats. Full 4K (4096x2160) and UltraHD (3840x2160) are converted at up to 50/60 fps, and the equalised HDMI input supports runs up to 30 m with 24 gauge cable.
The card is designed for high-density openGear 2RU frames, including AJA's OG-X-FR, and is monitored and controlled with Ross DashBoard software on Windows, macOS and Linux, from a connected computer or over the local network.
Key features
- Converts up to 4K 60p HDMI 2.0 to 12G-SDI with a second mirrored output
- Single channel 12G fibre ST transmitter, up to 10 km on single mode fibre
- Input up to 60p at 4:4:4, 4:2:2 or 4:2:0
- 12-bit workflow support
- EDID LFR and HFR emulation up to UltraHD 60p
- Two Sample Interleave (2SI) 4K/UltraHD source mapping
- HDR Infoframe reporting, HDR metadata pass-through and optional override
- Simple frame rate conversion between fractional and integer rates
- Embedded audio selectable from HDMI or analogue audio inputs
- Embedded audio pass-through of AC-3, E-AC-3 and DD+ Atmos (JOC)
- Monitor and control via Ross DashBoard software
In the box
- 1x openGear card with FiberST-1T-12G SFP installed
Specifications
- Video input: 1x HDMI Type A, HDMI v2.0b, up to 4096x2160p 60
- Video output: 12G-SDI BNC with mirrored second output, SMPTE 259/292/424/2081/2082, 10-bit or 12-bit
- Fibre output: 1x 12G-SDI ST, SMPTE 297/259/292/424/2081/2082, Tx 1310 nm typ., optical power -5 to 2 dBm
- Formats: 4K, UltraHD, 2K, HD and SD
- Audio input: HDMI embedded 8-channel 24-bit; 2-channel balanced analogue on 2x 3-pin terminal blocks
- Audio output: SDI embedded, 16-channel 24-bit
- Size: openGear standard form factor, front card and rear card, two slots per card
- Weight: 0.3 kg
- Power: 14 W max per card
- Operating temperature: 0 to 40 °C
| Product Condition | New |
|---|---|
| Manufacturer | Aja Video Systems |
| manufacturer code | OG-HA5-12G-T-ST |
| Taric Code | 8471804000 |
