Aja Video Systems OG-ROI-DVI DVI to SDI with Region of Interest Scaling, DashBoard Support
GTIN: 0812321032093
openGear scan converter from DVI and computer signals up to 1920x1200 60 Hz to 3G-SDI, with Region of Interest scaling, frame rate and aspect ratio conversion and DVI loop-through.
Commercial guarantee of durability offered by the producer at no extra cost: 5 years. See the GARAN label

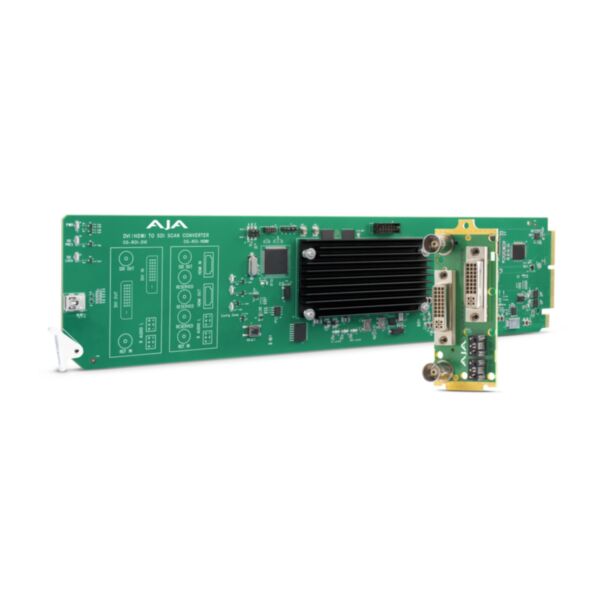

AJA OG-ROI-DVI openGear DVI to 3G-SDI Scan Converter with Region of Interest Scaling
OG-ROI-DVI is an openGear card that converts computer and DVI signals to 3G-SDI baseband video, with Region of Interest image scaling and aspect ratio and frame rate conversion, for bringing computer signals into video workflows. A direct DVI loop-through lets it sit in-line, keeping the connection to a computer monitor while extracting to SDI, and the reference input locks the SDI output for use throughout a production or facility.
In the free Ross DashBoard application a Region of Interest can be selected interactively from the incoming signal, removing interface clutter and menu bars, and scaled to the output resolution with AJA's scaling algorithms. Aspect ratio, image rotation and frame rate conversion are controlled on screen, with DashBoard showing the incoming formats and the output settings. The card is designed for high-density openGear 2RU frames, including AJA's OG-X-FR, and is monitored and controlled with Ross DashBoard software on Windows, macOS and Linux, from a connected computer or over the local network.
Key features
- DVI to 3G-SDI conversion with DVI loop-through
- Scan conversion from computer to video resolutions, EDID emulation
- DVI input formats up to 1920x1200 60 Hz
- SD, HD and 3G output formats
- Region of Interest scaling
- Up, down and cross-conversion
- Aspect ratio and frame rate conversion
- Horizontal/vertical image flip and 90 degree rotation
- Conversion between interlaced and progressive signals
- Loss of input management: Black, Freeze or Mute
- 8-channel embedded audio support
- Genlock: reference input, DVI input or free run
- Hot-swappable, rear I/O card included
Compatibility
- openGear frames OG-X-FR, OG-3-FR and DFR-8321
Specifications
- Video input: 1x DVI, computer signals from 640x480 to 1920x1200 60 Hz, embedded audio up to 8 channels
- Video outputs: 1x loop-through, 1x 3G-SDI BNC, SMPTE-259/292/424
- Audio: 2-channel balanced analogue on 2x 3-pin terminal blocks; SDI embedded output, 24-bit, 2 or 8 channels
- Reference: 1080i/1080p/720p tri-level sync or 625i/525i colour black, 75 ohm terminating
- Size: openGear standard form factor, front card and rear card, two slots per card
- Weight: 0.3 kg
- Power: 8 W max per card
- Operating temperature: 0 to 40 °C
| Product Condition | New |
|---|---|
| Manufacturer | Aja Video Systems |
| manufacturer code | OG-ROI-DVI |
| Ean | 0812321032093 |
| Taric Code | 8471804000 |
