Aja Video Systems OG-ROI-SDI SDI to 3G-SDI and HDMI with Region of Interest Scaling, DashBoard Support
GTIN: 0812321032352
openGear scan converter from SDI up to 1080p 60 to 3G-SDI and HDMI 1.4 outputs, with Region of Interest scaling, frame rate and aspect ratio conversion and SDI loop-through.
Commercial guarantee of durability offered by the producer at no extra cost: 5 years. See the GARAN label

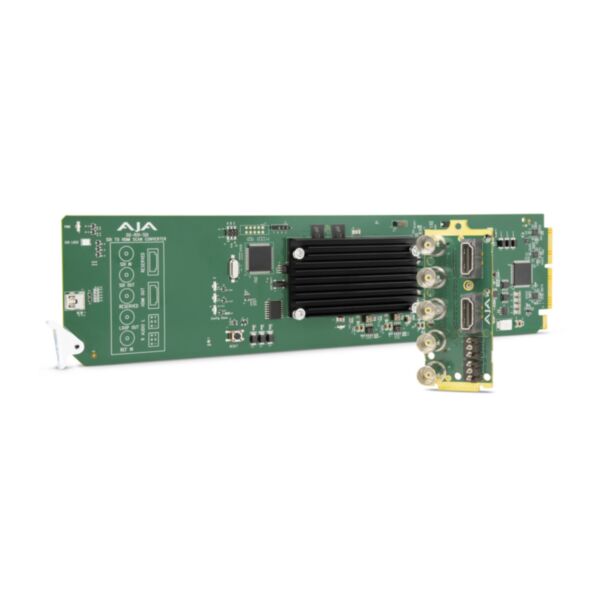

AJA OG-ROI-SDI openGear 3G-SDI to 3G-SDI/HDMI Scan Converter with Region of Interest Scaling
OG-ROI-SDI is an openGear card for scan conversion of SDI inputs to 3G-SDI and HDMI baseband video outputs, with Region of Interest image scaling and aspect ratio and frame rate conversion, for bringing extractions from 3G-SDI sources into 3G-SDI and HDMI feeds. An SDI loop-through passes the source on, and two channels of disembedded audio are available on balanced analogue outputs.
In the free Ross DashBoard application a Region of Interest can be selected interactively from the incoming signal, removing interface clutter and menu bars, and scaled to the output resolution with AJA's scaling algorithms. Aspect ratio, image rotation and frame rate conversion are controlled on screen, with DashBoard showing the incoming formats and the output settings. Several cards in one frame can feed side-by-side displays rotated to portrait mode, using the SDI pass-through to keep the image in sync. The card is designed for high-density openGear 2RU frames, including AJA's OG-X-FR, and is monitored and controlled with Ross DashBoard software on Windows, macOS and Linux, from a connected computer or over the local network.
Key features
- SDI to HDMI/3G-SDI conversion with SDI loop-through
- 3G-SDI and HDMI 1.4 outputs
- SDI input formats up to 1920x1080p 60 Hz
- SD, HD and 3G formats
- Region of Interest scaling
- Up, down and cross-conversion
- Aspect ratio and frame rate conversion
- Horizontal/vertical image flip and 90 degree rotation
- Conversion between interlaced and progressive signals
- Loss of input management: Black, Freeze or Mute
- 8-channel embedded audio support
- 2-channel analogue audio output of disembedded audio
- Genlock: reference input, SDI input or free run
- Hot-swappable, rear I/O card included
Compatibility
- openGear frames OG-X-FR, OG-3-FR and DFR-8321
Specifications
- Video input: 1x 3G-SDI BNC, SMPTE-259/292/424
- Video outputs: 1x 3G-SDI BNC loop-through, 1x 3G-SDI BNC, 1x HDMI Type A v1.4
- Audio: 16-channel 24-bit SDI embedded in/out, 8-channel HDMI out, balanced analogue outputs on 2x 3-pin terminal blocks
- Reference: 1080i/1080p/720p tri-level sync or 625i/525i colour black, 75 ohm terminating
- Size: openGear standard form factor, front card and rear card, two slots per card
- Weight: 0.3 kg
- Power: 7 W max per card
- Operating temperature: 0 to 40 °C
| Product Condition | New |
|---|---|
| Manufacturer | Aja Video Systems |
| manufacturer code | OG-ROI-SDI |
| Ean | 0812321032352 |
| Taric Code | 8471804000 |
