Aja Video Systems T-TAP-PRO-R0 12G-SDI and HDMI v2.0 output 4K/HD with 12/10-bit and HDR (Thunderbolt cable not included)
GTIN: 0812321032536
Compact, silent Thunderbolt 3 device for 4K/UltraHD monitoring up to 60p from Mac, Windows or Linux, with 12G-SDI and HDMI 2.0 outputs, 10/12-bit, HDR (PQ, HLG, HDR10) and headphone output.
Commercial guarantee of durability offered by the producer at no extra cost: 3 years. See the GARAN label

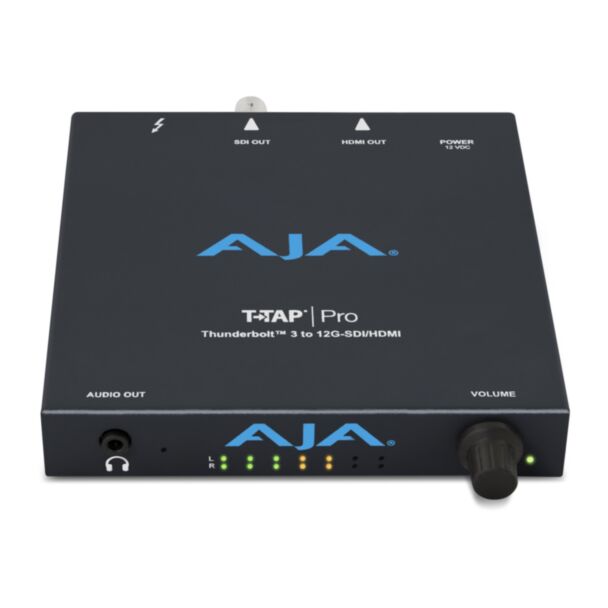

AJA T-TAP Pro Thunderbolt 3 12G-SDI and HDMI 2.0 Output Device
T-TAP Pro is a compact, silent device that delivers mobile monitoring to supported Thunderbolt-enabled systems. With 12G-SDI and HDMI 2.0 connectivity it outputs up to 4K or UltraHD 60p video over a single cable, including deep colour, high frame rate, SDR and HDR, at 10 and 12-bit quality, from any compatible Mac, Windows or Linux computer. Both outputs are active at the same time, so professional SDI monitors or recorders and consumer HDMI monitors can be fed simultaneously.
HDR monitoring supports HLG, PQ and HDR10, with Dolby Vision possible through third-party applications; SDI carries VPID signalling of SDR/HDR characteristics, and AJA Control Room can read HDR metadata in .mov files to set the output automatically. A front 3.5 mm headphone jack with quick-access level control and front-panel audio meters help with audio monitoring. T-TAP Pro works with Apple Final Cut Pro, Adobe Premiere Pro and After Effects, Avid Media Composer and Pro Tools, OBS Studio, Telestream Wirecast and more, and supports Apple silicon. The power supply is included; the Thunderbolt cable is not.
Key features
- 12G-SDI and HDMI 2.0 outputs for up to 4K/UltraHD 60p over a single cable
- SDI output at 12G, 6G, 3G, 1.5G and 270 Mb
- 1x 12G-SDI BNC with 16-channel embedded audio, 1x HDMI 2.0 with 8-channel embedded audio
- 1x Thunderbolt 3 connector, compatible with later versions
- RGB 4:4:4 12-bit, YCbCr 4:2:2 10-bit and HFR workflows
- 12-bit and 10-bit LUT support (.cube)
- PQ, HLG, HDR10 and Dolby Vision support, HDR metadata auto playback detection
- 4K closed captioning support
- Front headphone jack, audio level control and audio meters
- Supports Apple silicon, macOS, Windows and Linux (Ubuntu/Rocky)
In the box
- T-TAP Pro
- Power supply (Thunderbolt cable not included)
Specifications
- SDI output: 12G-SDI (SMPTE-2082), 6G-SDI (SMPTE-2081), 3G-SDI, 1.5G-SDI, 270 Mb
- HDMI output: v2.0, 4K, UltraHD, 2K, HD and SD up to 60p (4:2:2) 10-bit; HDR10 and HLG signalling
- Audio: 16-channel 24-bit SDI embedded, 8-channel 24-bit HDMI embedded, 48 kHz; 2-channel unbalanced analogue on 3.5 mm jack
- Size: 127 x 25.4 x 127 mm
- Weight: 0.23 kg
- Power: 18 W max
- Operating temperature: 0 to 35 °C
| Product Condition | New |
|---|---|
| Manufacturer | Aja Video Systems |
| manufacturer code | T-TAP-PRO-R0 |
| Ean | 0812321032536 |
| Taric Code | 8517620050 |
