Atto ESAH-1244-GT0 interface cards/adapter Internal PCIe
12Gb/s SAS/SATA host adapter for PCIe 4.0 x8 with 4 internal and 4 external ports, mini-SAS HD SFF-8643 and SFF-8644 connectors, low-profile.
Commercial guarantee of durability offered by the producer at no extra cost: 3 years. See the GARAN label

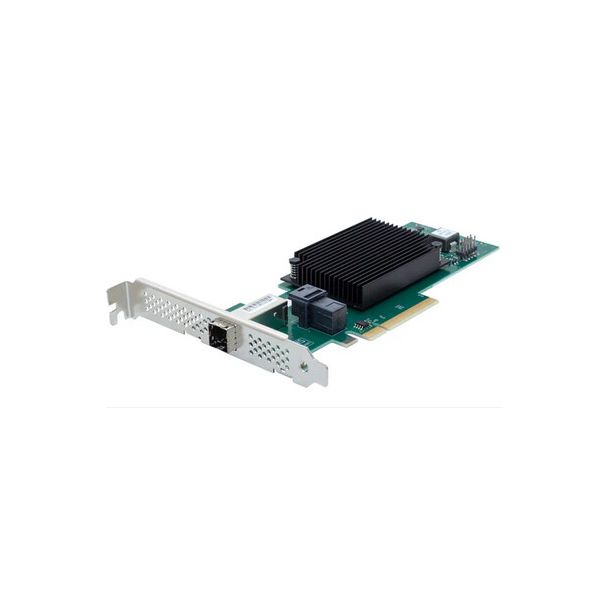

ATTO ExpressSAS H1244 GT 4-Port External / 4-Port Internal 12Gb SAS/SATA Adapter ESAH-1244-GT0
The ATTO ExpressSAS H1244 GT is a 12Gb 4-port internal / 4-port external SAS/SATA to PCIe 4.0 adapter for everyday direct attached storage connectivity where both internal and external connections are needed. It offers a mini-SAS HD (x4) SFF-8644 external connector and a mini-SAS HD (x4) SFF-8643 internal connector, with backward compatibility with 6Gb/s and 3Gb/s targets. It is suited to streaming and transactional storage environments such as enterprise data centers, cloud computing, digital forensics, database applications, video on demand, broadcast and financial trading systems.
Key features
- 4 internal and 4 external ports: mini-SAS HD (x4) SFF-8643 internal and SFF-8644 external
- 12Gb/s SAS/SATA support
- Backward compatible with 6Gb/s and 3Gb/s SAS/SATA targets
- x8 mechanical and electrical PCIe 4.0
- Low-profile form factor
- Supports macOS, Windows, Linux, VMware, FreeBSD and illumos
- NUMA support for high-performance multiprocessor applications
- WriteStop available for specialized data security applications for OEMs
- RoHS compliant
| Product Condition | New |
|---|---|
| Manufacturer | Atto Technology |
| manufacturer code | ESAH-1244-GT0 |
| Essential qualities |
|
| Host interface | SAS |
| Output interface | PCIe |
| Internal | Yes |
